Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge

Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge

    • Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge
    • Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge
  • Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: GQ/F75

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10-15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 60 sets per month for this tubular centrifuge
    Contact Now
    Detailed Product Description
    Drum Diameter: 75mm Drum Volume: 2.2L
    Drum Rotate Speed: 19000r/min Separation Factor: 15700
    Water Flow Capacity: 600l/h Power: 1.5kw
    Inner Dia.: 75mm Motor: 380V,50hz Or As Require
    Material: Stainless Steel Warranty: 12 Months
    Discharge: Manual Condition: New
    Feeding Method: Bottom Feeding

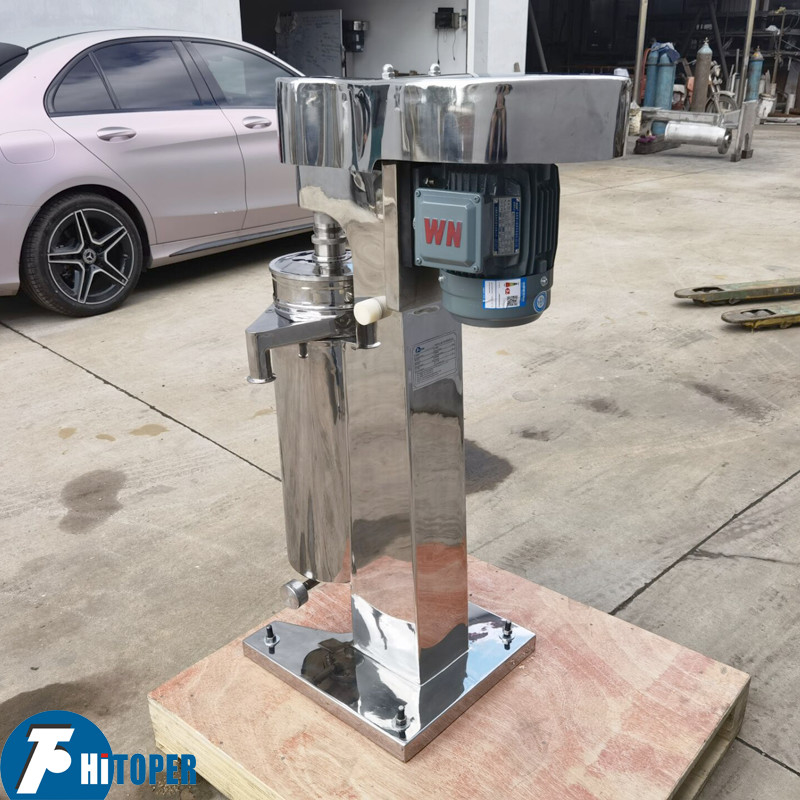

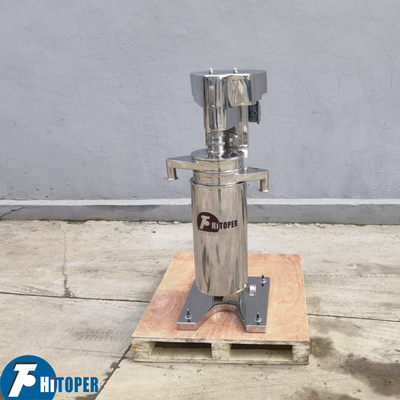

    Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge


    The tubular centrifuge  is a kind of centrifugal equipment with high separation factor, The minium separation particle size is 1 micron.

    It is esprcially used in extraction, enrichment and clarification of material with the following situations: the specific gravity difference between solid phase and liquid phase is small; the partical size is small and solid content is low; the medium is strong corrosive, Mainly used in the solid-liquid separation adn liquid-solid separation for food, chemical, beverage, biological pharmacy, blood products, solid-liquid separation of intermediates and so on, this machine is with the advantages; good separation effect, high yiled, somall cover area, easy operation. etc..


    Function &  Application Of The Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge



    GQ clrify type is mainly uesd for various suspension very difficulty to seaprate, especially suitable for suspension that is low concentration and fine grain, small specific gravity difference between solid phase and liquid phase, soli particles with large density deposit on the inner wall of the drum, gradually forming a sediment layer, which needs artificial discharge after downtime. the clarified fluid to the upper part of the drum is discharged from the drainage mouth.


    Main application: the clarfication for all kinds of liquid medicine, glucose chlorhexidine, malic acid, various oral liquid, Asiatic moonseed rhizome, extraction for coal tar, graphite slag, a varierty of protein, algae, pectin, refining for honey, blood separation, hypha of vaccine, the settlement of various glucose, purification of paint, dye, resin, rubber solution.



    Technical parameters:


    Model Drum

    Nozzle
    diameter
    (mm)

    Productivity
    (water flow)
    (kg/h)

    Power
    (KW)
    Weight
    (kg)
    Inner diameter
    (mm)
    Height
    (mm)
    Volume
    (L)
    Rotary speed
    (r/min)

    Separation
    factor

    GQ45 45 280 0.4 28000 19800 2,3 100 0.55 90
    GQ75 75 450 2.2 19000 15700 4,6 600 1.5 300
    GQ105 105 730 6 16300 15620 6,8 1200 2.2 570
    GQ25 125 730 7.4 15000 18000 5,8,9 1500 3.0 610
    GQ150 142 730 10 14000 15700 8,10,12 2500 3.0 665


     Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge


    Food Industry Pectin Extraction Solid-Liquid 2Phase Separation Stainless Steel Drum Separator Tubular Centrifuge




    Why choose us:


    1. Manufacture experience,
    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).


    2. Technology capacity,
    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.


    3. Our superiority,
    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.


    4. Best after-sales,
    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.





    Toper's Service :



    1.We have professional person on line to advise you the most suitable type of machie according to your requirement.

    2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

    3.Arrange the schedule if you pay a visit to our factory.

    4.Our technical engineer can also to your country guide for the installation ,operation ,solve problems and so on if required.
