| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | GF125 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard plywood case package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 60 sets per month for this tubular centrifuge |
| Drum Diameter: | 125mm | Drum Volume: | 8L |
|---|---|---|---|
| Drum Rotate Speed: | 15000r/min | Separation Factor: | 15750 |
| Water Flow Capacity: | 1500kg/h | Power: | 3.0kw |
| Inner Dia.: | 125mm | Motor: | Customized |
| Shell Material: | Stainless Steel | Function: | Liquid-liquid,solid-liuqid Separtion |
| Weight: | 610kGS | Dimension(l*w*h): | 900X550X1600mm |

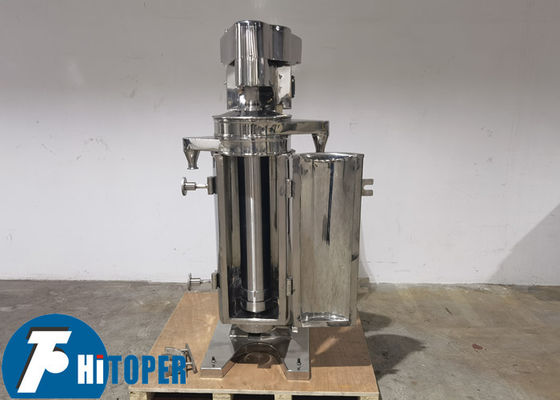

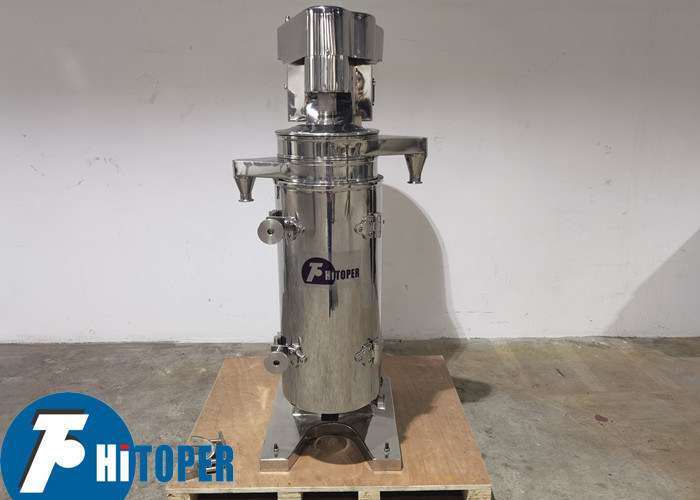

Graphene Separation Tubular Centrifuge With Stainless Steel Drum Dia.125mm
Tubular Centrifuges are designed to separate low percentages (<2%) of suspended solids which are between 1 and 0.001 microns in size, and to separate two immiscible liquids of differing densities.
Tubular Centrifuges operate at high speed, generating up to 15620 gravities of centrifugal force, causing solids to collect inside the smooth bore of the stainless steel tube where they are easily recovered.
Tubular Centrifuges are an excellent replacement for many traditional filter and membrane applications due to their high efficiency (virtually no product loss) and small footprint. Additionally, unlike traditional filters, they never require pre-coating or back-flushing and can never clog.
Working principle of the tubualr centrifuge :
The tubular centrifuge is a high-speed separator with strong separating capacity, as an intermittently operated centrifugal equipment, composed of the main body, driving unit, bowl, liquid collector tray, and feed liquid bearing seat. GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.
Features of the tubular centrifuge :
| agglomerated proteins aluminum silicate animal cell fraction antibiotics bacteria beta naphtholate bio-fuel processing biomass harvesting bioremediation blood fractionation brewer’s yeasts brine sludge calcium carbonate calcium sulphate chromium hydroxide cocoa butter clarification cryoglobulin cutting oil dicalcium phosphate dye stuffs escherichia coli electroplating solutions enzyme harvesting ethanol stillage fat clarification fermentation fish oils flavorings food processing effluents fruit juice clarification fungus gamma globulin |
graphite guanidine nitrate gum arabic herbal extracts hydraulic oil ink insulin tissue iron oxide lactose nano particles paper mill effluent pathogens pharmaceuticals pigments polymers precious metals protein precipitate prothrombin refinery effluent salicylic acid sodium nitrite sodium sulphate spirillum spore collection tallow titanium dioxide varnish clarification vegetable oil refining virus recovery wine clarification yeast |
Basic technical parameters of the tubular centrifuge :
|
Model |
Drum |
Nozzle diameter |
Productivity (water flow) (kg/h) |
Power |
Weight (kg) |
||||
|
Inner diameter |
Height |
Volume |
Rotary speed |
Separation factor |
|||||
| GF45 | 42 | 280 | 0.4 | 28000 | 19800 | 2,3 | 100 | 0.55 | 90 |
| GF75 | 75 | 450 | 2.2 | 19000 | 15700 | 4,6 | 600 | 1.5 | 300 |
| GF105 | 105 | 730 | 6 | 16300 | 15620 | 6,8 | 1200 | 2.2 | 570 |
| GF125 | 125 | 730 | 8 | 15000 | 15750 | 5,8,9 | 1500 | 3.0 | 610 |
| GF150 | 142 | 730 | 10 | 14000 | 15700 | 8,10,12 | 2500 | 3.0 | 665 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
