Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | XG30/870-30U |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 20-30 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 500 sets per month for this membrane filter press |
Filter Area: | 30m2 | Filter Plate Size: | 870*870mm |
---|---|---|---|
Filter Chamber Volume: | 427L | Filter Number: | 23pcs |
Filtrating Pressure: | 0.6Mpa | Motor Power: | 4.0kw |
Nice Function: | Second Squeeze Function To Give A Lower Cake Moisture. | Color: | As You Need. |
Voltage: | 380V/220V /400-450V/Customized | Pressing Type: | Hydraulic Compress |
Filter Cake Discharge Type: | Manual Discharge | Liquid Discharge Type: | Open Flow Or Close Flow |
Conditon: | New | ||
Highlight: | sludge dewatering equipment,sludge filter press |

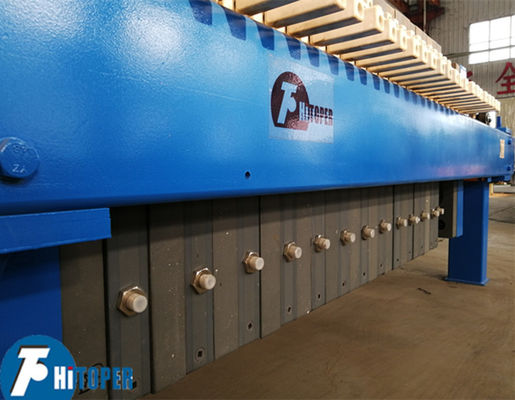

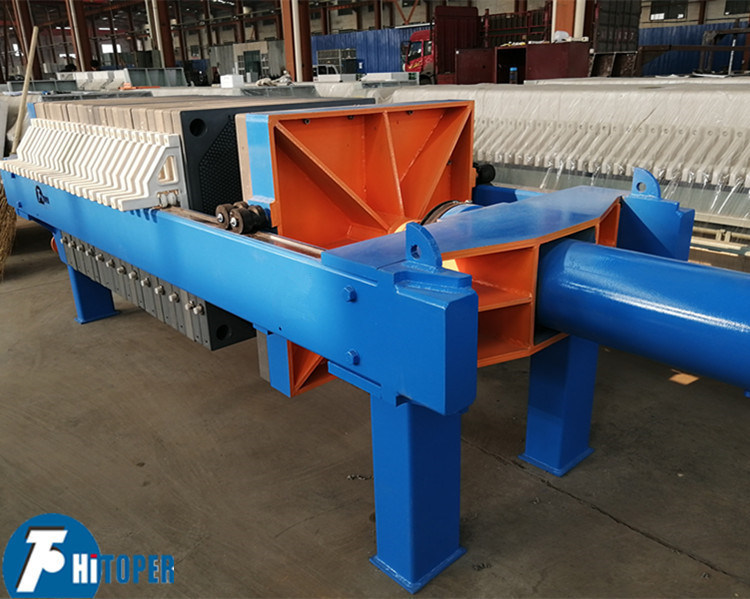

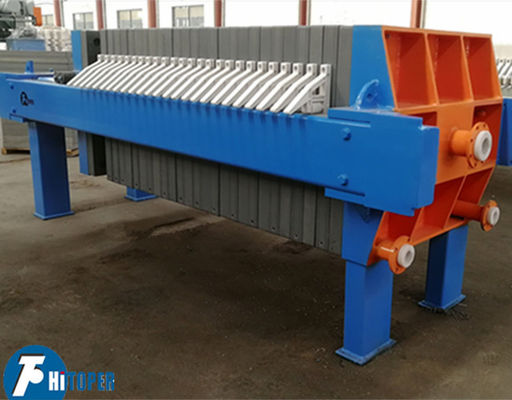

Low Cake Moisture Membrane Filter Press Hydraulic Closure And Open Type
We manufacture membrane filter press matching international standards and quality. With acid and alkali corrosion resistance, non-toxicness and high temperature resistance, good sealing performance and long service life. It has a novel construction, nice appearance, flexible movement, convenient operation and wear well.
Our membrane filter press is gaining increased acceptance because it reduces subsequent processing or disposal costs for filter cake. In many applications the membrane filter press significantly reduces residual moisture content, making this technology attractive for new plants and for upgrading existing facilities. In both cases the careful selection of plate and membrane materials is essential to the successful performance of the process.
Two effective characteristics of this membrane filter press,
Improved Cake Washing: Our membrane chamber filter presses improve cake washing by initiating a low-pressure pre-squeeze before the wash cycle is begun. This pre-squeeze eliminates channeling (cracks and less well-formed areas of the cake) and produces a uniform, homogeneous filter cake and optimum wash efficiency.
Highest Cake Solids: By applying a high pressure squeeze to the filter cake you can produce the final cake with solids content from 50 to 100% greater than can be achieved with conventional filter presses. This is important for both maximum yield, where a high value liquid is your product, or high solids-content, where reduced moisture in the final cake is critical.
Application of this membrane fitler press,
Effluent treatment plants: Textile, Paper, Leather, Jute, Sewages, Industrial and municipal waste water.
Ceramics: Clay, Porcelain, Fine earth, Marble and Granite.
Metallurgy: Electroplating and Electro Polishing, Steel Mill Waste, Nickel, Copper, Zinc Lead, Silver.
Pharma Industries: Antibiotic, Syrup, Intermediates and Bulk Drugs.
Chemical Industries: Basic Chemicals, Organic and Inorganic, Resins
Starch, Enzymes, Pesticides, Activated Clay, Phosphoric compounds, Marine Chemicals.
Dye Stuffs: Pigments, Dyes, Intermediates.
Food Industries: Vegetable Oils, Cane Juice, Food Colors Soups, Distilleries, Dairies and Hotels.
All technical data of our membrane filter press:
Type |
Filter area(m2) | Filter plate size(mm) | Filter cake thickness(mm) | Filter chamber volume(L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H)(mm) |
XG30/870-30U | 30 | 870×870 | 30 | 427 | 23 | 0.6 | 4.0 | 2680 | 3490×1250×1300 |
XG40/870-30U | 40 | 534 | 29 | 3050 | 3880×1250×1300 | ||||
XG50/870-30U | 50 | 676 | 37 | 3465 | 4400×1250×1300 | ||||
XG60/870-30U | 60 | 818 | 45 | 4003 | 4920×1250×1300 | ||||
XG70/870-30U | 70 | 960 | 53 | 4584 | 5240×1250×1300 | ||||
XG80/870-30U | 80 | 1103 | 61 | 5082 | 5760×1250×1300 | ||||
XG50/1000-30U | 50 | 1000×1000 | 665 | 27 | 0.6 | 4.0 | 4352 | 4270×1500×1400 | |
XG60/1000-30U | 60 | 808 | 33 | 4480 | 4770×1500×1400 | ||||
XG70/1000-30U | 70 | 950 | 39 | 5263 | 5130×1500×1400 | ||||
XG80/1000-30U | 80 | 1093 | 45 | 5719 | 5560×1500×1400 | ||||
XG100/1000-30U | 100 | 1378 | 57 | 6555 | 6410×1500×1400 | ||||
XG120/1000-30U | 120 | 1663 | 69 | 7466 | 7260×1500×1400 |
Type |
Filter area (m2) |
Filter plate size(mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H) (mm) |
XGZY80/1250-35U | 80 | 1250×1250 | 35 | 1364 | 29 | 0.6 | 4.0 | 10900 | 4830×1800×1600 |
XGZY100/1250-35U | 100 | 1680 | 37 | 11750 | 5440×1800×1600 | ||||
XGZY120/1250-35U | 120 | 2092 | 45 | 12600 | 6060×1800×1600 | ||||
XGZY150/1250-35U | 150 | 2547 | 55 | 13620 | 6820×1800×1600 | ||||
XGZY160/1250-35U | 160 | 2729 | 59 | 14470 | 7130×1800×1600 | ||||
XGZY200/1250-35U | 200 | 3457 | 73 | 15320 | 8200×1800×1600 | ||||
XGZY240/1250-35U | 240 | 4093 | 89 | 16170 | 9420×1800×1600 | ||||
XGZY250/1250-35U | 250 | 4276 | 91 | 17020 | 9570×1800×1600 | ||||
XGZY200/1500-35U | 200 | 1500×1500 | 3922 | 49 | 7.5 | 26120 | 7140×2200×2000 | ||
XGZY250/1500-35U | 250 | 4463 | 61 | 26930 | 7730×2200×2000 | ||||
XGZY300/1500-35U | 300 | 5274 | 73 | 28160 | 8720×2000×1820 | ||||
XGZY350/1500-35U | 350 | 6221 | 85 | 29600 | 10110×2000×1820 | ||||
XGZY400/1500-35U | 400 | 7032 | 99 | 31500 | 11260×2000×1820 | ||||
XGZY450/1500-35U | 450 | 7844 | 111 | 33400 | 12250×2000×1820 | ||||
XGZY500/1500-35U | 500 | 8791 | 123 | 33380 | 13240×2000×1820 | ||||
XGZY600/2000-40U | 600 | 2000×2000 | 40 | 12000 | 85 | 54164 | 13030×3520×2500 | ||
XGZY700/2000-40U | 700 | 14000 | 99 | 58300 | 14390×3000×2500 | ||||
XGZY800/2000-40U | 800 | 16000 | 107 | 624460 | 15770×3000×2500 | ||||
XGZY900/2000-40U | 900 | 18000 | 127 | 66620 | 17150×3000×2500 | ||||
XGZY1000/2000-40U | 1000 | 20000 | 141 | 70780 | 18530×3000×2500 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
