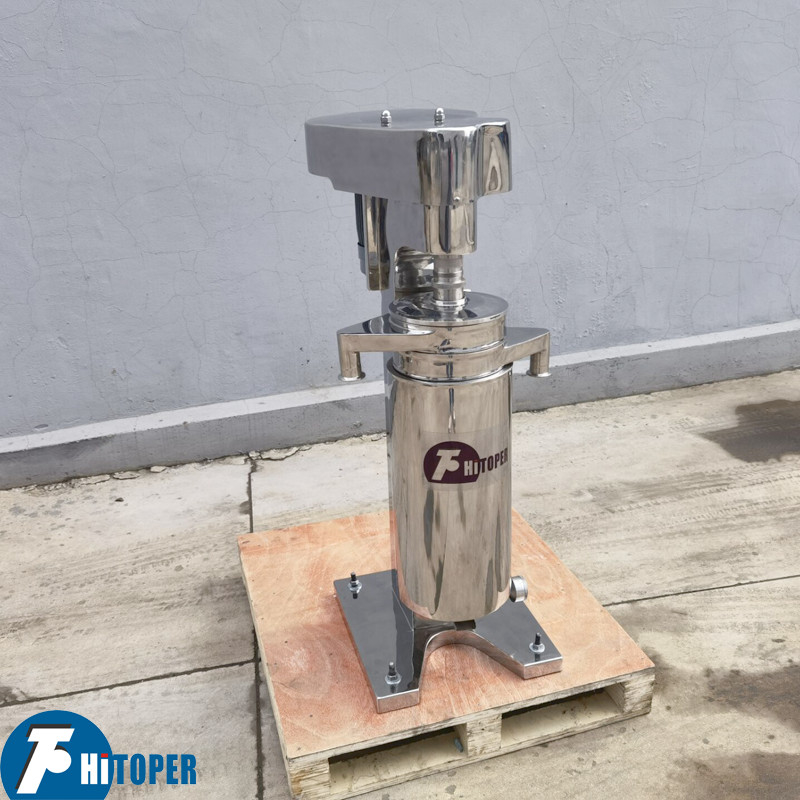

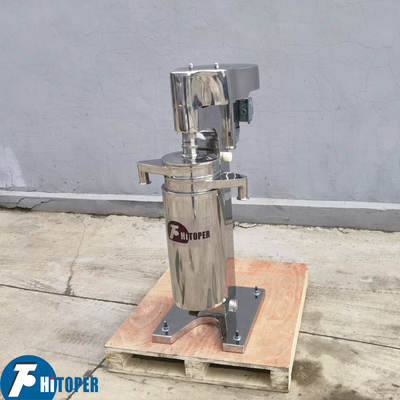

Precision Tubular Centrifuge for Citrus Essential Oils Extraction 1.5kw Separator

Precision Tubular Centrifuge for Citrus Essential Oils Extraction 1.5kw Separator

    • Precision Tubular Centrifuge for Citrus Essential Oils Extraction 1.5kw Separator
    • Precision Tubular Centrifuge for Citrus Essential Oils Extraction 1.5kw Separator
  • Precision Tubular Centrifuge for Citrus Essential Oils Extraction 1.5kw Separator

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: GF75

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10-15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 60 sets per month for this tubular centrifuge
    Contact Now
    Detailed Product Description
    Drum Diameter: 75mm Drum Volume: 2.2L
    Drum Rotate Speed: 19000r/min Separation Factor: 15700G
    Water Flow Capacity: 600kg/h Power: 1.5kw
    Motor: 380V,50hz Or As Require Material: 304 Or 316L Stainless Steel
    Warranty: 1 Year Operation: Semi-automatic
    Application: Liquid Liquid Solid Separation Condition: New

    Precision Tubular Centrifuge for Citrus Essential Oils Extraction 1.5kw Separator





    Tubular Centrifuges are designed to separate low percentages (<2%) of suspended solids which are between 1 and 0.001 microns in size, and to separate two immiscible liquids of differing densities. Tubular Centrifuges operate at high speed, generating up to 15620 gravities of centrifugal force, causing solids to collect inside the smooth bore of the stainless steel tube where they are easily recovered. Tubular Centrifuges are an excellent replacement for many traditional filter and membrane applications due to their high efficiency (virtually no product loss) and small footprint. Additionally, unlike traditional filters, they never require pre-coating or back-flushing and can never clog.





    More Detail Information About The GF Series Separtion Type Tubular Centrifuge



    GF tubular centrifuge is mainly used for various industrial suspension very difficulty to separate, especially suitable for liquid suspension with small specific gravity difference between solid phase and liquid phase, and liquid-solid separation with few impurities, liquid with larger density deposit on the outer wall of the drum,liquid with smaller density deposit on the inner wall of the drum. Both of them get tobe the upper part of the drum to discharge. solid particles deposit on the drum wall to be artificially discharged after downtime.



    Main application: transformer oil, turbine oil, lubricating oil, fuel oil, dye, grease, saponification, all kinds of powder materials, Span- 80 material liquid purification, various oral liquid, various medical liquid, the separation of contenders 0'(plasma separation of biological medicines and plasma sxtraction for animal blood). cooking oil, Cai Pan soaking liquid, tea polyphenol, soybean phospholipid concentrate refine, oil-water separation and wastewater treatment,etc.





    Typical Applications Of The Tubualr Centrifuge :

    agglomerated proteins
    aluminum silicate
    animal cell fraction
    antibiotics
    bacteria
    beta naphtholate
    bio-fuel processing
    biomass harvesting
    bioremediation
    blood fractionation
    brewer’s yeasts
    brine sludge
    calcium carbonate
    calcium sulphate
    chromium hydroxide
    cocoa butter clarification
    cryoglobulin
    cutting oil
    dicalcium phosphate
    dye stuffs
    escherichia coli
    electroplating solutions
    enzyme harvesting
    ethanol stillage
    fat clarification
    fermentation
    fish oils
    flavorings
    food processing effluents
    fruit juice clarification
    fungus
    gamma globulin
    graphite
    guanidine nitrate
    gum arabic
    herbal extracts
    hydraulic oil
    ink
    insulin tissue
    iron oxide
    lactose
    nano particles
    paper mill effluent
    pathogens
    pharmaceuticals
    pigments
    polymers
    precious metals
    protein precipitate
    prothrombin
    refinery effluent
    salicylic acid
    sodium nitrite
    sodium sulphate
    spirillum
    spore collection
    tallow
    titanium dioxide
    varnish clarification
    vegetable oil refining
    virus recovery
    wine clarification
    yeast





    Working Principle Of The Tubualr Centrifuge :


    The suspension is fed through the bottom of the machine and introduced into the bowl which has one outlet at the top. The clarified liquid comes out from the top outlet and leaving the solids deposit on the bowl's wall. When the bowl full accumulated with solids, there will be no liquid comes out, the machine shall be power off. Solid particles with larger density deposit on the inner wall of drum, gradually forming a sediment layer, which needs artificial discharge after downtime, the clarified fluid to the upper part of the drum is dischrged from the drainage mounth.





    Technical parameters Of The Tubualr Centrifuge:



    Model

    Drum

    Nozzle

    diameter
    (mm)

    Productivity

    (water flow)

    (kg/h)

    Power
    (KW)

    Weight
    (kg)

    Inner

    diameter
    (mm)

    Height
    (mm)

    Volume
    (L)

    Rotary speed
    (r/min)

    Separation

    factor

    GF45 45 280 0.4 28000 90 2,3 100 0.55 90
    GF75 75 450 2.2 19000 300 4,6 600 1.5 300
    GF105 105 730 6 16300 480 6,8 1200 2.2 570
    GF125 125 730 7.4 15000 520 5,8,9 1500 3.0 610
    GF150 142 730 10 14000 550 8,10,12 2500 3.0 665





    Precision Tubular Centrifuge for Citrus Essential Oils Extraction 1.5kw Separator



    Precision Tubular Centrifuge for Citrus Essential Oils Extraction 1.5kw Separator





    Our services



    1.We have professional person on line to advise you the most suitable type of machie according to your requirement.

    2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

    3.Arrange the schedule if you pay a visit to our factory.

    4.Our technical engineer can also to your country guide for the installation ,operation ,solve problems and so on if required.
