| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | GQ75 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 60 sets per month for this tubular centrifuge |
| Drum Diameter: | 75mm | Drum Volume: | 2.2L |
|---|---|---|---|
| Drum Rotate Speed: | 19000r/min | Separation Factor: | 15200 |
| Water Flow Capacity: | 600L/H | Power: | 1.5kw |
| Motor: | 380V,50hz Or As Require | Material: | 304 Or 316L Stainless Steel |
| Warranty: | 1 Year | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
| Function: | Solid-liquid Separation | Certificate: | CE |
| Conditon: | New |

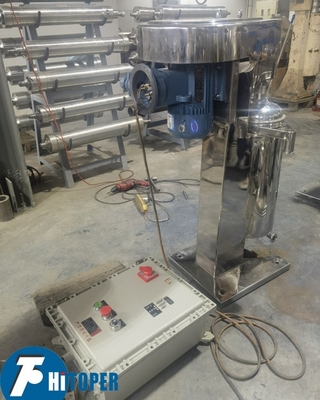

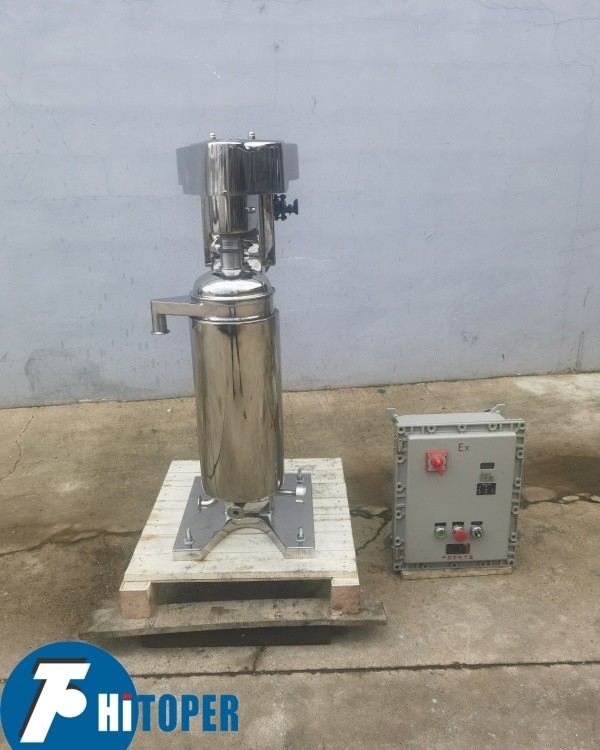

Brief introduction of the Stainless Steel Industrial Centrifugal Separator Machine Algae Biomass Centrifuge 2 Phase Tubular Centrifuge
Tubular centrifuge is a kind of centrifugal equipment with high separation factor.The minimum separation particle size is 1micron.
It is especially used in extraction ,enrichment and clarification of material with the following situations:the specific gravity difference between solid phase and liquid phase is small;the patrical size is samll and solid content is low;the medium is strong corrosive.Mainly used in the solid-liquid separation and liquid-liquid-solid separation for food ,chemical,beverage,biological ,blood products and so on.
The tubular centrifuge is finding an increasing number of applications because of the high centrifugal fields that may be used (15,000g near the periphery in some cases).
A few typical uses are as follows:
Tubular centrifuge is mainly divided into clarify series GQ and separation series GF.
GQ clarify series tubular centrifuge :
The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences.
The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted via the control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off
the centrifuge, and manually remove the rotor for slag cleaning;
After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.
Main application of the GQ clarify series tubular centrifuge
The clarification for all kinds of liquid glucose chlorhexidine ,malic acid,various oral liquid,Asiatic moonseed
Extration for coal tar,graphite slag,a variety of protein,algae,pectin
Refining for honey
Blood separation ,hypha of vaccine
The settle ment of various glucose
Purification of paint,dye,resin,rubber solution
Basic technical data of the stainless steel tubular centrifuge :
| Model | 45 | 75 | 105 | 125 | 150 | |
| bowl | Diameter(mm) | 45 | 75 | 105 | 125 | 142 |
| Speed(r/m) | 10000-28000 | 19000 | 16300 | 15000 | 13400 | |
| Volume(L) | 0.4 | 2.2 | 6 | 8 | 10 | |
| Separation factor | 19800 | 15200 | 15620 | 15600 | 14300 | |
| Diameter of nozzle(mm) | 3,5 | 3,5,7 | 4,6,8 | 4,6,8 | 4,6,8 | |
| Pressure(Mpa) | >0.05 | >0.05 | >0.05 | >0.05 | >0.05 | |
| Maximum throughput based on water(L/H) | —100 | 600 | 1200 | 1500 | 2500 | |
| Motor(KW) | 0.4 | 1.5 | 2.2 | 3 | 3 | |
| Weight(KG) | 90 | 300 | 470 | 500 | 520 | |
|
Dimension (mm×mm×mm) |
500x420x760 | 450×760×1120 | 600×900×1600 | 600×900×1600 |
600×900×1600 |
|
