Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | GF125 |
Minimum Order Quantity: | 1SET |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard plywood case package. |
Delivery Time: | 10-15 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 60 sets per month for this tubular centrifuge |
Drum Diameter: | 125mm | Drum Volume: | 8L |
---|---|---|---|
Drum Rotate Speed: | 15000r/min | Separation Factor: | 15750 |
Water Flow Capacity: | 1500kg/h | Power: | 380V/50HZ/3PHASE |
Inner Dia.: | 125mm | Machine Type: | Tube Type Centrifugal Separator |
Warranty: | 12 Months | Contact Parts Material: | Stainless Steel |
Feeding Method: | Manual Or Pump Feeding | Weight: | 610KGS |
Application: | Food,beverage,chemcial,pharmacy,medicine |
3Phase Oil-Water-Impurities Separation Tubular Centrifuge,Dia.125mm SS Drum Separator
Tubular bowl centrifuge is a kind of centrifugal equipment with high separation factor.The minimum separation particle size is 1micron.
It is especially used in extraction ,enrichment and clarification of material with the following situations:the specific gravity difference between
solid phase and liquid phase is small;the patrical size is samll and solid content is low;the medium is strong corrosive.
Mainly used in the solid-liquid separation and liquid-liquid-solid separation for food ,chemical,beverage,biological pharamacy,blood products,
solid-liquid separation of intermediates and so on.
This machine has the advantages like: good separation effect,high yield,small cover area,easy operation etc.
Tubular centrifuge is mainly divided into clarify series GQsolid-lliquid treatmrnt) and separation series GF(liquid-liquid,liquid-liquid-solid treamtent).
Liquid-liquid separation function of the tubular centrifuge
OPERATION: Up to 15620 gravities of force drive the heavier fluid toward the tube wall while the lighter fluid is displaced to the center of the tube.
FLOW: Fluid flow in and out of the centrifuge is continuous. In the illustration the heavier phase discharges through the left outlet and the lighter fluid discharges through the right outlet. If any solids are present they will be collected on the tube wall and may be removed periodically.
CAPACITY: Depending on the size of the centrifuge and fluid characteristics, flow rates over 1,000 gallons per hour are achievable
Working principle of the tubualr centrifuge :
The tubular centrifuge is a high-speed separator with strong separating capacity, as an intermittently operated centrifugal equipment, composed of the main body, driving unit, bowl, liquid collector tray, and feed liquid bearing seat. GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.
Basic technical parameters of the tubular centrifuge :
Model |
Drum |
Nozzle diameter |
Productivity (water flow) (kg/h) |
Power |
Weight (kg) |
||||
Inner diameter |
Height |
Volume |
Rotary speed |
Separation factor |
|||||
GF45 | 45 | 280 | 0.4 | 28000 | 19800 | 2,3 | 100 | 0.55 | 90 |
GF75 | 75 | 450 | 2.2 | 19000 | 15700 | 4,6 | 600 | 1.5 | 300 |
GF105 | 105 | 730 | 6 | 16300 | 15620 | 6,8 | 1200 | 2.2 | 570 |
GF125 | 125 | 730 | 8 | 15000 | 15750 | 5,8,9 | 1500 | 3.0 | 610 |
GF150 | 142 | 730 | 10 | 14000 | 15700 | 8,10,12 | 2500 | 3.0 | 665 |

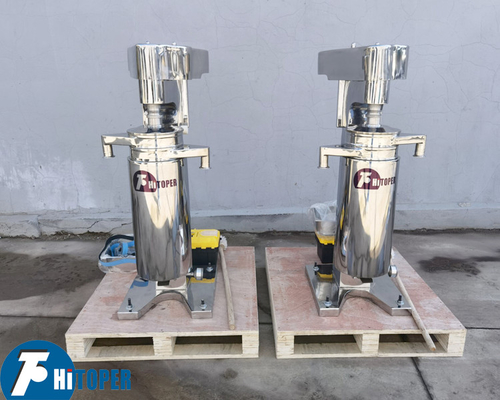

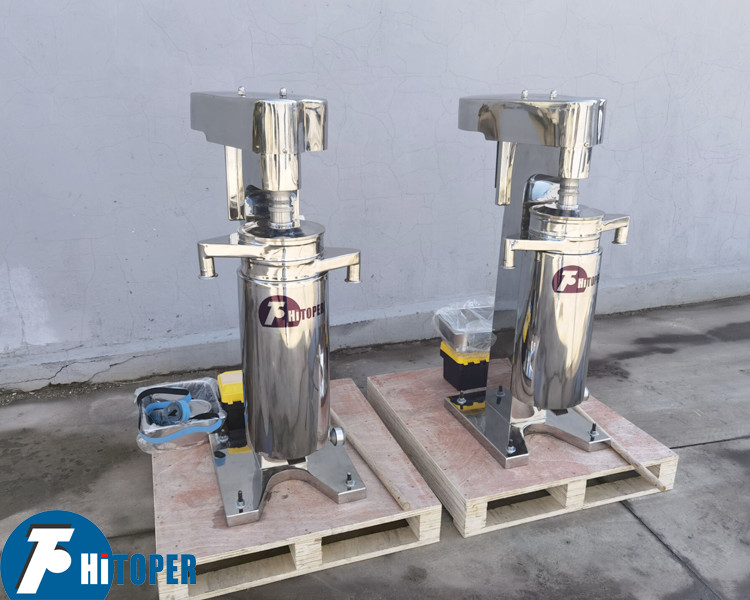

Package and shipping for the tubular bowl centrifuge
Toper‘s Service :
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.Our technical engineer can also to your country guide for the installation ,operation ,solve problems and so on if required.
