Stable Running Industrial Centrifuge for Chemical, Light Industry & Pharmacy Applications

Stable Running Industrial Centrifuge for Chemical, Light Industry & Pharmacy Applications

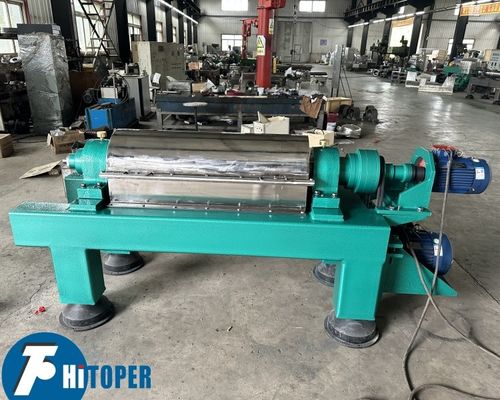

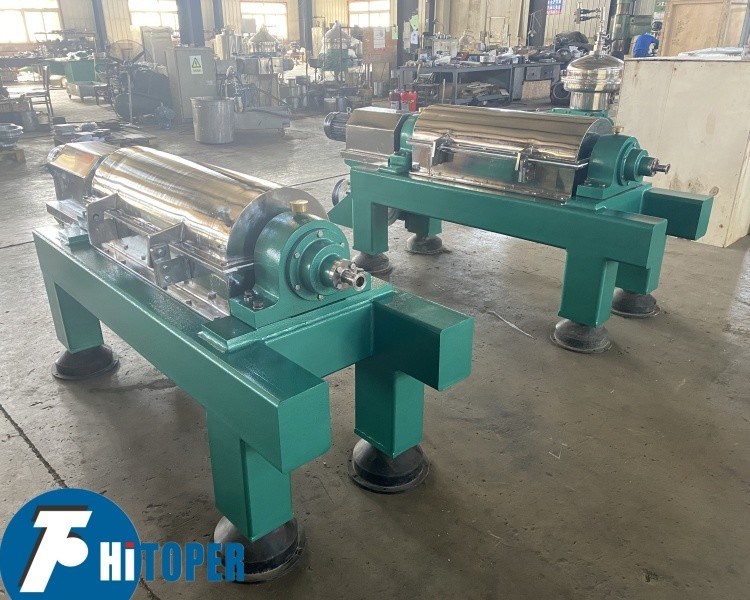

Lw series decanter centrifuge is the mechanical equipment used for continuously separation the materials in the suspension with density difference, by the principle of centrifugal settling.It enjoys such features as compact structure, continuous operation, smooth running, strong adaptability to the separation material, large handling capacity, convenient maintenance, etc.





Working principle of the Stable Running Industrial Centrifuge for Chemical, Light Industry & Pharmacy Applications



The basic principle is the drum and the spiral feeder rotate in the same direction but with a certain speed difference; The material is led into the feeding spiral inner cylinder via the feeding pipe and after speeding up, enters the drum; Under the action of the centrifuge force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; The solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and after dehydration in the drying area, is discharged under full-speed running.





Features of the Stable Running Industrial Centrifuge for Chemical, Light Industry & Pharmacy Applications



1. Screw propeller made and Bowl made of SS304 material, bearing adopt SKF.

2. Electric element adopt SIMENS or Schneider.

3. Painting: Heavy anti-corrosion paint adopt national, Fine polish.

4. Electronic Motor is from SIMENS or ABB motor.

5. Electronic control system is from Top brand explosion - proof electronic switch.





Range of applications



The main application of decanter centrifuges is to separate large amounts of solids from liquids on a continuous basis. They are also used to wash and dry various solids in industry, such as polystyrene beads, clarify liquids and concentrate solids.



Below table displays various examples of the utilisation of decanter centrifuges in various industries.

Industry	Examples
Food processing	Edible animal fat Animal protein  Protein recovery Plant oils such as olive oil and vegetable oil  Wine (clarification) Fruit, berries and vegetable juice Soy,protein  Dairy (recovery of lactose ,whey fines and cheese fines) Coffee and tea Pectin
Petrochemical/oil	Refining Dewatering  Oil well drilling Lubricating oil additives Waste oil stream recycling
Waste recycling	Municipal wastewater Cleaning of wash water
Fish processing	Fish meal Fish oil
Chemical	Herbal medicines Chemical extraction Ethanol
Mineral processing	Bentonite and titanium dioxide manufacturers Kaolin clay and calcium carbonate processing
Organic chemical industry	Organic intermediate and end products
Polymer industry	Thermoplastics for example PVC, synthetic rubber and fibres
Inorganic chemical industry	Bleaching agents Acids Silica products Fertilisers



Basic technical parameters:



Model	Structure type	Rotating drum		Rotating speed (r/min)	Separation factor	Processing capacity of admixtures (m3/h)	Motor power (KW)	Total weight (kg)
		Dia. (mm)	Length-to-diameter ratio
LW220	Counter flow type	930	4.22	4800	2835	0-1	7.5	1500
LW300	Counter flow type	1200-1350	4-4.5	4200	3000	1-3	11	1500-1800
LW355	Counter flow type	1250-1600	2.42-4.51	3800	3200	2-8	15	1800-2000
LW400	Counter flow type	1200-1800	3-4.5	3400	3000	5-10	30	2000-2800
LW450	Counter flow type	1350-2000	3-4.5	3400	3000	10-20	30	2800-3500
LW530	Counter flow type	2280	4	2700	2150	20-30	45	3500-400











































Our service:



1. We have professional person on line to advise you the most suitable type of machie for according to your requirement.

2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

3. Arrange the schedule if you pay a visit to our factory.





More details information about our corporation --Toper



1. About Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider

of filter and separation equipment.

2. Global service
Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas

excluding China mainland.
Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey,

Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli,

Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland,

Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina,

Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.
Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the

world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.

3. Products
Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.
