| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | LW355X1600 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this decanter centrifuge |
| Drum Dia.: | 355mm | Drum Length: | 1600mm |
|---|---|---|---|
| Speed: | 3800r/min | Main Motor: | 15kw |
| Secondary Motor: | 7.5kw | Drive Type: | Double Motor And Frequency Conversion |
| Material: | Stainless Steel | Noise: | ≤85db(A) |
| Feeding Method: | Pump Feeding | Function: | Purification,extraction,concentration,clarification |
| Discharge Method: | Automatic | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
| Voltage: | 380V/220V /400-450V/Customized | Color: | Green Or Customized |
| Certificate: | CE | ||
| Highlight: | sludge decanter centrifuge,decanter centrifuge for sludge dewatering |
||

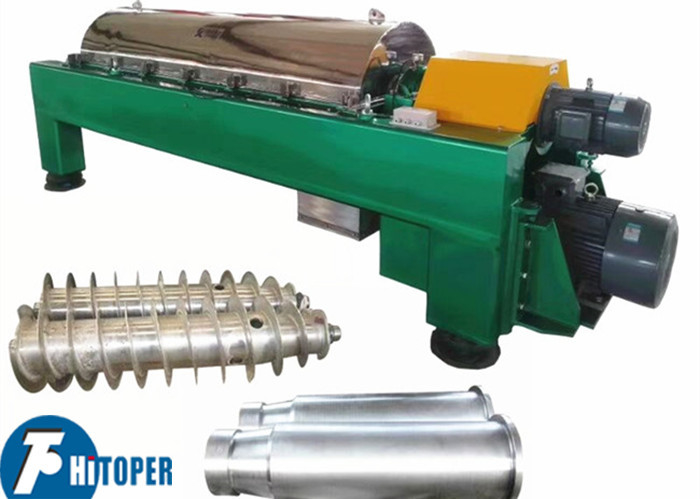

High Speed Horizontal Industrial Decanter Centrifuge Juice Separation
Decanter centrifuge uses the centrifugal sedimentation to separate the suspension, uses the spiral to unloading material.It is continuously charging, separating, discharging at full speed.It is used in the suspension(in 0.0005~2mm, concentration 2-40%) solid-and-liquid separation, size classification, liquid clarification .Especially ,it issuitable for the suspension separation that with difficult in filter cloth recycling, and the material with large concentration and big size range.
Operating principle
The operating principle of a decanter centrifuge is based on separation via buoyancy. Naturally, a component with a higher density would fall to the bottom of a mixture, while the less dense component would be suspended above it.
A decanter centrifuge increases the rate of settling through the use of continuous rotation, producing a G-force equivalent to between 1000 and 4000 G's. This reduces the settling time of the components by a large magnitude, whereby mixtures previously having to take hours to settle can be settled in a matter of seconds using a decanter centrifuge. This form of separation enables more rapid and controllable results.
Application:
1. The centrifuge is applicable to the separating of the suspension containing solid-phase granules with the diameter greater than 0.005mm and with the concentration being 2-40%.
2. It has found wide applications in such trades as chemical, light industry, pharmacy, food, environmental protection, etc. for example: adipic acid, alum, aluminum hydroxide, ammonium hydrogen carbonate, ammonium chloride, ammonium nitrate, ammonia sulfate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulfate, benzene, benzene carbonic acid, blood products, blue vitriol, borax, boric acid, pot ale, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, fiber, chrome pillow, clay, methylcellulose, coal flotation waste, corundum, velveteen, corn embryo, starch, coconut milk, food oil, fish processing, salt cake, mirabilite, hops, pesticide, diatomite, herbicide, tartaric acid, sodium sulfate, sodium phosphate, sodium nitrate, charcoal black, etc.
Features of the decanter centrifuge :
1.Process flexibility
Constant separation results, even at fluctuations in the volumetric flow, the process conditions, or the product characteristics
2.Low space requirement
Compact design system, therefore no extra space required for peripheral equipment
3.Low operating costs
Operating consumables (e.g. filter cloths) are not required. No costly downtime for changing consumables.
4.Simple installation
integration of all necessary functions in one system (e.g. no need for peripheral equipment)
Basic technical parameters:
| Model | Structure type | Rotating drum | Rotating speed (r/min) | Separation factor | Processing capacity of admixtures (m3/h) | Motor power (KW) |
Total weight (kg) |
|
| Dia. (mm) | Length-to-diameter ratio | |||||||
| LW220 | Counter flow type | 930 | 4.22 | 4800 | 2835 | 0-1 | 7.5 | 1500 |
| LW300 | Counter flow type | 1200-1350 | 4-4.5 | 4200 | 3000 | 1-3 | 11 | 1500-1800 |
| LW355 | Counter flow type | 1250-1600 | 2.42-4.51 | 3800 | 3200 | 2-8 | 15 | 1800-2000 |
| LW400 | Counter flow type | 1200-1800 | 3-4.5 | 3400 | 3000 | 5-10 | 30 | 2000-2800 |
| LW450 | Counter flow type | 1350-2000 | 3-4.5 | 3400 | 3000 | 10-20 | 30 | 2800-3500 |
| LW530 | Counter flow type | 2280 | 4 | 2700 | 2150 | 20-30 | 45 | 3500-4000 |
