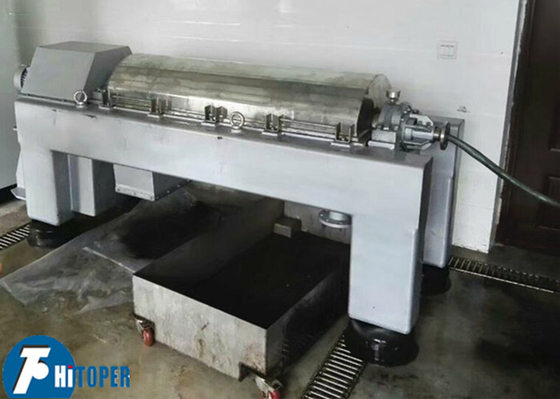

Dia.355mm Drum Continuous Industrial Decanter Centrifuge,3800rpm High Speed Separator

Dia.355mm Drum Continuous Industrial Decanter Centrifuge,3800rpm High Speed Separator



The continuous operation centrifugal separation stainless steel dehydrator make use of the principle of sedimentation to separate suspension of solid - liquid continuously.The solid phase discharing by the spiral contiunously.This machine is a continuous and efficient solid - liquid separation equipment, has the following technical features:

1. Screw propeller made and Bowl made of SS304 material, bearing adopt SKF.

2. Electric element adopt SIMENS or Schneider.

3. Painting: Heavy anti-corrosion paint adopt national, Fine polish.

4. Electronic Motor is from SIMENS or ABB motor.

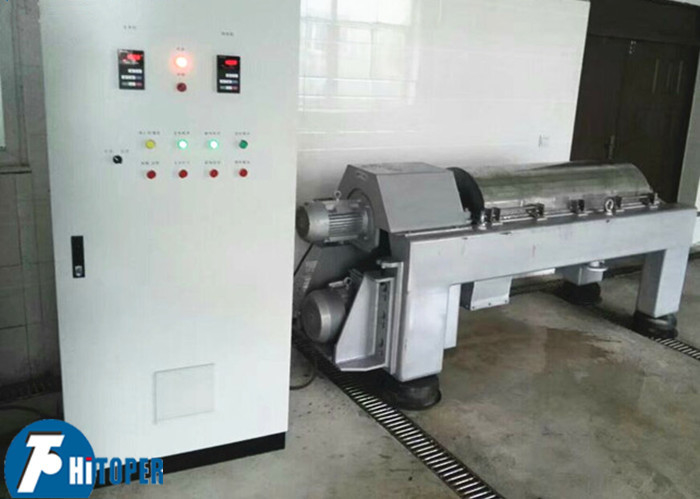

5. Electronic control system is from Top brand explosion - proof electronic switch.





Working principle:



The feed product is pumped into the decanter centrifuge through the inlet. Feed goes into a horizontal bowl, which rotates.

The bowl is composed of a cylindrical part and a conical part. The separation takes place in the cylindrical part of the bowl.

The fast rotation generates centrifugal forces up to 4000 x g. Under these forces, the solid particles with higher density are collected and compacted on the wall of the bowl. A scroll (also screw or screw conveyor) rotates inside the bowl at a slightly different speed.

This speed difference is called the differential speed. This way the scroll is transporting the settled particles along the cylindrical part of the bowl and up to the end conical part of the bowl.

At the smallest end of the conical part of the bowl, the dewatered solids leave the bowl via discharge opening. The clarified liquid leaves through a paring disc (or internal centripetal pump).





Application of the industrial stainless steel decanter centrifuge:



Because of good adaptation to the material ,it can be widely used in chemical industry, light industry, food, paper, mining and other industrial sectors for the suspension of solid phase weight concentration of ≤10% (or 24 hours after free-falling volume concentration of ≤50%), solid particle equivalent diameter of the liquid-solid ≥0.005 ~ 2mm ,severe difference ≥0.05 g / cm3 suspension of liquid-solid separation.



Below table displays various examples of the utilisation of decanter centrifuges in various industries.

Industry	Examples
Food processing	Edible animal fat Animal protein Protein recovery Plant oils such as olive oil and vegetable oil Wine (clarification) Fruit, berries and vegetable juice Soy protein Dairy (recovery of lactose, whey fines and cheese fines) Coffee and tea Pectin
Petrochemical/oil	Refining Dewatering Oil well drilling Lubricating oil additives Waste oil stream recycling
Waste recycling	Municipal wastewater Cleaning of wash water
Fish processing	Fish meal Fish oil
Chemical	Herbal medicines Chemical extraction Ethanol
Mineral processing	Bentonite and titanium dioxide manufacturers Kaolin clay and calcium carbonate processing
Organic chemical industry	Organic intermediate and end products
Polymer industry	Thermoplastics for example PVC, synthetic rubber and fibres
Inorganic chemical industry	Bleaching agents Acids Silica products Fertilisers





Basic technical parameters:



Model	Structure type	Rotating drum		Rotating speed (r/min)	Separation factor	Processing capacity of admixtures (m3/h)	Motor power (KW)	Total weight (kg)
		Dia. (mm)	Length-to-diameter ratio
LW220	Counter flow type	930	4.22	4800	2835	0-1	7.5	1500
LW300	Counter flow type	1200-1350	4-4.5	4200	3000	1-3	11	1500-1800
LW355	Counter flow type	1250-1600	2.42-4.51	3800	3200	2-8	15	1800-2000
LW400	Counter flow type	1200-1800	3-4.5	3400	3000	5-10	30	2000-2800
LW450	Counter flow type	1350-2000	3-4.5	3400	3000	10-20	30	2800-3500
LW530	Counter flow type	2280	4	2700	2150	20-30	45	3500-4000





Our service:



Pre-Sales Service

1. Product consulting and design service.

2. Professional production team.

3. Modernize Factory.

Sale Service

1. Quality Control Service.

2. Report, video data of the production

3. Inspection process to our customer

4. To ensure the delivery time.

After-Sales Service

1. Engineer Technical support.

2. Regular spot visit.
