| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | LWS355X1600 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Shrink-wrapped and export standard plywood case package |
| Delivery Time: | 30-40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this decanter centrifuge |
| Drum Dia.: | 355mm | Drum Length: | 1600mm |
|---|---|---|---|
| Speed: | 3800r/min | Main Motor: | 15kw |
| Secondary Motor: | 7.5kw | Drum Material: | Stainless Steel |
| Discharge Method: | Bottom Automatic | Feeding Type: | Pump Feeding |
| Application: | Food,chemical,pharmacy,biological,wastewater | Processing Capacity: | 2-20m3/h |
| Function: | Solid-liquid,liquid-liquid-solid Separation | Using Purpose: | Separation,concentration,filtration,extraction,dewatering |

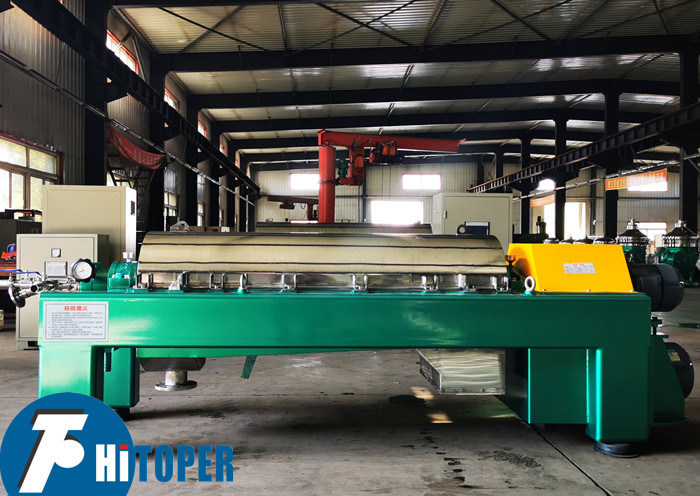

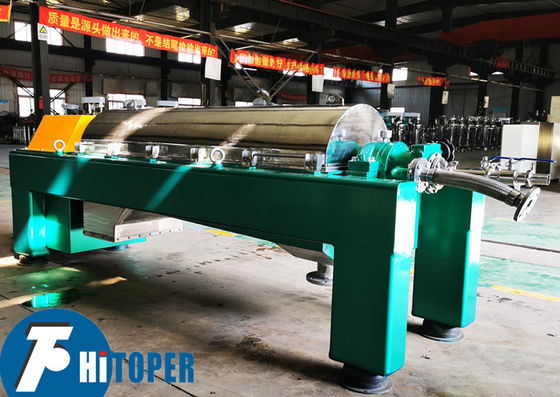

15KW Liquid-liquid-solid 3Phase Separation Automatic Industrial Decanter Centrifuge
Decanter centrifuge uses the centrifugal sedimentation to separate the suspension, uses the spiral to unloading material.It is continuously charging, separating, discharging at full speed.
It is used in the suspension(in 0.0005~2mm, concentration 2-40%) solid-and-liquid separation, size classification, liquid clarification .Especially ,
it issuitable for the suspension separation that with difficult in filter cloth recycling, and the material with large concentration and big size range.
Working principle of the automatic industrial decanter centrifuge
The basic principle is the drum and the spiral feeder rotate in the same direction but with a certain speed difference; The material is led into the feeding spiral inner cylinder via the feeding pipe and after speeding up, enters the drum; Under the action of the centrifuge force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; The solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and after dehydration in the drying area, is discharged under full-speed running.
Technical Features of the automatic industrial decanter centrifuge
1.Design Optimization :
The host structure throughout the finite element simulation of parametric design, strength and stiffness for rotating parts, strength and vibration resistance for the base, overall strength and vibration absorption stands to optimize the design, so that the mechanical structure and parameters to optimize
2.Manufacturing:
All self-manufactured components are made on CNC machinery and quality inspection through advanced detection mechanisms to ensure parts quality, accuracy and interchangeability.
3.Energy savings:
Dual Frequency conjugate DC busbar technology, making the electric power generated by auxiliary motor back to the state of the main circuit, effectively save energy consumption.
Basic technical parameters of the automatic industrial decanter centrifuge:
| Model |
Drum Dia. (mm) |
Drum length (mm) |
Length-Dia. Ratio | Rotation speed(r/min) | Separation factor(w2r/g) |
Capacity (m3/h) |
Motor power (Kw) |
Weight (kg) |
Dimension (mm) |
| LWS355x1600 | 355 | 1600 | 4.5 | 3800 | 2868 | 1-20 | 15-18.5 | 1850 | 3490x860x1200 |
| LWS400X1200 | 400 | 1200 | 3.0 | 3650 | 3000 | 1-5 | 15-18.5 | 2500 | 2990x960x1205 |
| LWS400X1800 | 400 | 1800 | 4..5 | 3650 | 3000 | 2-10 | 15-22 | 2500 | 3890x1020x1205 |
| LWS450X2000 | 450 | 2600 | 4.4 | 3450 | 3000 | 3-35 | 22-37 | 3000 | 4297X1080X1385 |
| LWS500X2000 | 500 | 2000 | 4.0 | 3000 | 2500 | 5-45 | 30-37 | 3800 | 4330X1140X1470 |
| LWS530X2280 | 530 | 2280 | 4.3 | 2900 | 2500 | 15-65 | 45-55 | 5000 | 4924X1170X1540 |
Our service:
1. We have professional person on line to advise you the most suitable type of machie for according to your requirement.
2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3. Arrange the schedule if you pay a visit to our factory.
