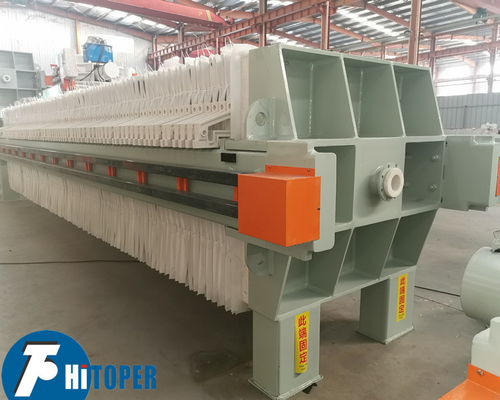

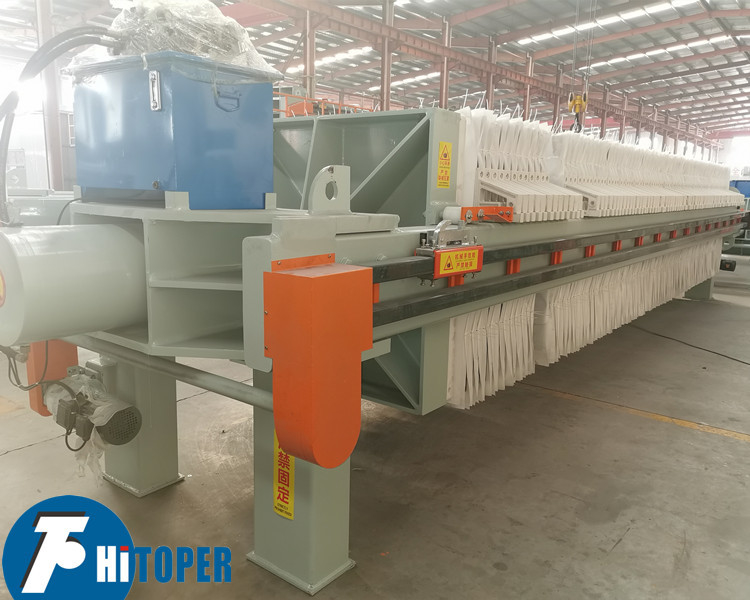

Automatic Cake Discharge Industrial Filter Press for Solid-Liquid Separation Treatment

Automatic Cake Discharge Industrial Filter Press with Program Control for Solid-Liquid Separation

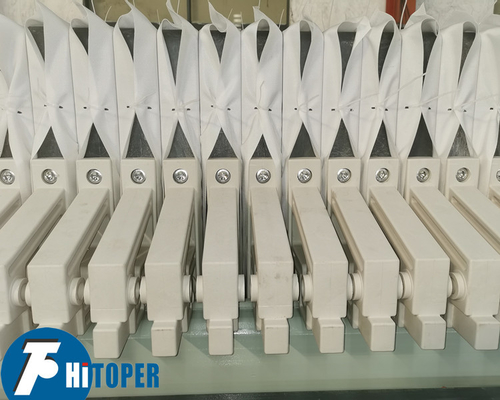

This chamber filter press filter press is extruded through the plate frame, so that the water in the sludge is discharged through the filter cloth to achieve the purpose of dehydration. In operation, under the pressure of the feed pump, the liquid to be filtered is sent to each filter chamber, and the solid and liquid are separated by a filter medium (selecting a suitable filter cloth according to different industries). The filter residue is formed on the filter cloth until the filter chamber is filled to form a filter cake.

The filtrate passes through the filter cloth and flows along the groove of the filter plate to the lower outlet hole passage, and is discharged centrally. After the filtration is finished, the filter press is opened to remove the filter cake (the filter cake is stored between the adjacent two filter plates), and the filter cloth is cleaned. Re-tighten the plate filter to start the next working cycle. This continuously cycles through the work to achieve the purpose of solid-liquid separation.

Besides the automatic cake discharge device, also we can supply other automatic device like the belows,

1. Filter cloth auto varicose and Auto bomb door.

with some slurry with high viscosity, and the cake is difficult to automatically fall off, cloth varicose system we design can change angle of the filter cloth into V shape, at the same time the spring connected with cloth vibrates and the cake fall off.

during the filtration of the filter press, there are maybe a drip between the filter plates, then the bomb door will collect the leakage, then avoid pollution in the work site, but also avoid the cake moisture increase under the filter press

2. Auto cloth washing system,

connected with high pressure water pump, when the filter press stops work, or when you need, it will help to wash the cloths and be smooth, so that to recover the filtering speed and extend the usage life.

3. Belt conveyor,

It will placed under the filter press, delivery the filter cake together to one side of the filter press, better for further handle.

Our filter press technical parameters.

How to order filter press

According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XZ30/870-30U, XZ100/1000-30U or others.

2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.

3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
