| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XY30/630-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Best factory price |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 200 sets per month for this industrial filter press |
| Filtration Area: | 30 Square Meter | Plate Size: | 630*630mm |
|---|---|---|---|
| Filter Chamber Volume: | 452L | Filter Plate Number: | 37pcs |
| Filtrating Pressure: | 0.6Mpa | Cake Discharge: | Two Workers By Hand Operation |
| Motor Power: | 2200w | Compress Type: | Hydraulic System |
| Application: | Food,environmental Proteciton,medicine,chemical,metrallurgy | Function: | Dehydration,separaiton And Concentration |
| Plate Material: | Reinforced Polypropylene | Filter Medium: | Filter Cloth |
| Voltage: | 380V/220V /400-450V/Customized | Feeding Method: | Central Feeding |
| Liquid Discharge Type: | Open Flow Or Close Flow | Conditon: | New |

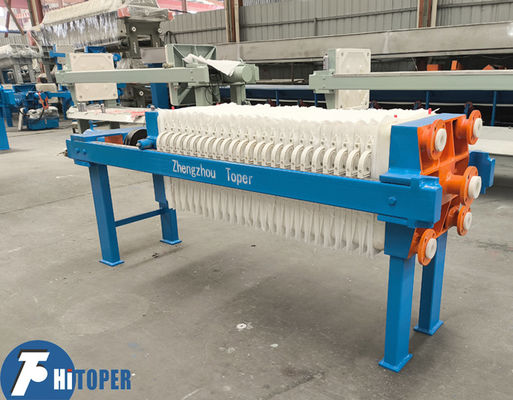

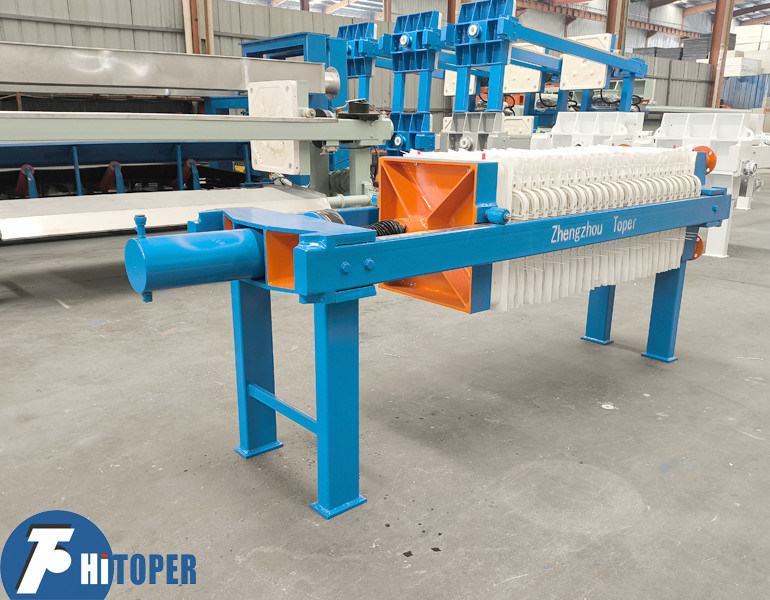

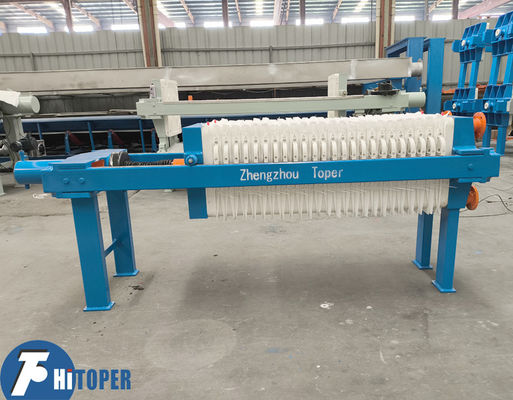

630x630mm Plate 0.6Mpa Pressure Industrial Filter Press CE Certificate
Main technical parameters of this filter press
1. Model XY30/630-30U
2. Filter area: 30m2
3. Filter plate size: 630*630mm
4. Filter chamber volume: 452L
5. Filter cake thickness: 30mm
6. Filter plate number: 37pcs
7. Filter pressure: 0.6Mpa, also it can be 2.0Mpa, if we add some glass fiber when produce the filter plate.
8. Motor power: 2.2kw
9. Weight: About 2360kg
10. Dimension: 3590*900*1100m
How to operate a filter press,
The liquid solid mixture is pumped into the filter press, which is made up of a number of recessed filter plates forming chambers. The plates are supported in a fabricated steel frame and is held closed by a force exerted from a hydraulic ram mounted in the frame work at the end of the machine.
Each filter plate is covered by a filter cloth that retains the solid particles, but allowing the liquid to pass through and exit through the ports in the filter plate.
The particles retained gradually build up on the surface of the filter media and after a period of time eventually form a solid cake.
As the cake forms the pressure within the filter press the pressure rises as the filtrate has to pass through the already partially formed cake to exit the chamber. It becomes increasingly more difficult to continue pumping as the press is unable to accept more solids. At this point the feed pump is stroking infrequently and the filtrate flow from the filter press has considerably reduced or completely stopped.
At this point or at a predetermined filtration time or pressure being achieved the cycle is terminated and the fully formed filter cake is discharged.
Technical parameter of this filter press equipment:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
Different series of our filter press machine:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
