| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XY4/450-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Factory directly provide price |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 200 sets per month for this industrial filter press |
| Filter Area: | 4m2 | Plate Size: | 450*450mm |
|---|---|---|---|
| Chamber Batch Capacity: | 60L | Plate Number: | 9pcs |
| Input Pressure: | 0.6Mpa | Solid Discharge: | Manually |
| Power Supply: | 2.2kw | Compress Model: | Hydraulic System |
| Plate Material: | Polypropylene | Filter Beam Materrial: | Carbon Steel |
| Voltage: | 380V/220V /400-450V/Customized | Filter Cake Thickness: | 30mm |
| Function: | Separation,concentration,extract,refine,clarify Etc. | Application: | Food,environmental Proteciton,medicine,chemical,metrallurgy |
| Color: | White + Blue + Orange | Condition: | New |
| Liquid Discharge Type: | Open Flow Or Close Flow | Feeding Type: | Center Feeding |
| Filter Cake Discahrge Method: | Manual | Certificate: | CE |

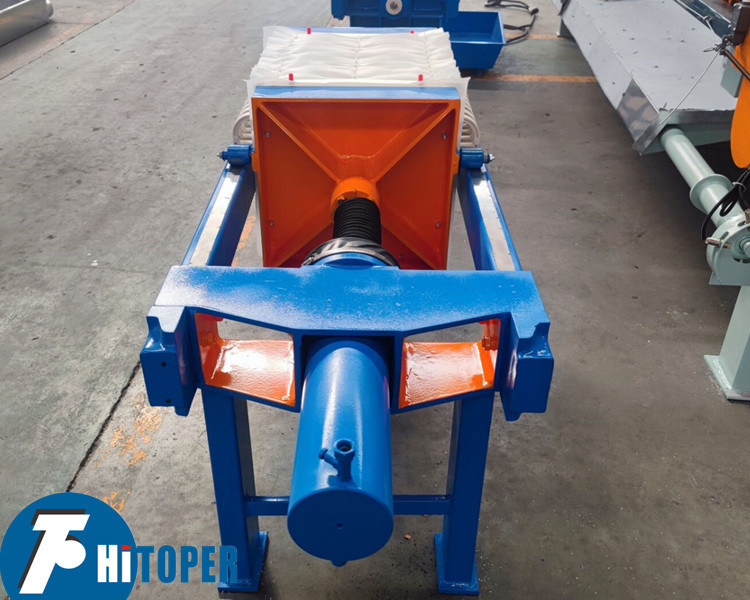

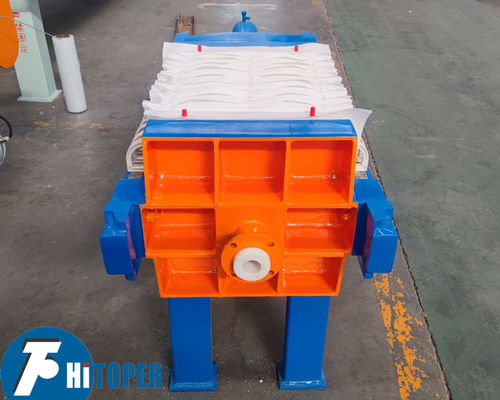

0.6Mp Filtration Pressure Center Feed Sludge Dewatering Industrial Filter Press
This Industrial filter press are widely applied in the below scopes,
Chemicals: dyes, pigments, alum white powder, manganese, caustic soda, soda ash, chlor-alkali salt mud, white carbon black, saponin, graphite, bleaching powder, Synaptic powder, phosphor, sodium hydrosulfite, potassium chlorate, potassium sulfate, ferrous sulfate, ferric hydroxide, water purification agent (aluminum sulfate, chloride, basic aluminum chloride) and so on.
Medicine: Antibiotics (chlortetracycline, erythromycin, spiramycin, Jinggangmeisu, Midecamycin, tetracycline, berberine, oxytetracycline), calcium phytate, medicine inositol, growth derived sand, organic phosphorus, glucoamylase.
Food: rice wine, white wine, fruit juice, soft drinks, beer, yeast, citric acid, vegetable protein, plant density sweetener, glucose, stevia, maltose, starch, rice flour, corn syrup, gum, carrageenan, MSG, spices, sauce liquid , oral, soy, seaweed.
Refining: white oil, sesame oil, light oil, glycerin, machine oil, vegetable oil.
Clay: kaolin, bentonite, activated clay, clay, electronic ceramics clay.
Sewage treatment: a variety of liquid chemical waste water, sewage smelting, electroplating wastewater, sewage leather, printing and dyeing wastewater, sewage brewing, pharmaceutical waste water, sewage and other environmental particulates clarify new equipment purification process.
Description of this industrial filter press,
1. Filter press consists of frame, filter plate, pressing system (manual, mechanical or hydraulic) and electric control cabinet.
2. Frame consists of base, pushing plate, tail plate and girder and girder and supports the pressing device and filter plates.
3. Filter plates are installed on girder between tail plate and push plate, with filter cloth sandwiched in them.
4. In operation, the pressing device (cylinder piston rod or screw) drives the push plate to press the filter plate and filter cloth between push plate and tail plate. Filter chamber are formed between pressed filter plates and materials get into the filter chambers through the feeding port in tail plate. Solid particles are trapped in filter chambers form into cakes, while liquid is discharged out of the machine through press cake and filter cloth. To wash the press cakes, washing water can be introduced through the washing port in the tail plate. In similar manner, to drying the press cakes, compressed air can be introduced through the washing port.
5. Plate and frame type filter-Press is the same as recessed plate filter press in structure, except the filtering part that consists of one plate, one frame and filter cloth, with filter chamber between plate and frame.
6. Liquid stream of filter press can be divided into external stream and internal stream. Open flow refers to that the filtrate is discharge directly from the outlet port of filter plate; Close flow refers to that the filtrate from various filter plate is collected before being discharge out of the filtrate port.
Technical parameter of this industrial filter press:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
