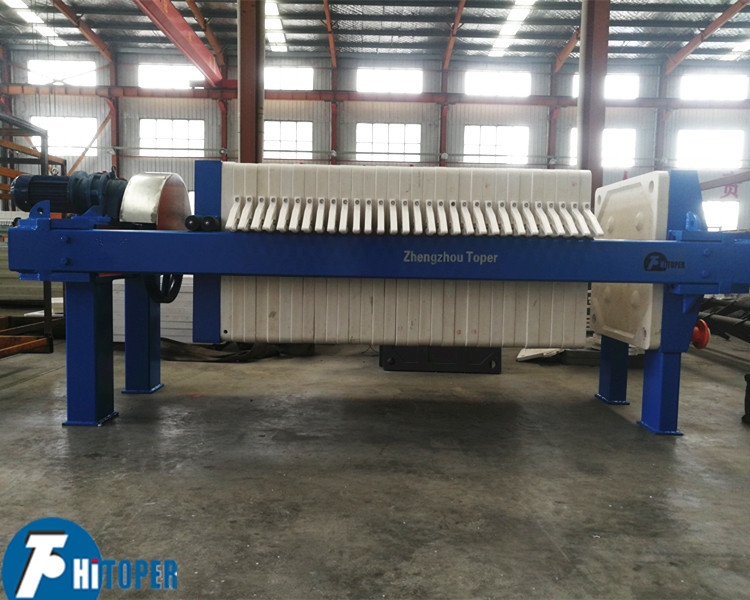

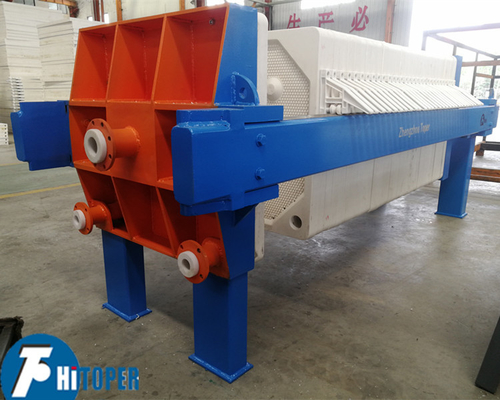

870mm PP Plate Mechanical Industrial Filter Press Electric Motor Drive With Good Strength

870mm PP Plate Mechanical Industrial Filter Press Electric Motor Drive With Good Strength

    • 870mm PP Plate Mechanical Industrial Filter Press Electric Motor Drive With Good Strength
    • 870mm PP Plate Mechanical Industrial Filter Press Electric Motor Drive With Good Strength
  • 870mm PP Plate Mechanical Industrial Filter Press Electric Motor Drive With Good Strength

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XJ40/870-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: in 20 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 500 sets per month for this industrial filter press
    Contact Now
    Detailed Product Description
    Filtration Area: 40m2 Filter Plate Dimension: 870*870mm
    Chamber Volume: 595L Plate Pieces: 49pcs
    Filtrating Pressure: 0.6Mpa Compression: Electic Motor Drive
    Filter Plate Type: Chamber Type Filter Plate Material: Reinforced Polypropylene
    Filter Medium: Filter Cloth Function: Solid-liquid Separation
    Application: Food,environmental Proteciton,medicine,chemical,metrallurgy Conditon: New
    High Light:

    filter press machine


    filter press equipment

    870mm PP Plate Mechanical Industrial Filter Press Electric Motor Drive With Good Strength



    It is widely used in the application as following,

    1. Chemicals

    dyes, pigments, alum white powder, manganese, caustic soda, soda ash, chloralkali

    salt mud, white carbon black, saponin, graphite, bleaching powder,

    Synaptic powder, phosphor, sodium hydrosulfite, potassium chlorate,

    potassium sulfate, ferrous sulfate, ferric hydroxide,

    water purification agent (aluminum sulfate, chloride,

    basic aluminum chloride) and so on.

    2. Medicine

    Antibiotics (chlortetracycline, erythromycin, spiramycin, Jinggangmeisu,

    Midecamycin, tetracycline, berberine, oxytetracycline),

    calcium phytate, medicine inositol, growth derived sand,

    organic phosphorus, glucoamylase.

    3. Food

    rice wine, white wine, fruit juice, soft drinks, beer, yeast, citric acid,

    vegetable protein, plant density sweetener, glucose, stevia,

    maltose, starch, rice flour, corn syrup, gum, carrageenan, MSG,

    spices, sauce liquid , oral, soy, seaweed.

    4. Refining white oil, sesame oil, light oil, glycerin, machine oil, vegetable oil.
    5. Clay kaolin, bentonite, activated clay, clay, electronic ceramics clay.
    6. Wastewater treatment

    a variety of liquid chemical waste water, sewage smelting, electroplating

    wastewater, sewage leather, printing and dyeing wastewater,

    sewage brewing, pharmaceutical waste water, sewage and

    other environmental particulates clarify new equipment purification process.




    Description of this industrial filter press.


    1. Pressing system: Driven by an electric motor drive components to promote the pressing plate pressing filter plate. Compressing screw and the fixing nut to set up a reliable self-locking angle, to ensure the reliability and stability when compression, with comprehensive protection to reach automatic motor control, and achieve on the motor overheating and overload protection.

    2. Structure: Its material is high quality carbon steel, open structure, processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.

    3. Filter plate material is polypropylene. with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength, producing by using 5000 tons high-pressure compressor, every plates before delivery is tested under high pressure 27MPa.

    4. Control cabinet: The cover is carbon steel with spray with button operation, Chinese famous brand inverter and electronic components. Also as you need we can provide you with PLC control, Delta inverter and Schneider electronic components, more extra fees will be needed with your actual situation.

    5. Filter cloths: With good strength, elongation and excellent abrasive resistance, smooth surface ensure not to blocking and not easy to deform.



    Technical parameter:



    Filter area


    Plate size


    Cake thickness


    Filter chamber volume


    Number plate


    Filter pressure


    Motor power




    Dimensions (mm)


    XJ15/630-30U 15 630×630 30 226 18 0.6 2.2 1725 2140×1050×1150
    XJ20/630-30U 20 297 24 1993 3000×1050×1150
    XJ30/630-30U 30 452 37 2360 3650×1050×1150
    XJ40/630-30U 40 595 49 2788 4250×1050×1150
    XJ30/870-30U 30




    460 23 0.6 3 2580 3165×1270×1300
    XJ40/870-30U 40 595 30 2925 3550×1270×1300
    XJ50/870-30U 50 749 38 3318 3990×1270×1300
    XJ60/870-30U 60 902 46 3712 4430×1270×1300
    XJ70/870-30U 70 1056 54 4106 4900×1270×1300
    XJ80/870-30U 80 1210 62 4561 5310×1270×1300
    XJ50/1000-30U 50 1000×1000 752 28 0.6 3 4072 3680×1400×1400
    XJ60/1000-30U 60 908 34 4468 4040×1400×1400
    XJ70/1000-30U 70 1063 40 4863 4400×1400×1400
    XJ80/1000-30U 80 1219 46 5259 4760×1400×1400
    XJ100/1000-30U 100 1505 57 5985 5420×1400×1400
    XJ120/1000-30U 120 1816 69 6776
