| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | GF125 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 60 sets per month for this tubular centrifuge |
| Drum Diameter: | 125mm | Drum Volume: | 7.4L |
|---|---|---|---|
| Drum Rotate Speed: | 16000r/min | Separation Factor: | 18000 |
| Water Flow Capacity: | 2000kg/h | Power: | 3.0kw |
| Inner Dia.: | 125mm | Motor: | 380V,50hz Or As Require |
| Material: | Stainless Steel | ||
| High Light: | high speed centrifuge machine,tubular bowl centrifuge |
||

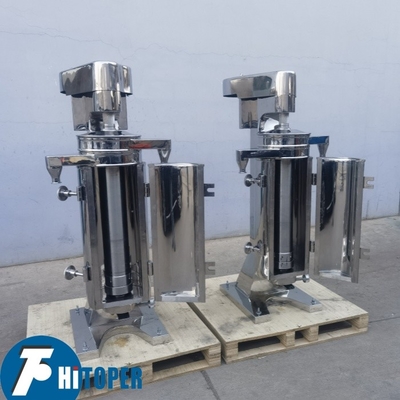

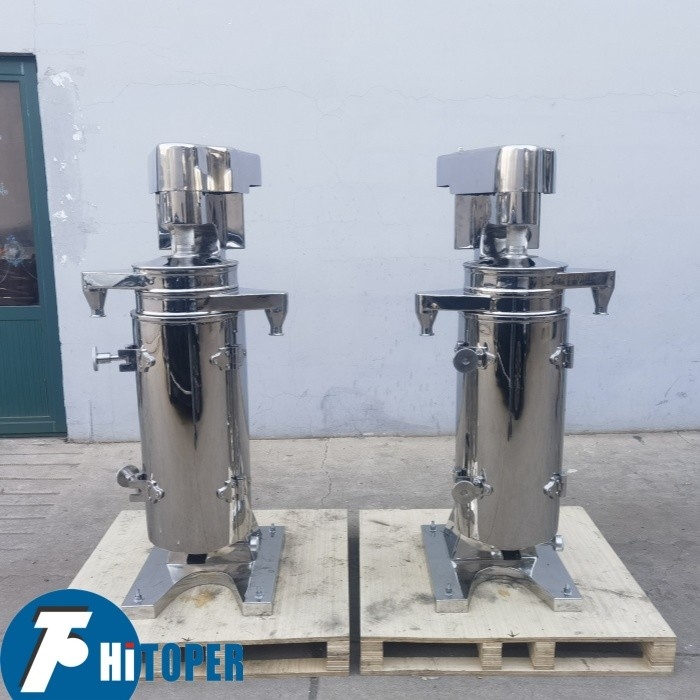

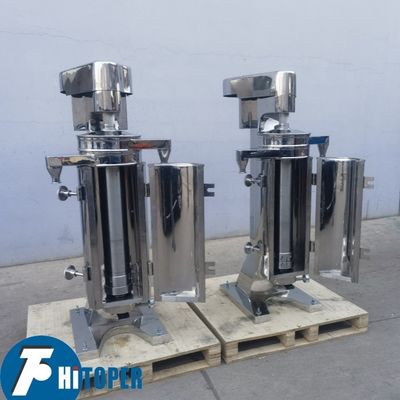

16000r/min HighSpeed Tubular Centrifuge ,3.0kw Motor Drive VCO Machine Turbine Oil Centrifuge
GF series tubular centrifuge: it is mainly used for various industrial suspension very difficulty to separate, especially suitable for liquid-liquid suspension with small specific gravity difference between solid phase and liquid phase, and liquid-liquid-solid separation with few impurities. liquid with larger Density deposit on the outer wall of the drum. liquid with smaller Density deposit on the inner wall of the drum. Both of them get to the upper part of the drum to discharge. solid particles deposit on the drum wall to be artificially discharged after downtime.
Working principle:
When works, the mixed solution is sprayed onto the bowl from the inlet on the bottom, with the strong centrifugal force, allowing the milk flow upper along the wall of the bowl, together with different gravity of the oil and water, heavy liquid(water) forms outer ring and light liquid(oil) forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little particle is settled on the wall of the bowl and discharged manually after the machine stops.
Technical parameters:
|
Model |
Drum |
Nozzle diameter |
Productivity (water flow) (kg/h) |
Power |
Weight (kg) |
||||
|
Inner diameter |
Height |
Volume |
Rotary speed |
Separation factor |
|||||
| GF45 | 45 | 280 | 0.4 | 28000 | 19800 | 2,3 | 100 | 0.55 | 90 |
| GF75 | 75 | 450 | 2.2 | 19000 | 15700 | 4,6 | 600 | 1.5 | 300 |
| GF105 | 105 | 730 | 6 | 16300 | 15620 | 6,8 | 1200 | 2.2 | 570 |
| GF125 | 125 | 730 | 7.4 | 15000 | 18000 | 5,8,9 | 1500 | 3.0 | 610 |
| GF150 | 142 | 730 | 10 | 14000 | 15700 | 8,10,12 | 2500 | 3.0 | 665 |
