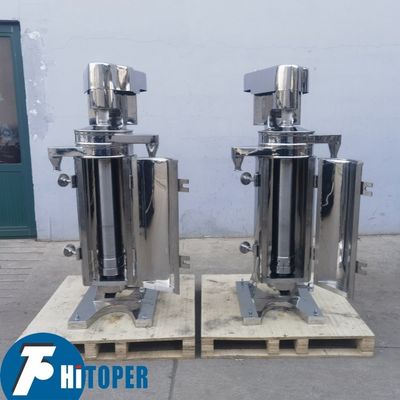

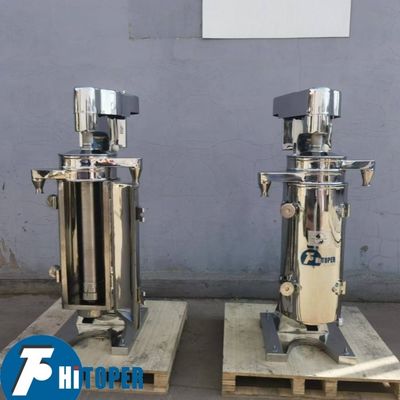

High Speed Industrial Tubular Centrifuge,Liquid Liquid Solid 3 Phase Separation Centrifuge

High Speed Industrial Tubular Centrifuge,Liquid Liquid Solid 3 Phase Separation Centrifuge

    • High Speed Industrial Tubular Centrifuge,Liquid Liquid Solid 3 Phase Separation Centrifuge
    • High Speed Industrial Tubular Centrifuge,Liquid Liquid Solid 3 Phase Separation Centrifuge
  • High Speed Industrial Tubular Centrifuge,Liquid Liquid Solid 3 Phase Separation Centrifuge

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: GF125

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10-15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 60 sets per month for this tubular centrifuge
    Contact Now
    Detailed Product Description
    Drum Diameter: 125mm Drum Volume: 7.4L
    Drum Rotate Speed: 16000r/min Separation Factor: 18000
    Water Flow Capacity: 2000kg/h Power: 3.0kw
    Drum Material: Stainless Steel Function: Solid-liquid ,liquid-liquid-solid Separation
    Feeding Method: Manual Feeding Voltage: 380V/220V /400-450V/Customized
    Conditon: New
    High Light:

    liquid solid separation centrifuge

    ,

    high speed centrifuge machine

    Liquid-liquid-solid 3 phase separation centrifugal separator of tubular centrifuge





    GF series tubular centrifuge: it is mainly used for various industrial suspension very difficulty to separate, especially suitable for liquid-liquid suspension with small specific gravity difference between solid phase and liquid phase, and liquid-liquid-solid separation with few impurities. liquid with larger Density deposit on the outer wall of the drum. liquid with smaller Density deposit on the inner wall of the drum. Both of them get to the upper part of the drum to discharge. solid particles deposit on the drum wall to be artificially discharged after downtime.





    Working principle:



    When works, the mixed solution is sprayed onto the bowl from the inlet on the bottom, with the strong centrifugal force, allowing the milk flow upper along the wall of the bowl, together with different gravity of the oil and water, heavy liquid(water) forms outer ring and light liquid(oil) forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little particle is settled on the wall of the bowl and discharged manually after the machine stops.





    Main application:



    For example, transformer oil, turbine oil, lubricating oil, fuel oil, dye, grease, saponification, all kinds of powder materials, Span - 80 material liquid purification, various oral liquid, various medical liquid, the separation of contenders 0 "(plasma separation of biological medicines and plasma extraction for animal blood), cooking oil, Cai Pan soaking liquid, tea polyphenol, soybean phospholipid concentrate refine, oil-water separation and wastewater treatment, etc.





    Technical parameters:



    Model

    Drum Nozzle diameter
    (mm)

    Productivity(water flow) (kg/h)

    Power
    (KW)

    Weight
    (kg)

    Inner diameter
    (mm)

    Height
    (mm)

    Volume
    (L)

    Rotary speed
    (r/min)

    Separation factor
    GF45 45 280 0.4 28000 19800 2,3 100 0.55 90
    GF75 75 450 2.2 19000 15700 4,6 600 1.5 300
    GF105 105 730 6 16300 15620 6,8 1200 2.2 570
    GF125 125 730 7.4 15000 18000 5,8,9 1500 3.0 610
    GF150 142 730 10 14000 15700 8,10,12 2500 3.0 665





    Why choose us:

    1. Manufacture experience,
    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
    2. Technology capacity,
    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
    3. Our superiority,
    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
    4. Best after-sales,
    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
