|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||15-20 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||100 sets per month for this bag filter housing|
|Filter Area:||0.5m2||Max. Flow Rate:||40m3/h|
|Inlet And Outlet:||DN50||Design Pressure:||1.0Mpa|
|Solid Discharge Method:||Upper Manual||Feeding Method:||Side Feeding|
|Liquid Discharge Method:||Flange Bottom Discharge||Application:||Chemical,food,pharmacy,biological,waste Water|
|Main Material:||Stainless Steel||Filter Medium:||PP Filter Bag|
stainless steel bag filter housing,
stainless steel bag filter

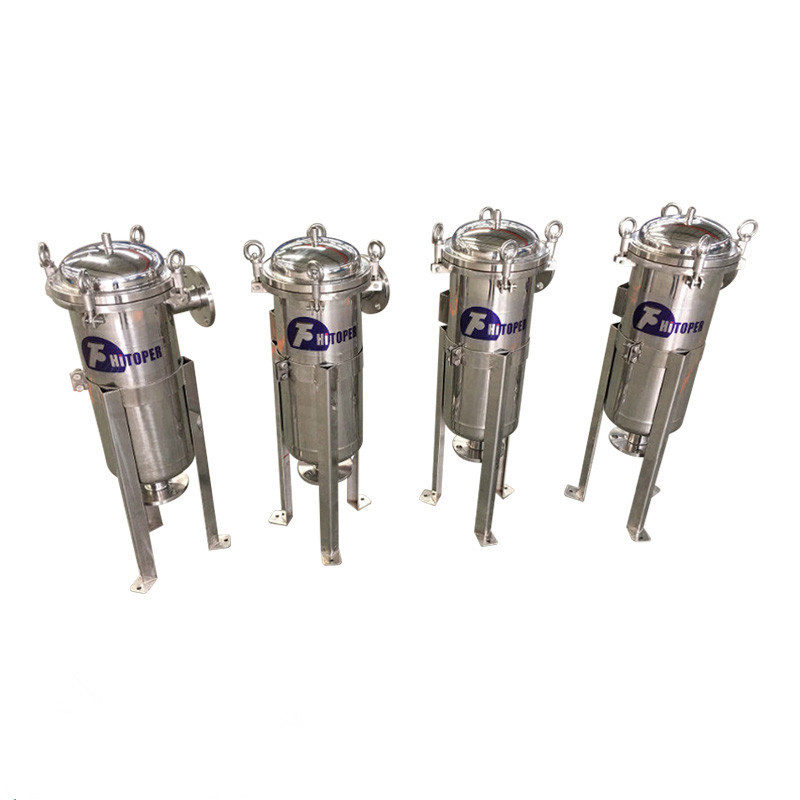

Bag Filter Housing Function Of Slurry Water Solid-liquid Separation
Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.

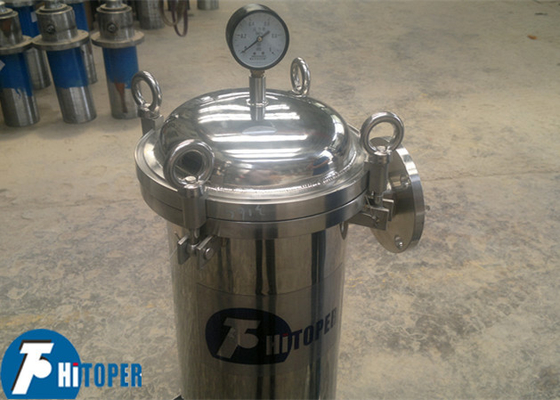

The main components of the machine include :Bag filter body;O-ring;Support bakset net;Filter bag or wedge mesh and Pressure gauge.
Feature of the Bag Filter Housing Function Of Slurry Water Solid-liquid Separation:
1. The single bag filter machine ,there's three different structure: high curvature type ,low hoop style and lifting lug flange type .
2. The high quality stainless steel basket inside the filter ,function of suppoeted the filter bag .The filter bag inside the metal basket
of the filter ,kept the impurities flow into the filter ,and clear liquor flow out through out from the outlet.
3. The filter bag can be made by PP,nylon,polester,PVA etc according to the separation demand.Easy to replce and using .
4. The inner and out mirror of the filter can be polishing treatment or sanding treatment based on the demand.
Advantages of the Bag Filter Housing Function Of Slurry Water Solid-liquid Separation:
1. The Bag filter housing is of large processing capacity, small size, large capacity dirt.Bag filter system based on the working principle and structure; replacing the filter bag is convenient, and filter is no necessary to clean, saving time and labor.
2. Bag side leakage probability is small, powerfully guarantee filter quality.Filter bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.
3. Filter precision is getting improved , now is reached 0.5μm;Bag filter is widely used , flexible, diverse installation styles.
Bag filter housing technical parameters:
Filter area (m2)
Max. flow rate (m³/h)
Working pressure (MPa)
Inlet and outlet connection style
Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.
1. Multi bag filter housing is for high flow filter. From 2 to 24 bags,
2. Complete specifications, inlet and outlet flange diameter of 3 to 18’’,
3. The largest single flow is 90-1000m³/h.
4. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .
Packing and delivery :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
More information about Toper
1. About Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas excluding China mainland.
Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.
Pre-Sales Service: Inquiry and consulting support ;Sample testing support;View our Factory
After-Sales Service:Training how to instal the machine, training how to use the machine;Engineers available to service machinery overseas.
Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, threefoot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge,tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.
Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical, environmental protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles, printing and dyeing, papermaking,inorganic salt, coal washing, sewage treatment, ceramics, leather such industries.
