| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DL1P1S |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 100 sets per month for this bag filter housing |
| Filter Area: | 0.25m2 | Max. Flow Rate: | 20m3/h |
|---|---|---|---|
| Working Pressure: | 0.5Mpa | Volume: | 8L |
| Inlet And Outlet: | DN50 | Sealing Structure: | Upper Closed Platen Seal |
| Sealing Type: | Level 2 O-seal | Liquid Discharge Method: | Flange Side Discharge |
| Feeding Method: | Pump Feeding Or Manual Feeding | Application: | Pharmacy,food ,veverage,chemical Etc. |
| Function: | Solid-liquid Separation | ||
| Highlight: | stainless steel bag filter housing,stainless steel bag filter |
||

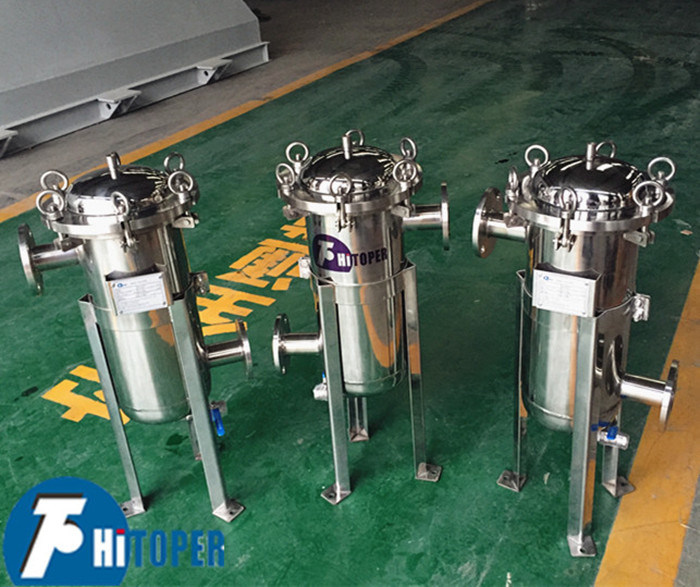

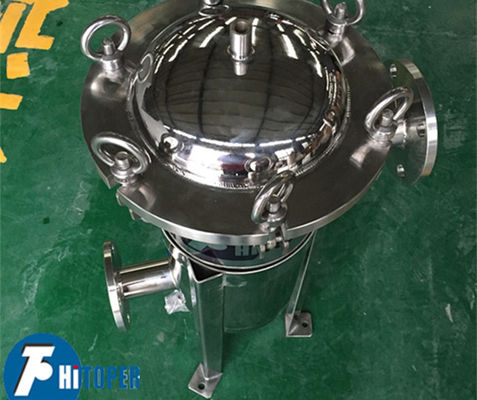

Stainless Steel PP Bag Filter Housing, 0.5Mpa Fine Filtration Metal Bakset Filter

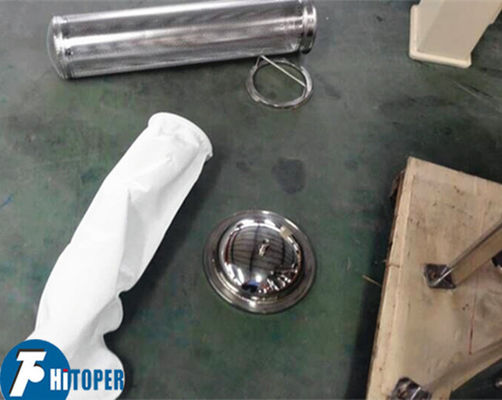

Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.
Bag filter housing features:
1. The Bag filter housing is of large processing capacity, small size, large capacity dirt.Bag filter system based on the working principle and structure; replacing the filter bag is convenient, and filter is no necessary to clean, saving time and labor.
2. Bag side leakage probability is small, powerfully guarantee filter quality.
3. Filter bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.
4. Filter precision is getting improved , now is reached 0.5μm;Bag filter is widely used , flexible, diverse installation styles.
Bag filter housing technical parameters:
|
Model |
Filter area (m2) |
Max. flow rate (m³/h) |
Working pressure (MPa) |
Volume (L) |
Inlet and outlet connection style |
| DL1P1S | 0.25 | 20 | 0.5 | 8.0 | Ф50 |
| DL1P2S | 0.5 | 40 | 0.5 | 17.0 | Ф50 |
| DL1P4S | 0.20 | 18 | 0.5 | 3.8 | Ф20 |
Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.Multi bag filter housing is for high flow filter. From 2 to 24 bags, Complete specifications, inlet and outlet flange diameter of 3 to 18’’, The largest single flow is 90-1000m³/h. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .
|
Model |
Number of bag size |
Quantity of bags |
Filter area (m2) |
Caliber of inlet and outlet (mm) |
Working pressure (MPa) |
Max. flow velocity (m³/h) Viscosity=1 |
| DL-2P2S | 2 | 2 | 1 | φ50 | 0.5 | 70 |
| DL-3P2S | 2 | 3 | 1.5 | φ50 | 0.5 | 100 |
| DL-4P2S | 2 | 4 | 2 | φ100 | 0.5 | 150 |
| DL-5P2S | 2 | 5 | 2.5 | φ150 | 0.5 | 175 |
| DL-6P2S | 2 | 6 | 3 | φ200 | 0.5 | 210 |
| DL-7P2S | 2 | 7 | 3.5 | φ200 | 0.5 | 245 |
| DL-8P2S | 2 | 8 | 4.0 | φ250 | 0.5 | 280 |
| DL-10P2S | 2 | 10 | 5.0 | φ250 | 0.5 | 350 |
| DL-12P2S | 2 | 12 | 6.0 | φ300 | 0.5 | 420 |
| DL-14P2S | 2 | 14 | 7.0 | φ300 | 0.5 | 490 |
| DL-16P2S | 2 | 16 | 8.0 | φ300 | 0.5 | 560 |
| DL-18P2S | 2 | 18 | 9.0 | φ350 | 0.5 | 630 |
| DL-20P2S | 2 | 20 | 10.0 | φ350 | 0.5 | 700 |
| DL-22P2S | 2 | 22 | 11.0 | φ350 | 0.5 | 770 |
| DL-24P2S | 2 | 24 | 12.0 | φ350 | 0.5 | 840 |
