|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||15-20 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||100 sets per month for this bag filter housing|
|Filter Area:||0.5m2||Max. Flow Rate:||40m3/h|
|Inlet And Outlet:||DN50||Structure Type:||Lifting Lug Flange Type|
|Sealing Type:||Level 2 O-seal||Solid Discharge Method:||Upper Manual Discharge|
|Liquid Discharge Method:||Flange Bottom Discharge||Function:||Purification,filtration,clarification,extraction|
|Filter Medium:||PP Filter Bag|
stainless steel bag filter housing,
stainless steel bag filter

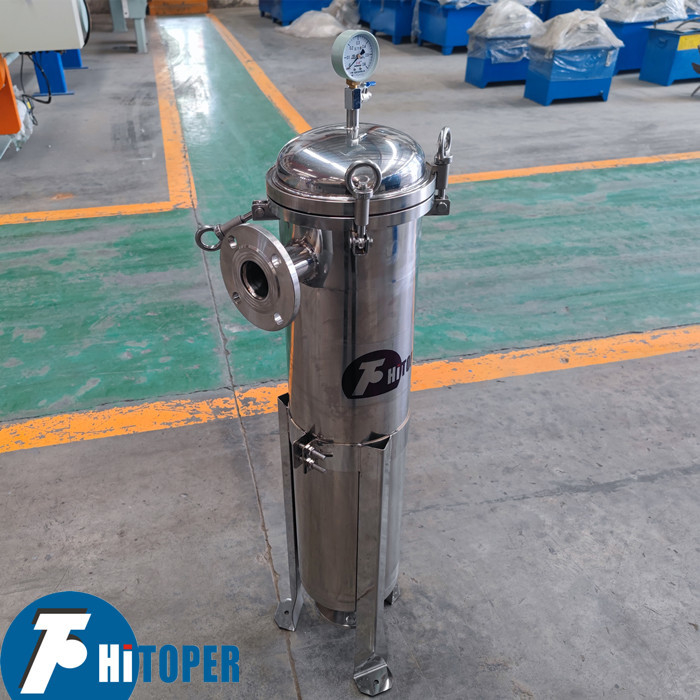

Flange Type Bottom Discharge Fast Open Design Chemical Filter Housing with CE Certification
Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.
The bag filer have such deatures like bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.Filter precision is getting improved , now is reached 0.5μm.Bag filter is widely used , flexible, diverse installation styles.
Main components parts of the bag filter: There's three different structure: high curvature type ,low hoop style and lifting lug flange type .

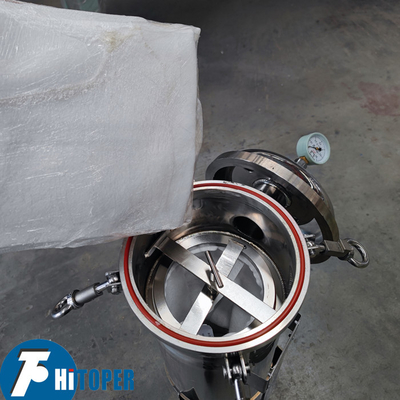

The most commonly used type is lifting lug flange .The high quality stainless steel basket inside the filter ,function of suppoeted the filter bag .
The filter bag inside the metal basket of the filter ,kept the impurities flow into the filter ,and clear liquor flow out through out from the outlet.
Bag filter housing technical parameters:
Filter area (m2)
Max. flow rate (m³/h)
Working pressure (MPa)
Inlet and outlet connection style
Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.
Multi bag filter housing is for high flow filter. From 2 to 24 bags, complete specifications, inlet and outlet flange diameter of 3 to 18’’, the largest single flow is 90-1000m³/h. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .
Packing and delivery :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
More information about Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.
Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge,tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.
Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical, environmental protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles, printing and dyeing, papermaking,inorganic salt, coal washing, sewage treatment, ceramics, leather such industries.
