Large Capacity Multi Bag Filter Housing for Wastewater Filtration

Large Capacity Multi Bag Filter Housing for Wastewater Filtration

    • Large Capacity Multi Bag Filter Housing for Wastewater Filtration
    • Large Capacity Multi Bag Filter Housing for Wastewater Filtration
    • Large Capacity Multi Bag Filter Housing for Wastewater Filtration
  • Large Capacity Multi Bag Filter Housing for Wastewater Filtration

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DL3P2S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 100 sets per month for this bag filter housing
    Contact Now
    Detailed Product Description
    Filter Area: 1.5m2 Max. Flow Rate: 100m3/h
    Working Pressure: 0.5Mpa Inlet And Outlet: DN50
    Material: SS304/SS316 Design Pressure: 1.0Mpa
    Filter Medium: Filter Bag + Filtration Basket Surface Treatment: Internal Or External Mirror Polishing Or Sand Blasting
    Feeding Method: Pump Or Manual Seal Structure: Upper Closed Platen Seal
    Sealing Type: Level 2 O-seal
    Highlight:

    ss bag filter housing

    ,

    stainless steel bag filter

    Large Capacity Multi Bag Filter Housing for Wastewater Filtration


    Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.

    This bag filter machine with features as following :

    1. Bag filter housing is of large processing capacity, small size, large capacity dirt.

    2. Bag filter system based on the working principle and structure; replacing the filter bag is convenient, and filter is no necessary to clean, saving time and labor.

    3. Bag side leakage probability is small, powerfully guarantee filter quality.

    4. Filter bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.

    5. Filter precision is getting improved , now is reached 0.5μm

    6. Bag filter is widely used , flexible, diverse installation styles.





    Main components parts of the bag filter:



    1. Lifting lug flange structure

    For Toper's single bag filter machine ,there's three different structure: high curvature type ,low hoop style and lifting lug flange type .

    The most commonly used type is lifting lug flange .

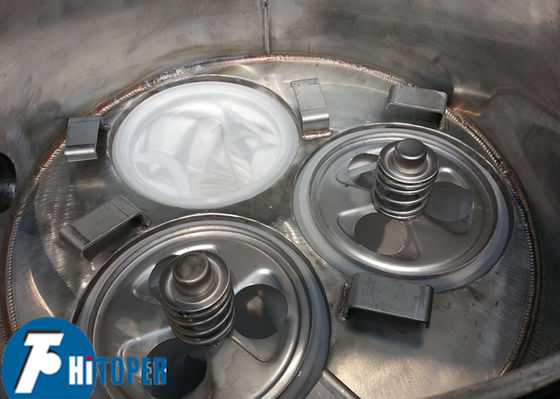

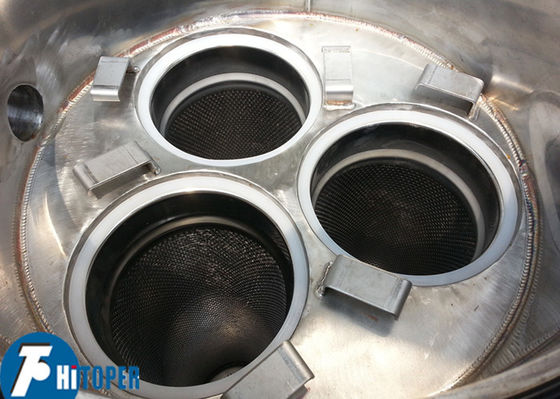

    2. Inner metal basket

    The high quality stainless steel basket inside the filter ,function of suppoeted the filter bag .



    3. Filter bag :

    The filter bag inside the metal basket of the filter ,kept the impurities flow into the filter ,and clear liquor flow out through out from the outlet.

    The filter bag can be made by PP,nylon,polester,PVA etc according to the separation demand.
    Easy to replce and using .



    4. Mirror polishing treatment
    The inner and out mirror of the filter can be polishing treatment or sanding treatment based on the demand.





    Bag filter housing technical parameters:



    Model

    Filter area

    (m2)

    Max. flow rate

    (m³/h)

    Working pressure

    (MPa)

    Volume

    (L)

    Inlet and outlet

    connection style

    DL1P1S 0.25 20 0.5 8.0 Ф50
    DL1P2S 0.5 40 0.5 17.0 Ф50
    DL1P4S 0.20 18 0.5 3.8 Ф20

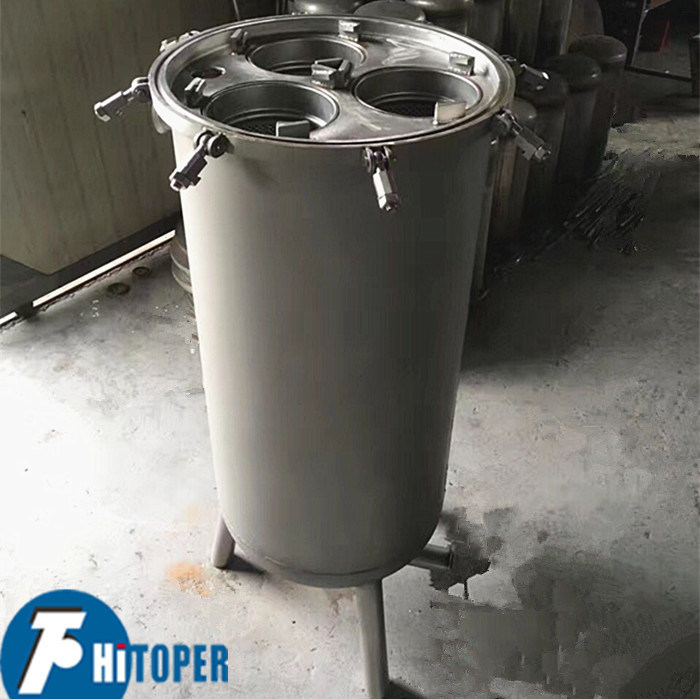

    Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.Multi bag filter housing is for high flow filter. From 2 to 24 bags, complete specifications, inlet and outlet flange diameter of to 18’’, the largest single flow is 90-1000m³/h. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .



    Model

    Number of

    bag size

    Quantity of

    bags

    Filter area

    (m2)

    Caliber of inlet

    and outlet (mm)

    Working pressure

    (MPa)

    Max. flow velocity

    (m³/h)

    Viscosity=1

    DL-2P2S 2 2 1 φ50 0.5 70
    DL-3P2S 2 3 1.5 φ50 0.5 100
    DL-4P2S 2 4 2 φ100 0.5 150
    DL-5P2S 2 5 2.5 φ150 0.5 175
    DL-6P2S 2 6 3 φ200 0.5 210
    DL-7P2S 2 7 3.5 φ200 0.5 245
    DL-8P2S 2 8 4.0 φ250 0.5 280
    DL-10P2S 2 10 5.0 φ250 0.5 350
    DL-12P2S 2 12 6.0 φ300 0.5 420
    DL-14P2S 2 14 7.0 φ300 0.5 490
    DL-16P2S 2 16 8.0 φ300 0.5 560
    DL-18P2S 2 18 9.0 φ350 0.5 630
    DL-20P2S 2 20 10.0 φ350 0.5 700
    DL-22P2S 2 22 11.0 φ350 0.5 770
    DL-24P2S 2 24 12.0 φ350 0.5 840





    Large Capacity Multi Bag Filter Housing for Wastewater Filtration
