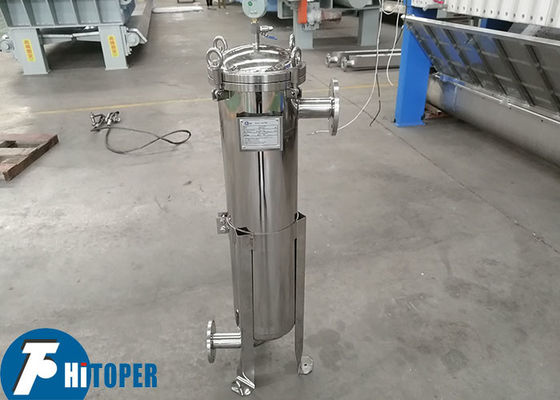

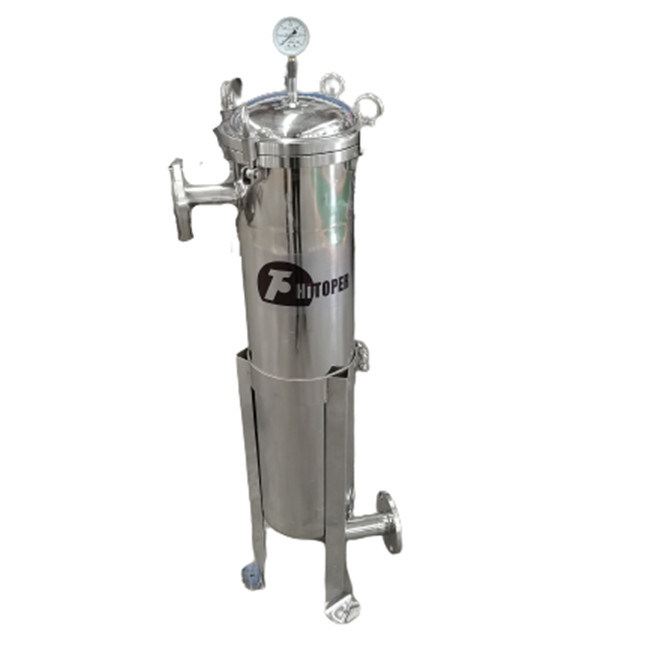

Stainless Steel 304 Bag Filter Housing for Starch Sugar-making Filtration Production

Stainless Steel 304 Bag Filter Housing for Starch Sugar-making Filtration Production

    • Stainless Steel 304 Bag Filter Housing for Starch Sugar-making Filtration Production
    • Stainless Steel 304 Bag Filter Housing for Starch Sugar-making Filtration Production
  • Stainless Steel 304 Bag Filter Housing for Starch Sugar-making Filtration Production

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DL1P2S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 15-20 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 100 sets per month for this bag filter housing
    Contact Now
    Detailed Product Description
    Filter Area: 0.5m2 Max. Flow Rate: 40m3/h
    Working Pressure: 0.5Mpa Volume: 17L
    Inlet And Outlet: DN50 Material: SS304/SS316
    Structure Type: Lifting Lug Flange Type Sealing Type: Level 2 O-seal
    Solid Discharge Method: Upper Manual Discharge Liquid Discharge Method: Flange Bottom Discharge
    Application: Solid-liquid Separation Filter Medium: Filter Bag

    Stainless Steel 304 Bag Filter Housing for Starch Sugar-making Filtration Production


    Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.



    The bag filer have such deatures like  bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.Filter precision is getting improved , now is reached 0.5μm.Bag filter is widely used , flexible, diverse installation styles.





    Main Features---Stainless steel 304 filter bag hoist discharge centrifuge used for starch sugar-making production line



    1. Bag filter is of large processing capacity, small size, large capacity dirt.

    2. Bag filter system based on the working principle and structure; replace the filter bag is convenient, and filter is no necessary to clean, saving time and labor.

    3. Bag side leakage probability is small, powerful guarantee filter quality.

    4. Filter bag can bear a greater work pressure, small pressure loss, low operation cost, energy-saving effect.
    5.  Increasing filtration precision, has now reached 0.5μm





    Main components parts of the bag filter:



    1. Lifting lug flange structure

    For Toper's single bag filter machine ,there's three different structure: high curvature type ,low hoop style and lifting lug flange type .

    The most commonly used type is lifting lug flange .



    2. Inner metal basket

    The high quality stainless steel basket inside the filter ,function of suppoeted the filter bag .



    3. Filter bag :

    The filter bag inside the metal basket of the filter ,kept the impurities flow into the filter ,and clear liquor flow out through out from the outlet.

    The filter bag can be made by PP,nylon,polester,PVA etc according to the separation demand.
    Easy to replce and using .



    4. Mirror polishing treatment
    The inner and out mirror of the filter can be polishing treatment or sanding treatment based on the demand.


    More information about Toper



    1. About Toper
    Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.

    2. Global service
    Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.

    3. Products
    Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge,tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.

    Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical, environmental protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles, printing and dyeing, papermaking,inorganic salt, coal washing, sewage treatment, ceramics, leather such industries.



    Bag filter housing technical parameters:



    Model

    Filter area

    (m2)

    Max. flow rate

    (m³/h)

    Working pressure

    (MPa)

    Volume

    (L)

    Inlet and outlet

    connection style

    DL1P1S 0.25 20 0.5 8.0 Ф50
    DL1P2S 0.5 40 0.5 17.0 Ф50
    DL1P4S 0.20 18 0.5 3.8 Ф20



    Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.

    Multi bag filter housing is for high flow filter. From 2 to 24 bags, complete specifications, inlet and outlet flange diameter of 3 to 18’’, the largest single flow is 90-1000m³/h. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .

    Stainless Steel 304 Bag Filter Housing for Starch Sugar-making Filtration Production





    Stainless Steel 304 Bag Filter Housing for Starch Sugar-making Filtration Production
