| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | PSB200 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this platform centrifuge |
| Drum Diameter: | 200mm | Drum Volume: | 2L |
|---|---|---|---|
| Drum Load Limit: | 2kgs | Drum Rotate Speed: | 3000r/min |
| Motor: | 0.55kw | Weight: | 160kgs |
| Dimension: | 500*600*850mm | Material: | Stainless Steel With Plastic Lining |
| Filter Medium: | Filter Bag | Function: | Solid-liquid Separation |
| Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. | Certificate: | CE |
| Condition: | New |

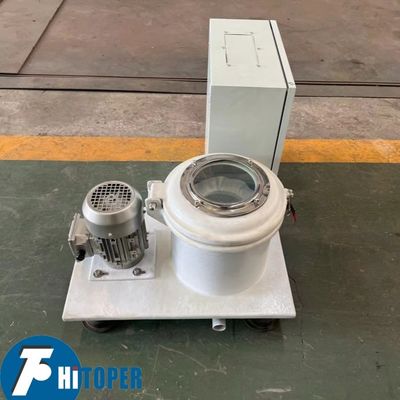

Plastic Lining Material PSB200 Small Scale 3000rpm Speed Platform Base Centrifuge
Brief introduction :
It is top discharging closed type and intermittent operation filter euipment. Materials goes into the drum through the feeding pipe on the housing of hermetic closure, under the action of centrifugal force, the liquid is discharged out of machine through the filter medium, and solid are remained inthe drum, after drum stops, open the top cover to discharge.
It has such features of smooth running, esay operation and feeding, washing and dehydrating under the state of hermetic closure.
High Lights of the Exported to Chile PSB200 Small scale 3000rpm speed drum centrifuge :
| type | drum |
separation factor |
(kw) power |
opening limit |
(kg) weight |
(mm) dimensions |
|||
|
(mm) diameter |
(L) volume |
(kg) limit |
(r/min) speed |
||||||
| PSB200 | 200 | 2.6 | 2 | 3000 | 1370 | 0.55 | 900 | 38 | 550X350X350 |
| PSB300 | 300 | 5 | 10 | 1500 | 1050 | 1.1 | 1000 | 180 | 890X600X500 |
| PS450 | 450 | 20 | 25 | 1300 | 910 | 1.5 | 1160 | 250 | 980×650 ×870 |
| PS600 | 600 | 40 | 50 | 1200 | 756 | 3 | 1700 | 800 | 1300×880 ×900 |
| PS800 | 800 | 100 | 135 | 1200 | 645 | 5.5 | 2000 | 1300 | 1800×1200 ×1140 |
| PS1000 | 1000 | 150 | 200 | 1000 | 560 | 7.5 | 2250 | 2000 | 2050×1500 ×1140 |
| PS1200 | 1200 | 250 | 300 | 800 | 431 | 11 | 2700 | 2500 |
2350×1650 ×1370 |
Different material of the centrifuge based on the customer's requirment :
01. SS304 material
02. SS316 material
03. Plastic lining material
CE Certificate for the centrifuge of Toper :
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
