| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | PD1000 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this platform centrifuge |
| Drum Diameter: | 1000mm | Drum Volume: | 170L |
|---|---|---|---|
| Drum Load Limit: | 230kgs | Drum Rotate Speed: | 1200r/min |
| Separation: | 806G | Motor: | 11kw |
| Weight: | 2800kgs | Dimension: | 2030*1300*1220mm |
| Material: | Stainless Steel + Plastic Lining | Function: | Solid-liquid Separation |
| Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. | Voltage: | 380V/220V /400-450V/Customized |
| Conditon: | New | ||
| High Light: | industrial scale centrifuge,liquid solid separation centrifuge |
||

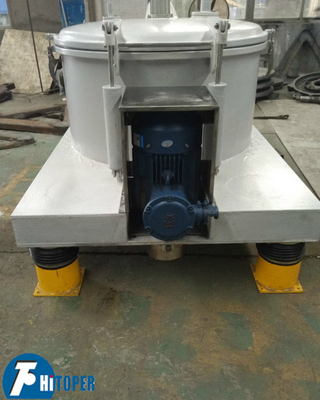

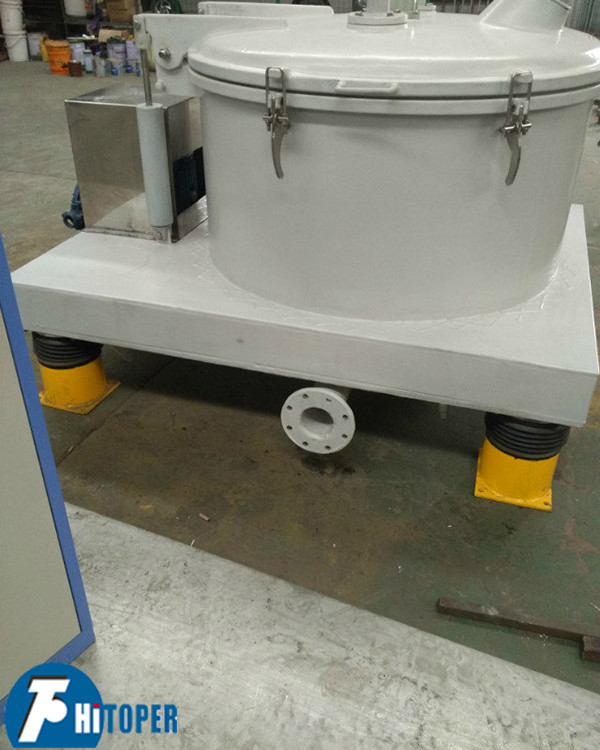

170L Automatic Bag Hosting Centrifuge Corrosion Resistant Plastic Lining Centrifuge Machine
This filter centrifuge is a kind of improved centrifuge base on SD series three feet up discharge centrifuge. This centrifuge is especially excellent corrosion resistance, the ability of various concentrations of acid, alkali, salt, strong oxidants, organic compounds and all other strong corrosive chemical media. For the efficient anti-corrosion lining plastic centrifuge centrifuge, using roll lining form, the centrifugal attached to the surface layer of plastic coating, resistant to acid, alkali, salt and other properties.
The centrifuge has such features as smooth start-up ,adjustable separating factor ,large volume,high efficiency,easy & convenient operation,quick discharge ,good safety,clean environment,low labor strength,etc.
Model PD centrifuge has got rapid of traditional suspending type of leg-support,instead,it adopts flat-plate counterweight and high- viscosity damping agent vibration isolator for absorbing the vibration and the installation requires no concrete foundation.
Name: The bowl(drum) of centrifuge
The bowl(drum) is the main parts of centrifuge.
There are many holes on the bowl(drum).The solid will leave at the filter bag,and the liquid will flow to the outlet at the bottom.
The rotating speed of PS450 is 0-2000rpm.
The user can adjust the speed by control cabinet.
Name: The small/big cover
The customer can choose small/big cover, we can design.
On the cover, it is feeding inlet,washing port,viewport,etc.
If the raw liquid is inflammable,such as ethyl alcohol,we can add nitrogen gas inlet for user. And it you need long distence control of explosive-motor, please tell us.
Other requirement,please inform us,we can design for you.
Design features of this platform centrifuge:
1. Structure designed to effectively eliminate a health corner, the structure transition is smooth, the surface has been polished, outside structure parts, fasteners, and drum are not stainless steel, shell clamshell, can centrifuge drum shell and mezzanine space for thorough cleaning.
2. Shell flip, set the feed pipe, wash pipe, mirrors, lighting hole. Automatic online cleaning system(sprinkler system), the centrifuge shell wall, inside and outside surface of the drum, set the liquid pool surface is not visible centrifuge parts cleaning Ensure the cleanliness requirements, meet the GMP standard.
3. Simple structure, easy operation and maintenance.
4. Versatility for a wide range. Both for the solid phase for the separation of granular suspensions can also be used for the separation of fibrous materials.
5. Inverter can be started, start a smooth, adjustable separation factor; non-contact power brake system. anti-static belt drive; body enclosed structure, seals silicone rubber of fluorine rubber, anti-explosion requirements for toxic and flammable and explosive applications.
6. Nitrogen protection system to ensure that the centrifuge chamber and the outside air.
7. Grain is not easy to break.
Application of this platform centrifuge:
It is applicable to the separation of suspension containing solid-phase granules with the diameter greater than 0.01mm.And it is especially applicable to the filtering of toxic and flammable materials.
Technical parameters of this platform centrifuge:
| Type | Drum |
Separation factor |
Motor power |
Weight(kg) | Dimension(mm) | |||
| Dia.(mm) | Volum(L) | Load limit(kg) | Rotation speed(r/min) | |||||
| PD800 | 800 | 115 | 155 | 1500 | 1008 | 7.5 | 1800 | 1800X1050X1140 |
| PD1000 | 1000 | 170 | 230 | 1200 | 806 | 11 | 2800 | 2030X1300X1220 |
| PD1250 | 1250 | 280 | 400 | 950 | 631 | 18.5 | 4200 | 2350×1500×1370 |
| PD1500 | 1500 | 500 | 650 | 850 | 607 | 30 | 5200 | 2900X1900X1570 |
