| Filtration Area: | 6 Square Meter | Plate External Size: | 505*505mm |
|---|---|---|---|
| Filter Chamber Volume: | 91L | Filter Plate Number: | 14pcs |
| Filtrating Pressure: | 0.6Mpa | Cake Discharge: | Two Workers By Hand Operation |
| Motor Power: | 2200w | Compress Type: | Hydraulic System |
| Plate Material: | Reinforced Polypropylene | Filter Medium: | Filter Cloth |
| Liquid Discharge Type: | Open Flow Or Close Flow | Filter Cake Discharge Type: | Manual Discharge |
| Feeding Type: | Center Feeding | Voltage: | 380V/220V /400-450V/Customized |
| Conditon: | New |

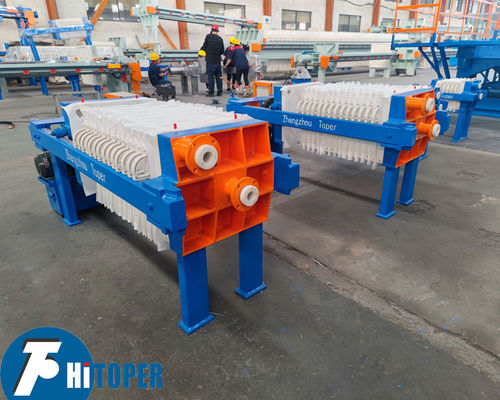

6m2 Small Hydraulic Compress Industrial Filter Press, 450x450mm PP Chamber Plate Filtration Machine
This filtration specialist of filter press is the primary and intermittent filter equipment. It is used in solid-liquid (solid content is better of 5%-50%) separation of varipis suspension. widely used in mining, chemical. metallurgy, medicine, textile, food, inorhanic salt and other industries.
This filtration specialist of filter pressconsists of beam, filter plate, hydraulic unit. and control cabinet.The beam is made of 45# carbon steel with blasting process, which is high intensity and corrossion resisted.
Main structure of the filter press machine :
01. Frame
The frame is the foundation of the filter press. It has thrust plates and a compression head at each end, connected by beams on either side. The beams support the filter plates and/or filter frame, along with the compression plate.
1. Thrust plate: This connects to the support, anchoring one end of the filter press to the foundation. In a chamber filter press, the thrust plate has a feed port in the center and four additional holes at the corners. The top two holes are for the inlet of the wash liquid or compressed gas, while the bottom two serve as the outlet (or filtrate outlet in an underflow configuration).
2. Compression plate: This holds the filter plates and frame in place. Rollers on either side support the compression plate as it rolls along the beam's tracks.
3. Beam: This is the load-bearing component. Depending on the corrosion protection requirements of the operating environment, it can be coated with rigid polyvinyl chloride, polypropylene, stainless steel, or a new type of anti-corrosion coating.
02.Compress mechanism: Manual, Mechanical, or Hydraulic.
This type of filter machine is hydraulic compress type : The hydraulic clamping mechanism consists of a hydraulic station, a cylinder, a piston, a piston rod, and a Havlan card connecting the piston rod to the clamping plate.
03. Filtering Mechanism:
The filtering mechanism consists of filter plates and filter cloth, with both sides of the filter plates covered with filter cloth. Material enters each filter chamber through the feed holes on the thrust plate. Solid particles, whose particle size is larger than the pore size of the filter medium (filter cloth), are retained in the filter chamber, while the filtrate flows out through the outlet holes below the filter plates.
How to operate a filter press,
The liquid solid mixture is pumped into the filter press, which is made up of a number of recessed filter plates forming chambers. The plates are supported in a fabricated steel frame and is held closed by a force exerted from a hydraulic ram mounted in the frame work at the end of the machine.
Each filter plate is covered by a filter cloth that retains the solid particles, but allowing the liquid to pass through and exit through the ports in the filter plate.
The particles retained gradually build up on the surface of the filter media and after a period of time eventually form a solid cake.
As the cake forms the pressure within the filter press the pressure rises as the filtrate has to pass through the already partially formed cake to exit the chamber. It becomes increasingly more difficult to continue pumping as the press is unable to accept more solids. At this point the feed pump is stroking infrequently and the filtrate flow from the filter press has considerably reduced or completely stopped.
At this point or at a predetermined filtration time or pressure being achieved the cycle is terminated and the fully formed filter cake is discharged.
Basic technical parameter of this filter press equipment:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
