| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XZ80/1000-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 20-30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 50 sets per month for this chamber filter press |
| Filter Area: | 80 Square Meter | Filter Plate Size: | 1000mm Of Square Type |
|---|---|---|---|
| Filter Chamber Volume: | 1219L | Filter Number: | 46pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 4.0kw |
| Cake Discharge: | Automatically | Voltage: | 380V/220V/400V/Cusomtized |
| Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. | Function: | Separation,concentration,extract,refine,clarify Etc. |
| Filter Plate Material: | Reinforced Polypropylene | Feeding Method: | Center Feed |
| Filter Medium: | Filter Cloth | Color: | White + Orange |
| Filter Cake Discharge Method: | Automatic By Mechanical Hand | Liquid Flow Method: | Open Flow Or Close Flow |
| Washing Type: | Yes Or No . | ||
| Highlight: | filter press machine,filter press equipment |
||

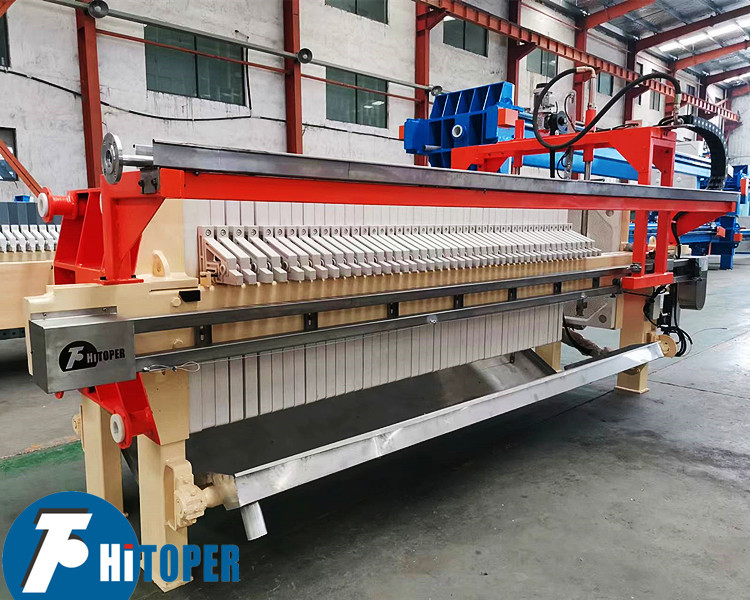

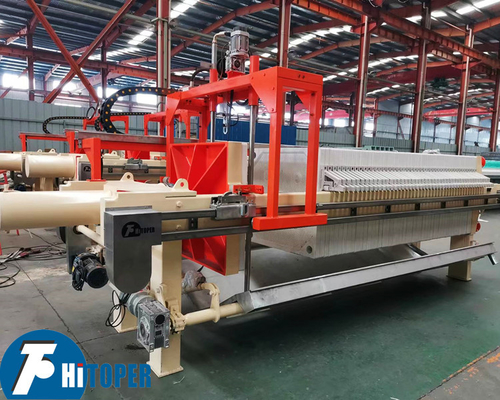

PP Plate Automatic Industrial Filter Press
Our Filter press is divided into plate frame filter press and chamber filter press,it is an intermittent pressure filter equipment for solid-liquid separation of various suspensions.It relies on a compaction device to compact the filter plate, and then uses material pump to presses the
suspension material pump into the filter chamber. The filter cloth is used to achieve the purpose of separating solid particles from liquid materials.The structure of the whole machine is simple and the separation effect is good.It is easy to use and has a wide range of applications.
1. Specifications : Types of 380, 450, 630, 870, 1000, 1250, 1500, 2000, and various special-shaped filter plates and filter presses.
2. The filtering area is up to 2000m
3. Filter plate material: stainless steel, cast iron, rubber, reinforced polypropylene, glass fiber with high temperature
resistance, pp-30 elastomer membrane plate.
4. Liquid flow forms are open flow, dark flow, washable, non-washable, medium feed, corner feed, upper and middle
feed and other forms.
5. Filter plate compaction methods are: manual sçrew compaction, electro-mechanical com paction fluid, and hydraulic cylinder compaction. For special requirements of the filter press can be resolved separately.
6. The whole maçhine doęs not include material infusion pumps and filter cloths. If nece ssary supplies can be specified in the contract.
7. According to the special requirements of customers, our company can produce non standard models and products
suitable for your needs.
8. If technical data changes due to model improvements, the actual size at the time of ordering shall prevail.
Application of the industrial filter press :
01. Chemical Industry
Used in processes such as catalyst recovery, chemical slurry dehydration, and dye intermediate purification. For example, in the copper sulfate purification process, filter presses can process 50 m³/day of mother liquor, ensuring purity requirements for the evaporation and crystallization process.
02.Pharmaceutical Industry
In antibiotic production, impurities are separated from fermentation broth to ensure drug quality and stability. Chamber filter presses can dehydrate and purify APIs to meet high hygiene standards.
03.Environmental Protection
Treats municipal sludge, industrial wastewater, and river dredged sludge. For example, a single plate and frame filter press can process
100tons/hour of municipal sludge.
04.Food Processing
Used for clarification and filtration of products such as syrups and juices, removing impurities and improving clarity and taste.
05.New Energy Industry
Diaphragm filter press technology is used for solid-liquid separation in the production of lithium-ion battery cathode materials, achieving efficient and energy-saving production.
Main Features of this industrial filter press.
1. Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. High pressure double crank to control the die opening and closing.
4. Running in a high automatization and intellectualization,no pollution.
Toper automatic filter press technical parameters.
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XZ100/1250-30U | 100 | 1250×1250 | 30 | 1479 | 36 | 0.6 | 4.0 | 8307 | 5020×1800×1600 |
| XZ120/1250-30U | 120 | 1777 | 43 | 9308 | 5470×1800×1600 | ||||
| XZ140/1250-30U | 140 | 2094 | 51 | 10455 | 5990×1800×1600 | ||||
| XZ160/1250-30U | 160 | 2381 | 58 | 11492 | 6450×1800×1600 | ||||
| XZ180/1250-30U | 180 | 2669 | 65 | 12494 | 6905×1800×1600 | ||||
| XZ200/1250-30U | 200 | 2965 | 72 | 13504 | 7360×1800×1600 | ||||
| XZ220/1250-30U | 220 | 3285 | 80 | 14652 | 7880×1800×1600 | ||||
| XZ250/1250-30U | 250 | 3737 | 91 | 16227 | 8600×1800×1600 | ||||
| XZ200/1500-30U | 200 | 1500×1500 | 3025 | 49 | 0.6 | 7.5 | 20030 | 6400×2200×1900 | |
| XZ250/1500-30U | 250 | 3739 | 61 | 22978 | 7225×2200×1900 | ||||
| XZ300/1500-30U | 300 | 4413 | 74 | 26026 | 8130×2200×1900 | ||||
| XZ350/1500-30U | 350 | 5210 | 86 | 29220 | 8570×2200×1900 | ||||
| XZ400/1500-30U | 400 | 6007 | 99 | 32574 | 9880×2200×1900 | ||||
| XZ450/1500-30U | 450 | 6743 | 111 | 35586 | 10820×2200×1900 | ||||
| XZ500/1500-30U | 500 | 7478 | 123 | 38606 | 11560×2200×1900 | ||||
| XZ600/2000-30U | 600 | 2000×2000 | 40 | 12000 | 85 | 0.6 | 7.5 | 49000 | 11100×3000×2500 |
| XZ700/2000-30U | 700 | 14000 | 99 | 53000 | 12200×3000×2500 | ||||
| XZ800/2000-30U | 800 | 16000 | 107 | 57000 | 13350×3000×2500 | ||||
| XZ900/2000-30U | 900 | 18000 | 127 | 61000 | 14500×3000×2500 | ||||
| XZ1000/2000-30U | 1000 | 20000 | 141 | 65000 | 15600×3000×2500 |
How to order filter press
According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XZ30/870-30U, XZ100/1000-30U or others.
2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.
3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
