| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XY4/450-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Best one we can give. |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 200 sets per month |
| Filter Area: | 4m2 | Plate Size: | 450*450mm |
|---|---|---|---|
| Solid Batch Capacity: | 60L | Filter Plate Qty.: | 9 Pieces Of Middle Plates |
| Feeding Pressure: | 6bar | Solid Discharge: | Manual By Hand. |
| Power Supply: | 2.2kw | Compress Model: | Hydraulic System |
| Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. | Function: | Separation,concentration,extract,refine,clarify Etc. |
| Color: | White +blue + Orange | Filter Plate Material: | Reinforced Polypropylene |
| Filter Medium: | Filter Cloth | Feeding Method: | Center Feed |

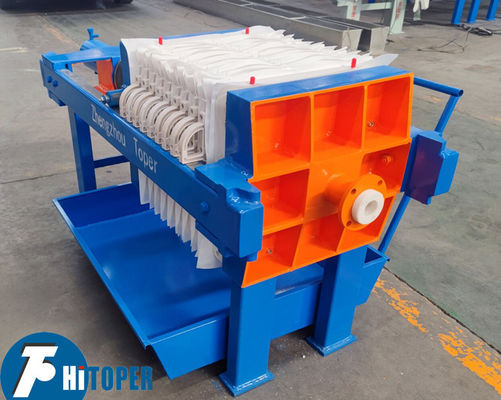

Chemical Textile and Printing Wastewater Treatment Industrial Filter Press
This plate filter press are widely applied in the below scopes,
Chemicals: dyes, pigments, alum white powder, manganese, caustic soda, soda ash, chlor-alkali salt mud, white carbon black, saponin, graphite, bleaching powder, Synaptic powder, phosphor, sodium hydrosulfite, potassium chlorate, potassium sulfate, ferrous sulfate, ferric hydroxide, water purification agent (aluminum sulfate, chloride, basic aluminum chloride) and so on.
Medicine: Antibiotics (chlortetracycline, erythromycin, spiramycin, Jinggangmeisu, Midecamycin, tetracycline, berberine, oxytetracycline), calcium phytate, medicine inositol, growth derived sand, organic phosphorus, glucoamylase.
Food: rice wine, white wine, fruit juice, soft drinks, beer, yeast, citric acid, vegetable protein, plant density sweetener, glucose, stevia, maltose, starch, rice flour, corn syrup, gum, carrageenan, MSG, spices, sauce liquid , oral, soy, seaweed.
Refining: white oil, sesame oil, light oil, glycerin, machine oil, vegetable oil.
Clay: kaolin, bentonite, activated clay, clay, electronic ceramics clay.
Sewage treatment: a variety of liquid chemical waste water, sewage smelting, electroplating wastewater, sewage leather, printing and dyeing wastewater, sewage brewing, pharmaceutical waste water, sewage and other environmental particulates clarify new equipment purification process.
Detailed informations of this plate filter press:
1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.
4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.
Operation process of this plate filter press:
1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.
2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.
3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.
4. A worker will have to discharge the cake manually.
Technical parameter of this plate filter press:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
