| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XZ60/870-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 20-30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 50 sets per month for this chamber filter press |
| Filter Area: | 60m2 | Filter Plate Size: | 870*870mm |
|---|---|---|---|
| Filter Chamber Volume: | 902L | Filter Number: | 46pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 4000w |
| Cake Discharge: | Automatically | Voltage: | Customized As You Need |
| Plate Material: | Reinforced Polypropylene | Feeding Type: | Pump Feeding |
| Voltage: | 380V/220V /400-450V/Customized | Color: | Orange Or Customized |
| Conditon: | New | ||
| High Light: | filter press machine,filter press equipment |
||

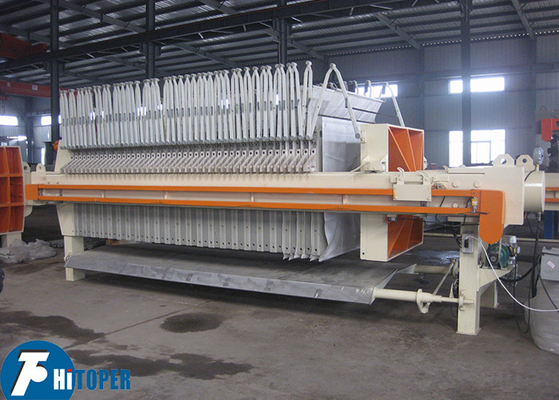

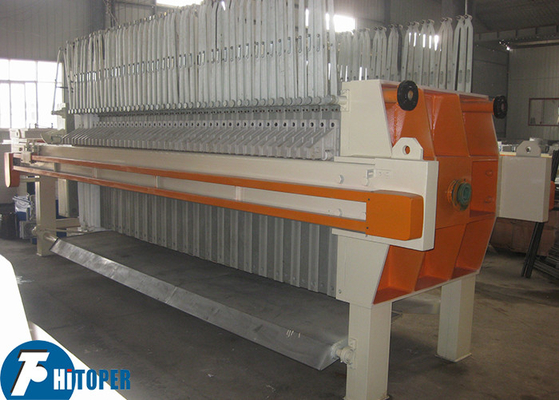

902L Chamber Volume Industrial Filter Press With Automatic Cake Discharge Of Filter Cloth Varicose System
This filter press is widely used to coal washing, inorganic, mining, alcohol, petroleum, metallurgy, chemicals, fuel, medicine, food, textile, printing, dyeing, paper making, sewage treatment and other fields.
This automatic industrial filter press features,
Automatic press
Automatic feeding(double feeding) and filtrating
Automatic squeezing
Automatic cake washing
Automatic air blowing
Automatic open
Automatic plate shifting (by groups) and auto cake discharging.
Automatic cloth washing--- The washing cycles can be set according to requirements(can be regulated on site)
Automatic drip tray close when cloth washing and filtrating, automatic open when cake discharging.
Operation process includes the following,
1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.
2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.
3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.
4. The plate shifter device will help to pull the plates one by one, and cake will discharge automatically.
Our filter press technical parameters.
|
Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW)
|
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XZ30/870-30U | 30 |
870×870 (Option 800×800) |
30 | 460 | 23 | 0.6 | 2.2 | 3046 | 3180×1200×1300 |
| XZ40/870-30U | 40 | 595 | 30 | 3593 | 3570×1200×1300 | ||||
| XZ50/870-30U | 50 | 748 | 38 | 4057 | 4110×1200×1300 | ||||
| XZ60/870-30U | 60 | 902 | 46 | 4597 | 4550×1200×1300 | ||||
| XZ70/870-30U | 70 | 1056 | 54 | 5136 | 4990×1200×1300 | ||||
| XZ80/870-30U | 80 | 1210 | 62 | 5636 | 5430×1200×1300 | ||||
| XZ50/1000-30U | 50 | 1000×1000 | 752 | 28 | 0.6 | 4.0 | 4128 | 4040×1500×1400 | |
| XZ60/1000-30U | 60 | 914 | 34 | 4636 | 4460×1500×1400 | ||||
| XZ70/1000-30U | 70 | 1063 | 40 | 5143 | 4760×1500×1400 | ||||
| XZ80/1000-30U | 80 | 1219 | 46 | 5651 | 5120×1500×1400 | ||||
| XZ100/1000-30U | 100 | 1505 | 57 | 6628 | 5870×1500×1400 | ||||
| XZ120/1000-30U | 120 | 1816 | 69 | 7644 | 6500×1500×1400 |
How to order filter press
According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XZ30/870-30U, XZ100/1000-30U or others.
2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.
3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
