Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | SS300 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 10-15 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 100 sets per month for this basket centrifuge |
Drum Diameter: | 300mm | Drum Volume: | 8L |
---|---|---|---|
Drum Load Limit: | 10kgs | Drum Rotate Speed: | 1900r/min |
Separation: | 819 | Motor: | 0.75kw |
Weight: | 130kgs | Dimension: | 800*620*500mm |
Function: | Solid-liquid Separation | Material: | Stainless Steel Or Other Demand |
Condition: | New | Type: | Settling Type |
Solid Bowl Basket Centrifuge for Settling Type Industrial Separation
Application scope:
Suitable for viscosity, hydrophilicity, difficult to separate suspension that containing the fineness of particulate or fibrous material; also applies to a paste, separating the solid-like materials; and widely used in the textile, food dehydrated .
Environment, Transport, Storage requirements
1.Working environment: Temperature 0 ~ 40 ℃; relative humidity less than 85%.
2.Transportation: centrifuge during shipment, may not roll upside down, not stacked, to prevent water intrusion.
3.Handling: Centrifuge handling process must based on the center of its gravity position to determine the lifting force or Scraper point, try to keep the centrifuge in horizontal position when lifting or scraper, avoid tumbling and upside down. Site for lifting is the inner side of three
column foot, Scraper end position for the whole plane.
4.Storage: centrifuge should be placed no more than 85% relative humidity, temperature 0 ~ 40 ℃, no corrosive media cover field.
Operation principle
Three-foot upper discharging centrifuge divided into two types according to the separation principle:
ilter type (SS) and settlement type (SSC) ,and the feeding , discharing is intermittent.

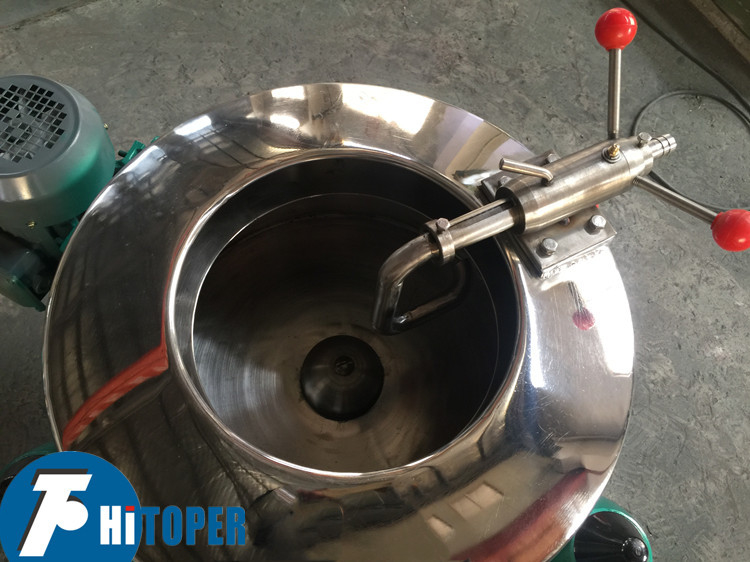

Settlement type (drum cylinder wall without holes)
This type of centrifuge can be charged before star,and also at medium speed or high speed (depending on the physical and chemical properties of the material ) .
With the centrifugal force,the denser of large granule or liquid is deposited by a drum wall side (outer layer), the density of smaller particles or liquid (generally liquid) in the drum stopped by the liquid inlet side (inner), due to the continuous feeding, inner lining of the small density of the liquid from the mouth of the drum block liquid spill, through the passage between the shell and the liquid tank from the liquid collecting pipe discharge, or use the liquid siphon device to outside.
When the drum precipitation (liquid or solid phase) meet the requirements, stop charging, turn off the power, the braking, discharge the cake (or settlement liquid) from the drum, to complete a work cycle.
Technical Parameters Of The Three-foot Structure Solid Bowl Basket Centrifuge,Settling Type Industrial Separator:
Type | Drum |
Separation factor (w2r/g) |
Motor power (kw) |
Weight (kg) |
Dimension (mm) |
|||
Dia. (mm) |
Volum (L) |
Load limit (kg) |
Rotation speed (r/min) |
|||||
SS300 | 300 | 8 | 10 | 1900 | 819 | 0.75 | 130 | 800×620×500 |
SS450 | 450 | 20 | 25 | 1600 | 725 | 1.5 | 200 | 980×720×625 |
SS600 | 600 | 45 | 80 | 1450 | 755 | 3.0 | 600 | 1350×990×750 |
SS800 | 800 | 98 | 135 | 1200 | 640 | 5.5 | 1300 | 1740×1380×1000 |
SS1000 | 1000 | 140 | 195 | 1000 | 560 | 7.5 | 1500 | 1950×1560×1050 |
SS1200 | 1200 | 200 | 280 | 800 | 430 | 15/11 | 2030 | 2370×1600×1000 |
SS1500 | 1500 | 360 | 400 | 650 | 304 | 15 | 4060 | 2640×1850×1100 |

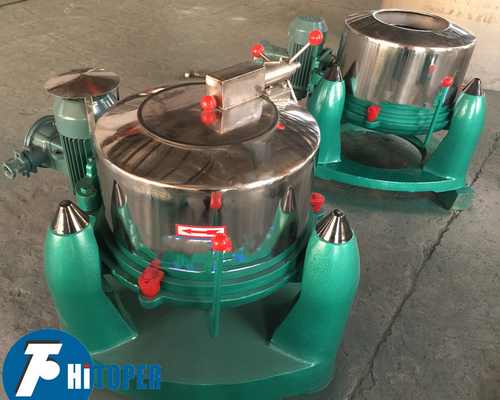

Centrifuge with lid.
