| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | SS1000 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 100 sets per month for this basket centrifuge |
| Drum Diameter: | 1000mm | Drum Volume: | 140L |
|---|---|---|---|
| Drum Load Limit: | 195kgs | Drum Rotate Speed: | 1000r/min |
| Separation: | 560 | Motor: | 7.5kw |
| Weight: | 1500kgs | Dimension: | 1950*1560*1050mm |
| Filter Medium: | Filter Bag | Conditinon: | New |
| Function: | Solid-liquid Separation | Drum Material: | Stainless Steel |
| Feeding Method: | Manual Or Pump Feeding | Solid Discharge Methold: | Upper Manual |
| Warranty: | 12 Months | Voltage: | Customer Local Voltage |

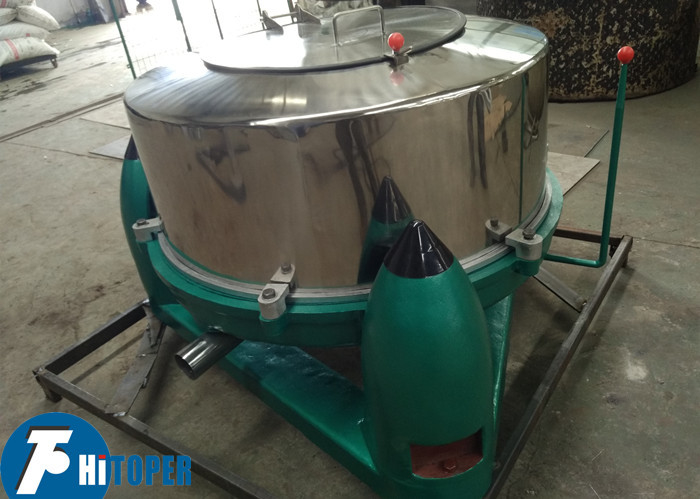

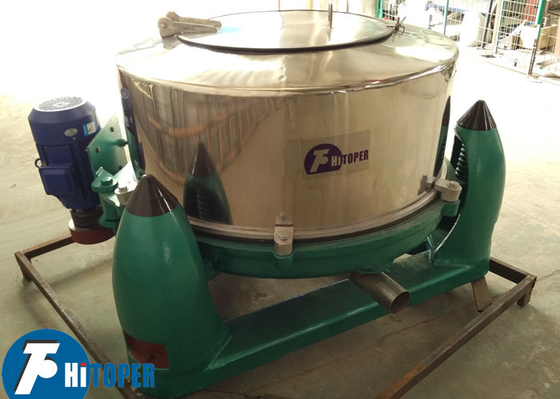

SS1000 Three-foot Upper Manual Discharge Chemical Powder Dehydration Industrial Basket Centrifuge Machine
This machine is a three-column centrifuge, known as three foot centrifuge, named after the bottom of the support legs is three columns, arranged in a triangle with equal portions. This SS centrifuge is a three-foot solid-liquid separation equipment, mainly to remove liquids or solids from suspension in the solid- liquid separation.
The series of centrifuge has features of simple structure, easy operation, each operation can be adjusted, residues can be washed, the solid particles are not easy to break, adaptability.Widely used in chemical industry, light industry, textile, food, pharmaceutical, metallurgy, mining, each and environmental protection industries.
In normal conditions, three-foot centrifuge is low speed and the separation accuracy is not high, so we usually draw it as a coarse filtration/separation equipment to separate large amount of solid with less demands of liquid clarity.
Basket centrifuge technical parameters:
| Type | Drum |
Separation factor (w2r/g) |
Motor power (kw) |
Weight (kg) |
Dimension (mm) |
|||
|
Dia.( mm) |
Volum (L) |
Load limit (kg) |
Rotation speed (r/min) |
|||||
| SS300 | 300 | 8 | 10 | 1900 | 819 | 0.75 | 130 | 800×620×500 |
| SS450 | 450 | 20 | 25 | 1600 | 725 | 1.5 | 200 | 980×720×625 |
| SS600 | 600 | 45 | 80 | 1450 | 755 | 3.0 | 600 | 1350×990×750 |
| SS800 | 800 | 98 | 135 | 1200 | 640 | 5.5 | 1300 | 1740×1380×1000 |
| SS1000 | 1000 | 140 | 195 | 1000 | 560 | 7.5 | 1500 | 1950×1560×1050 |
| SS1200 | 1200 | 200 | 280 | 800 | 430 | 15/11 | 2030 | 2370×1600×1000 |
| SS1500 | 1500 | 360 | 400 | 650 | 304 | 15 | 4060 | 2640×1850×1100 |
Working principle of the dehydrantion industrial basket centrifuge
The material from the top to join the drum under the action of the centrifugal force field, the liquid spreads through the wall of the drum filter into the filter body floor chassis, a liquid outlet from the discharge, and solid materials retained in the drum, removable by hand from the top of the centrifuge from the electrical control, two-speed motor. Can automatically complete a work cycle. That is, start a slow start a high-speed running an electric brake. Can also be used with inverter.
Basket centrifuge order notice:
Different requirements for separation, we have designed for customers to choose the appropriate type, so the customer order, it can confirm the following circumstances:
Material: the material contact parts of the material for stainless steel, titanium, carbon steel, rubber lining, PTFE lining, etc.
Drive model: Normal asynchronous motor, explosion-proof asynchronous motor or frequency.
Brake: hold brake or swelling brake
Base: a base and without casting base (with shock absorber)
Our Service:
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.We can also send our technical engineer to your area guide the installation,debugging and solve practical problems if required .
