Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | SS1000 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 10-15 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 100 sets per month for this basket centrifuge |
Drum Diameter: | 1000mm | Drum Volume: | 140L |
---|---|---|---|
Drum Load Limit: | 195kgs | Drum Rotate Speed: | 1000r/min |
Separation: | 560 | Motor: | 7.5kw |
Weight: | 1500kgs | Dimension: | 1950*1560*1050mm |
Filter Medium: | Filter Bag | Feeding Type: | Upper Feeding |
Cake Discharge Type: | Manual Discahrge | Certificate: | CE |
Conditon: | New | ||
Highlight: | basket type centrifuge,centrifugal filtration equipment |
Solid-liquid Separation Special Plastic Lining Manual Top Discharge Industrial Basket Centrifuge
SS type basket centrifuge is artificial, intermittent operation filtering centrifuge. Suitable for separating solid particles containing≥0.01mm suspension, solid particles can be granular, crystalline and other forms are also available for items(such as yarn-beam, textiles, etc.) and dehydration. The series of centrifuge simple structure, easy operation, each operation can be adjusted, residues can be washed, the solid particles are not easy to break, adaptability. Widely used in chemical industry, light industry, textile, food, pharmaceutical, metallurgy, mining, each and environmental protection industries.
Basket centrifuge technical parameters:
Type | Drum |
Separation factor (w2r/g) |
Motor power (kw) |
Weight(kg) |
Dimension(mm) |
|||
Dia.(mm) | Volum(L) |
Load limit(kg) |
Rotation speed(r/min) |
|||||
SS300 | 300 | 8 | 10 | 1900 | 819 | 0.75 | 130 | 800×620×500 |
SS450 | 450 | 20 | 25 | 1600 | 725 | 1.5 | 200 | 980×720×625 |
SS600 | 600 | 45 | 80 | 1450 | 755 | 3.0 | 600 | 1350×990×750 |
SS800 | 800 | 98 | 135 | 1200 | 640 | 5.5 | 1300 | 1740×1380×1000 |
SS1000 | 1000 | 140 | 195 | 1000 | 560 | 7.5 | 1500 | 1950×1560×1050 |
SS1200 | 1200 | 200 | 280 | 800 | 430 | 15/11 | 2030 | 2370×1600×1000 |
SS1500 | 1500 | 360 | 400 | 650 | 304 | 15 | 4060 | 2640×1850×1100 |
Basket centrifuge order notice:
Different requirements for separation, we have designed for customers to choose the appropriate type, so the customer order, it can confirm the following circumstances:
Material: the material contact parts of the material for stainless steel, titanium, carbon steel, rubber lining, PTFE lining, etc.
Drive model: Normal asynchronous motor, explosion-proof asynchronous motor or frequency.
Brake: hold brake or swelling brake
Base: a base and without casting base (with shock absorber)
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.

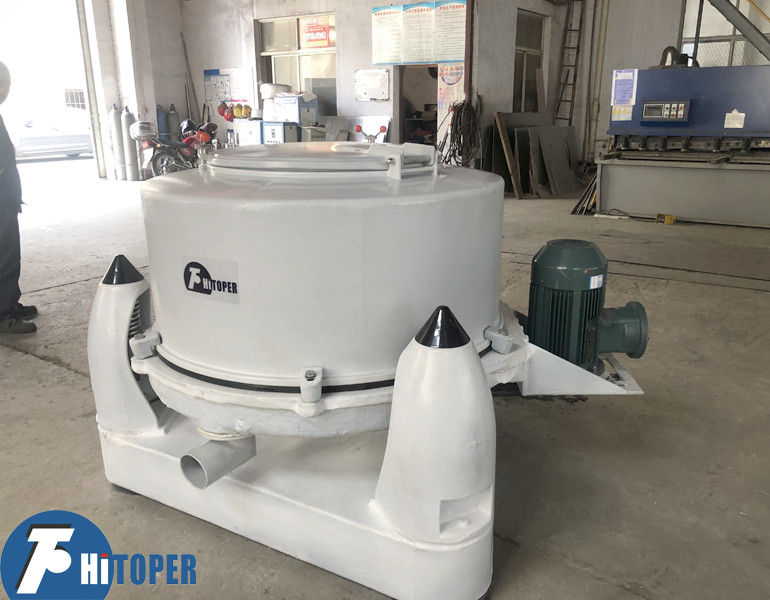

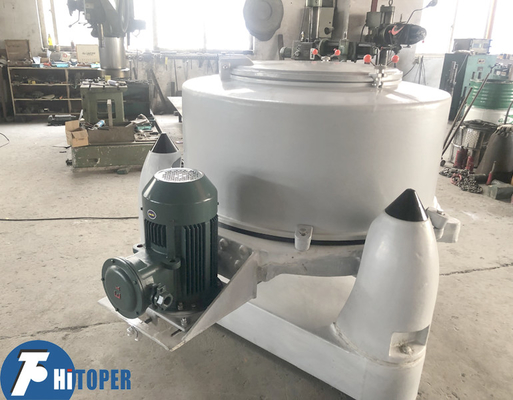

Common standard centrifuge picture.
Various centrifuges for your choose:
