Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | GF125 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 10-15 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 60 sets per month for this tubular centrifuge |
Drum Diameter: | 125mm | Drum Volume: | 8L |
---|---|---|---|
Drum Rotate Speed: | 14000r/min | Separation Factor: | 15700 |
Water Flow Capacity: | 2500L/H | Power: | 3.0kw |
Inner Dia.: | 125mm | Motor: | 380V,50hz Or As Require |
Material: | Stainless Steel | Warranty: | 12 Months |
Discharge: | Manual | ||
Highlight: | liquid solid separation centrifuge,high speed centrifuge machine |

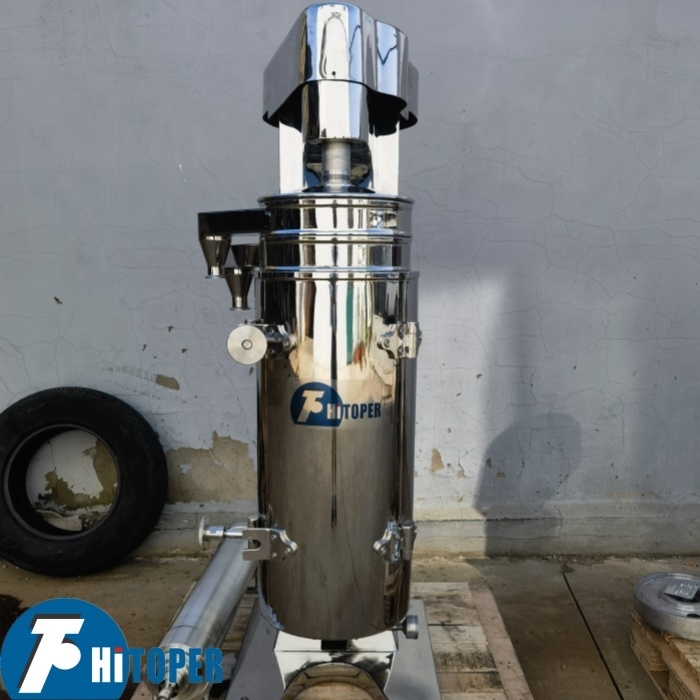

High Speed Virgin Coconut Oil Tubular Centrifuge GF Type 8L Drum Volume For Food Oil
The tubular centrifuge is used primarily for the continuous separation of liquids from liquids or of very fine particles from liquids, although in some cases it is employed as a batch-type centrifuge. In general, it is used when higher centrifugal fields are required for separation.
Working principle:
The principle of the tubular centrifuge is to effectively separate the materials of different specific gravity by the centrifugal force generated by the centrifugal force. According to different separation principles, tubular centrifuges can be divided into two types: clarified type (GQ) and separated type (GF). The main function of clarified tube centrifuge is to treat two separations of liquid and solid; The main function of the centrifuge is to treat liquids in liquid or liquid, liquid and solid phases. The tubular separator consists of a fuselage, a transmission, a drum, and a collecting tray. The inlet bearing housing is composed of a flexible main shaft on the upper part of the drum and a damper bearing on the lower part. The motor passes through the transmission, so that the axis of the drum itself rotates at a high speed, forming a strong centrifugal force field inside the drum, and the material has a bottom inlet inlet. The centrifugal force of the drum causes the liquid to flow upward along the inner wall of the drum, so that the material liquid is separated according to the density difference of the different components, and the layer is discharged from the outlet of the liquid pan.
The tubular centrifuge is characterized by the separation of solid phase impurities in the liquid by the machine to achieve a clarifying effect. It is used to separate various suspensions that are difficult to separate. It is especially suitable for solid-liquid separation with large concentration and small viscosity, fine solid phase particles and small solid-liquid gravity. The solid phase should be taken out after shutdown.
A few typical uses are as follows:
●The purification of vaccines (uncentrifuged vaccines contain a large amount of nonessential and harmful material),
●Purification of lubricating and industrial oils,
●Clarification and purification of food products such as essential oils, extracts, and fruit juices, and
●Separation of immiscible liquids that cannot be separated by gravity.
Technical parameters:
Model | Drum | Nozzle diameter (mm) |
Productivity (water flow) (kg/h) |
Power (KW) |
Weight (kg) |
||||
Inner diameter (mm) |
Height (mm) |
Volume (L) |
Rotary speed (r/min) |
Separation factor | |||||
GF45 | 45 | 280 | 0.4 | 28000 | 19800 | 2,3 | 100 | 0.55 | 90 |
GF75 | 75 | 450 | 2.2 | 19000 | 15700 | 4,6 | 600 | 1.5 | 300 |
GF105 | 105 | 730 | 6 | 16300 | 15620 | 6,8 | 1200 | 2.2 | 570 |
GF125 | 125 | 730 | 7.4 | 15000 | 18000 | 5,8,9 | 1500 | 3.0 | 610 |
GF150 | 142 | 730 | 10 | 14000 | 15700 | 8,10,12 | 2500 | 3.0 | 665 |
Our services
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
The tubular centrifuge is a kind of precision equipment, which has specialization, solid and liquid with small solid particles and similar specific gravity, and liquid-liquid solid separation. It is selected by many industries such as food, pharmaceutical, chemical and biological products. device.
