Stainless Steel Liquid Solid Separation Centrifuge Large Capacity 8L Drum Volume

Stainless Steel Liquid Solid Separation Centrifuge Large Capacity 8L Drum Volume

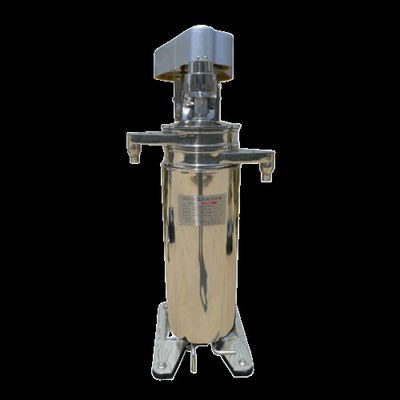

High Speed Tubular Centrifuge, also called Tubular Bowl Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation.

It is indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. High Speed Tubular Centrifuge working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.

Working principle:

The tubular centrifuge is characterized by the separation of solid phase impurities in the liquid by the machine to achieve a clarifying effect. It is used to separate various suspensions that are difficult to separate. It is especially suitable for solid-liquid separation with large concentration and small viscosity, fine solid phase particles and small solid-liquid gravity. The solid phase should be taken out after shutdown.

The principle of the tubular centrifuge is to effectively separate the materials of different specific gravity by the centrifugal force generated by the centrifugal force. According to different separation principles, tubular centrifuges can be divided into two types: clarified type (GQ) and separated type (GF). The main function of clarified tube centrifuge is to treat two separations of liquid and solid; The main function of the centrifuge is to treat liquids in liquid or liquid, liquid and solid phases. The tubular separator consists of a fuselage, a transmission, a drum, and a collecting tray. The inlet bearing housing is composed of a flexible main shaft on the upper part of the drum and a damper bearing on the lower part. The motor passes through the transmission, so that the axis of the drum itself rotates at a high speed, forming a strong centrifugal force field inside the drum, and the material has a bottom inlet inlet. The centrifugal force of the drum causes the liquid to flow upward along the inner wall of the drum, so that the material liquid is separated according to the density difference of the different components, and the layer is discharged from the outlet of the liquid pan.

Technical parameters:

Characteristics

The clarification effect is achieved by separating the solid phase impurities in the liquid by the machine. It is used to separate various suspensions that are difficult to separate. It is especially suitable for solid-liquid separation with large concentration and small viscosity, fine solid phase particles and small solid-liquid gravity. The solid phase should be taken out after shutdown.

The main disadvantage of tubular centrifuges is intermittent operation. The drum volume is small. It is necessary to shut down frequently to remove sediment. Therefore, it is necessary to strengthen the separation performance of the tubular centrifuge by strengthening separation theory research and centrifugal separation process research.

Our services

Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.

Why choose us:

1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.

Tubular Centrifuges are designed to separate low percentages (<2%) of suspended solids which are between 1 and 0.001 microns in size, and to separate two immiscible liquids of differing densities. Tubular Centrifuges operate at high speed, generating up to 20,000 gravities of centrifugal force, causing solids to collect inside the smooth bore of the stainless steel tube where they are easily recovered. Tubular Centrifuges are an excellent replacement for many traditional filter and membrane applications due to their high efficiency (virtually no product loss) and small footprint. Additionally, unlike traditional filters, they never require pre-coating or back-flushing and can never clog.
