Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | XZ140/1250-30U |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 10-15 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 500 sets per month for this industrial filter press |
Filtration Area: | 140m2 | PP Plate Dimension: | 1250*1250mm |
---|---|---|---|
Filtration Capacity: | 2094L | Plate Pieces: | 51pcs |
Filtrating Pressure: | 0.6Mpa | Cake Discharge: | Automatically |
Motor: | 4000w | Control System: | Centralized Control |
Plate Material: | Reinforced Polypropylene | Feeding Method: | Pump Feeding |
Pressing Type: | Hydraulic Compress | Filter Medium: | Filter Cloth |
Conditon: | New | ||
Highlight: | filter presses for sludge treatment,filter press equipment |

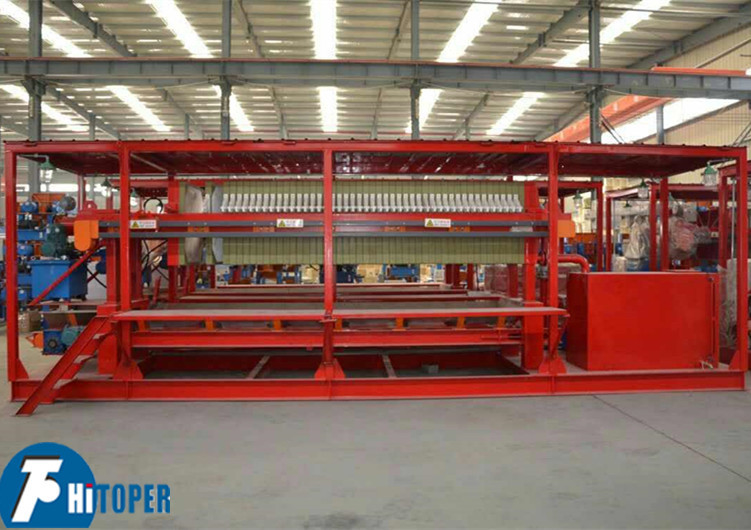

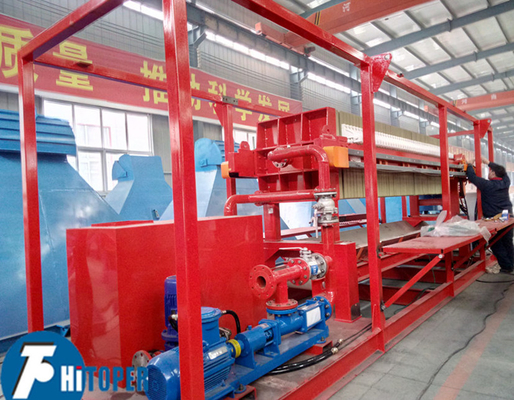

Movable platform industrial filter press machine use for oil field exploration drilling sludge
Application:
Drilling sludge, chemical sludge, industrial sludge, oil field exploration, transportation, survey and so on sludge, also includes from the oil field development oil production and the construction work site, the storage tank natural settlement produces some sludge, flotation slag, Grease trap bottom sludge and residual activated sludge and so on.
As the sludge contains heavy metals, benzene, phenols and other toxic substances, this sludge is classified as hazardous waste. The ratio of oil sludge is 40 times larger than conventional sludge and the compressibility is 20 times larger than that of conventional sludge, the particle is so fine. Therefore, it is difficult to achieve the three-phase separation of oil, water and particle by conventional sludge treatment. HI-TOPER oil sludge treatment technology mainly using oil sludge conditioning, membrane filter press machine for solid-liquid separation, the formation of oil-bearing mud cake, water, oil, to reach ultimate realization of oil sludge resources, harmless treatment.
Detailed informations:
1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.
4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.
Operation process includes the following,
1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.
2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.
3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.
4. The plate shifting device will help to open the plates one by one automatically.
Technical parameter:
Type |
Filter area (m2) |
Filter plate size (mm)
|
Filter cake thickness (mm) |
Filter chamber volume (L)
|
Filter plate number (PCS)
|
Filtrating pressure (MPa)
|
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
XZ100/1250-30U | 100 | 1250×1250 | 30 | 1479 | 36 | 0.6 | 4.0 | 8307 | 5020×1800×1600 |
XZ120/1250-30U | 120 | 1777 | 43 | 9308 | 5470×1800×1600 | ||||
XZ140/1250-30U | 140 | 2094 | 51 | 10455 | 5990×1800×1600 | ||||
XZ160/1250-30U | 160 | 2381 | 58 | 11492 | 6450×1800×1600 | ||||
XZ180/1250-30U | 180 | 2669 | 65 | 12494 | 6905×1800×1600 | ||||
XZ200/1250-30U | 200 | 2965 | 72 | 13504 | 7360×1800×1600 | ||||
XZ220/1250-30U | 220 | 3285 | 80 | 14652 | 7880×1800×1600 | ||||
XZ250/1250-30U | 250 | 3737 | 91 | 16227 | 8600×1800×1600 | ||||
XZ200/1500-30U | 200 | 1500×1500 | 3025 | 49 | 0.6 | 7.5 | 20030 | 6400×2200×1900 | |
XZ250/1500-30U | 250 | 3739 | 61 | 22978 | 7225×2200×1900 | ||||
XZ300/1500-30U | 300 | 4413 | 74 | 26026 | 8130×2200×1900 | ||||
XZ350/1500-30U | 350 | 5210 | 86 | 29220 | 8570×2200×1900 | ||||
XZ400/1500-30U | 400 | 6007 | 99 | 32574 | 9880×2200×1900 | ||||
XZ450/1500-30U | 450 | 6743 | 111 | 35586 | 10820×2200×1900 | ||||
XZ500/1500-30U | 500 | 7478 | 123 | 38606 | 11560×2200×1900 | ||||
XZ600/2000-30U | 600 | 2000×2000 | 40 | 12000 | 85 | 0.6 | 7.5 | 49000 | 11100×3000×2500 |
XZ700/2000-30U | 700 | 14000 | 99 | 53000 | 12200×3000×2500 | ||||
XZ800/2000-30U | 800 | 16000 | 107 | 57000 | 13350×3000×2500 | ||||
XZ900/2000-30U | 900 | 18000 | 127 | 61000 | 14500×3000×2500 | ||||
XZ1000/2000-30U | 1000 | 20000 | 141 | 65000 | 15600×3000×2500 |
