| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XZ80/1000-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 20-30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 50 sets per month for this chamber filter press |
| Filter Area: | 80 Square Meter | Filter Plate Size: | 1000mm Of Square Type |
|---|---|---|---|
| Filter Chamber Volume: | 1219L | Filter Number: | 46pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 4.0kw |
| Cake Discharge: | Automatically | Voltage: | 380V/220V/400V/Cusomtized |
| Function: | Dehydration,separaiton And Concentration | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
| Feeding Method: | Pump Feeding | Filter Plate Material: | Reinforced Polypropylene |
| Filter Medium: | Filter Cloth | Color: | White + Orange |
| Conditon: | New | Feeding Type: | Center Feeding |
| Liquid Discharge Type: | Open Flow Or Close Flow | ||
| Highlight: | filter press machine,filter press equipment |
||

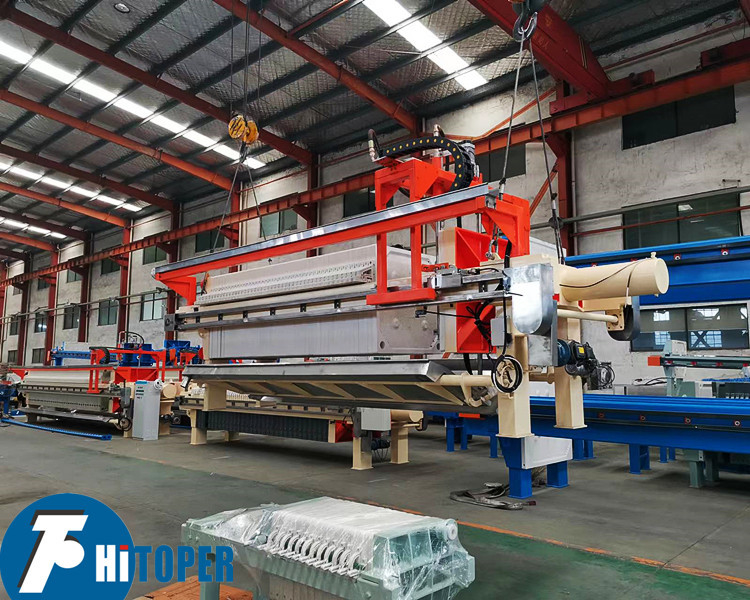

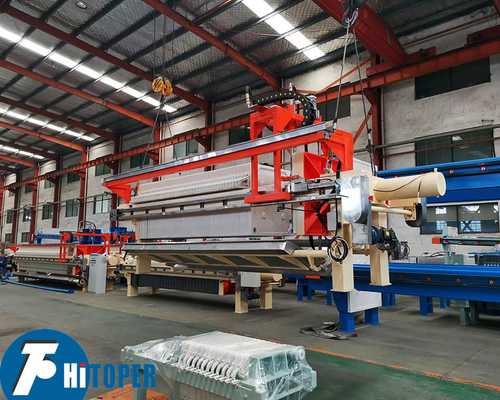

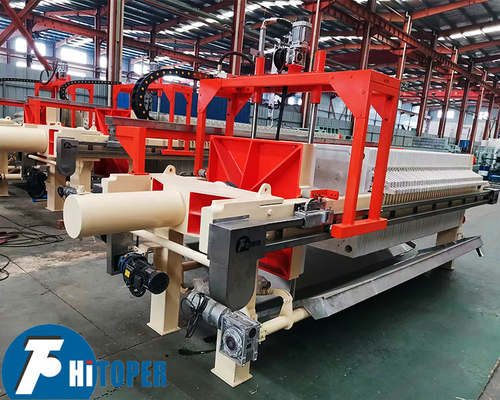

Advanced Coal Washing Water Treatment Industrial Filter Press 4.0KW PP Plate Filtration Machine
Automatic chamber filter press use micro computer processor,PLC and touch screen to control every part's actions,such as cylinder,plate shifter,cloth washing etc.,and remoter control ports are left.
When the filter cloth was blocked, it can use the cloth washing system to clean the blocked solid by high pressure waster, so that increase the filtering speed and enlarge the lift-span.
The device have two types: Single Washing System and Double Poles Washing System.
Consist of this automatic filter press,
1. Hydraulic station.
Automatic hydraulic maintaining pressure, which could save lots of labor.
2. Automatic shifting system.
Pulling system will not only lower labor costs, decrease labor intensity, save time, but also improve productivity.Position switch.
During the discharging process, the pressing plate will stop automatically when it reaches the limit switch. Then the pulling system will begin to work.
3. Filter plate.
PP filter plate resists to stronger corrosion and endure high pressure and service longer.
Advantages of this automatic filter press,
1. Low cake moisture
2. Unmanned operation and cost saving
3. Resist high temperature and corrosion
4. Good sealing effect can perfectly avoid leskage
Application of automatic filter press,
Our automatic filter press widely applicable to coal washing, inorganic salt, mining, alcohol, petroleum, chemical, dyestuff, metallurgy, medicine, foodstuff, paper making and sewage treatment industries.
Our automatic filter press technical parameters.
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XZ100/1250-30U | 100 | 1250×1250 | 30 | 1479 | 36 | 0.6 | 4.0 | 8307 | 5020×1800×1600 |
| XZ120/1250-30U | 120 | 1777 | 43 | 9308 | 5470×1800×1600 | ||||
| XZ140/1250-30U | 140 | 2094 | 51 | 10455 | 5990×1800×1600 | ||||
| XZ160/1250-30U | 160 | 2381 | 58 | 11492 | 6450×1800×1600 | ||||
| XZ180/1250-30U | 180 | 2669 | 65 | 12494 | 6905×1800×1600 | ||||
| XZ200/1250-30U | 200 | 2965 | 72 | 13504 | 7360×1800×1600 | ||||
| XZ220/1250-30U | 220 | 3285 | 80 | 14652 | 7880×1800×1600 | ||||
| XZ250/1250-30U | 250 | 3737 | 91 | 16227 | 8600×1800×1600 | ||||
| XZ200/1500-30U | 200 | 1500×1500 | 3025 | 49 | 0.6 | 7.5 | 20030 | 6400×2200×1900 | |
| XZ250/1500-30U | 250 | 3739 | 61 | 22978 | 7225×2200×1900 | ||||
| XZ300/1500-30U | 300 | 4413 | 74 | 26026 | 8130×2200×1900 | ||||
| XZ350/1500-30U | 350 | 5210 | 86 | 29220 | 8570×2200×1900 | ||||
| XZ400/1500-30U | 400 | 6007 | 99 | 32574 | 9880×2200×1900 | ||||
| XZ450/1500-30U | 450 | 6743 | 111 | 35586 | 10820×2200×1900 | ||||
| XZ500/1500-30U | 500 | 7478 | 123 | 38606 | 11560×2200×1900 | ||||
| XZ600/2000-30U | 600 | 2000×2000 | 40 | 12000 | 85 | 0.6 | 7.5 | 49000 | 11100×3000×2500 |
| XZ700/2000-30U | 700 | 14000 | 99 | 53000 | 12200×3000×2500 | ||||
| XZ800/2000-30U | 800 | 16000 | 107 | 57000 | 13350×3000×2500 | ||||
| XZ900/2000-30U | 900 | 18000 | 127 | 61000 | 14500×3000×2500 | ||||
| XZ1000/2000-30U | 1000 | 20000 | 141 | 65000 | 15600×3000×2500 |
How to order filter press
According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XZ30/870-30U, XZ100/1000-30U or others.
2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.
3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
