| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XZ50/870-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 20-30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 50 sets per month for this chamber filter press |
| Filter Area: | 50m2 | Filter Plate Size: | 870*870mm |
|---|---|---|---|
| Filter Chamber Volume: | 748L | Filter Number: | 38pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 2.2kw |
| Cake Discharge: | Automatically | Voltage: | 380V/220V/400V/Cusomtized |
| Condition: | New | Warranty: | 1 Year |
| Function: | Solid-liquid Separation | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
| Color: | Orange Or Customized | Brand: | HITOPER |
| Certificate: | CE | Feeding Method: | Center Feed |
| Highlight: | filter press machine,filter press equipment |
||

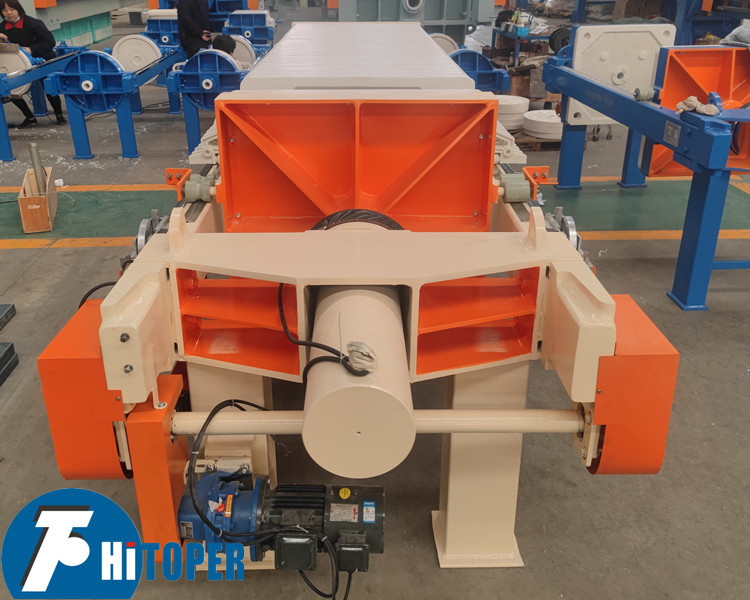

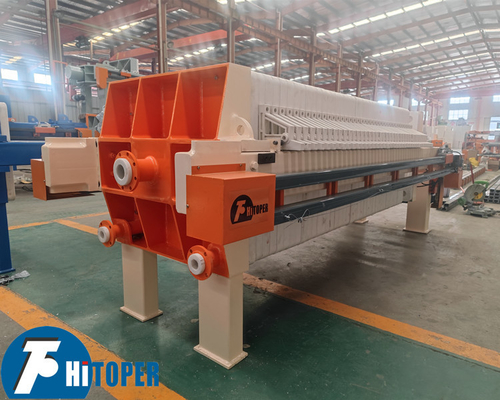

870mm Chamber Plate Automatic Filter Press 0.6Mpa High Pressure Industrial Filtration Machine
This automatic industrial filter press features,
Automatic high-pressure membrane squeezing
Automatic filter cloth washing
Automatic filtrate collecting and plate-reversing
Multiple material feeding
Plate drawing by grouping
Automatic open and close of valves
Automatic startup and stop the pumps
Multiple pressure detection and temperature controlling
Safety Light Curtains
Over temperature alarm.
Over pressure alarm
Operation process includes the following,
1. Pressing device (cylinder piston rod or screw) drive pressing plate forward to push all media plates together till thust plate.
2. Stop pressing and feed solution mixed solid and liquid, when find liquid coming out become less, stop feeding.
3. Start to make pressing plate backward.
4. Separate each media plate and the cake down.
Hot usage in the below,
Chemicals: dyes, pigments, titanium dioxide, manganese, caustic soda, soda ash, chlor-alkali salt mud, white carbon black, saponin, graphite, bleach, Synaptic powder phosphor, sodium hydrosulfite, potassium chlorate, sulfuric acid
Medicine: antibiotics (chlortetracycline, erythromycin, spiramycin, Jinggangmeisu Midecamycin, tetracycline, berberine, oxytetracycline), calcium phytate, traditional Chinese medicine inositol, growth derived sand, organic phosphorus glucoamylase
Food: rice wine, white wine, fruit juice, beverage, beer, yeast, citric acid, vegetable protein, plant density sweetener, glucose, stevioside, malt sugar, starch, rice flour, corn syrup, gum, carrageenan, monosodium glutamate, spices, sauce, liquid, oral liquid, soy milk, seaweed.
Metallurgy: gold, silver, copper, iron ore, rare earth powder, not to send mine.
Refining: white oil, sesame oil, light oil, glycerin, mechanical oil, vegetable oil.
Of clay: kaolin, Run land, activated earth, china clay, ceramic soil.
Sewage treatment: Chemical sewage, smelting wastewater, plating wastewater, leather waste, printing and dyeing wastewater brewing wastewater, pharmaceutical wastewater, environmental sewage, etc
Our filter press technical parameters.
|
Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XZ30/870-30U | 30 |
870×870 (Option 800×800) |
30 | 460 | 23 | 0.6 | 2.2 | 3046 | 3180×1200×1300 |
| XZ40/870-30U | 40 | 595 | 30 | 3593 | 3570×1200×1300 | ||||
| XZ50/870-30U | 50 | 748 | 38 | 4057 | 4110×1200×1300 | ||||
| XZ60/870-30U | 60 | 902 | 46 | 4597 | 4550×1200×1300 | ||||
| XZ70/870-30U | 70 | 1056 | 54 | 5136 | 4990×1200×1300 | ||||
| XZ80/870-30U | 80 | 1210 | 62 | 5636 | 5430×1200×1300 | ||||
| XZ50/1000-30U | 50 | 1000×1000 | 752 | 28 | 0.6 | 4.0 | 4128 | 4040×1500×1400 | |
| XZ60/1000-30U | 60 | 914 | 34 | 4636 | 4460×1500×1400 | ||||
| XZ70/1000-30U | 70 | 1063 | 40 | 5143 | 4760×1500×1400 | ||||
| XZ80/1000-30U | 80 | 1219 | 46 | 5651 | 5120×1500×1400 | ||||
| XZ100/1000-30U | 100 | 1505 | 57 | 6628 | 5870×1500×1400 | ||||
| XZ120/1000-30U | 120 | 1816 | 69 | 7644 | 6500×1500×1400 |
How to order filter press
According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XZ30/870-30U, XZ100/1000-30U or others.
2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.
3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
