Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | XG100/1000-30U |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 20-30 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 500 sets per month for this membrane filter press |
Filtration Area: | 100 Square Meter | Filter Plate Size: | 1000 And 1000mm |
---|---|---|---|
Filter Chamber Volume: | 1378Liters | Filter Number: | 57pieces |
Filtrating Pressure: | 0.6Mpa | Motor Power: | 4.0kw |
Structure Color: | As You Like. | Certificate: | CE |
Cake Discharge Type: | Manual/Automatic | Control System: | PLC |
Filter Cake Moisture: | 15-20% | Filter Cake Thickness: | 30-50mm |
Filter Chamber Volume: | 1.05-2.1m³ | Filter Cloth Type: | Non-woven Fabrics |
Filter Plate Quantity: | 19-47 | Filter Plate Type: | CGR |
Filtration Area: | 0.6-100㎡ | Material: | Stainless Steel |
Plate Size: | 1000*1000mm | Pressure: | 0.6-1.0Mpa |
Voltage: | 380V/220V /400-450V/Customized | ||
Highlight: | sludge dewatering equipment,sludge filter press |
100 Square Meter Membrane Filter Press 4.0kw 0.6Mpa Filtrating Pressure
We manufacture membrane filter press matching international standards and quality. The membrane squeeze plate is offered to suit up to 12 bar squeezing pressure. Due to additional liquid extraction during the squeeze cycle, solid percentages increases. Filtration cycle time are reduced compared to the conventional recess chamber plate(Plate and frame) filter press, resulting in Benefits of membrane plates v/s chamber plates. Conventional type filter presses are limited to using feed pump discharge pressure to produce dry solids, resulting in longer cycle times. T
he membrane squeeze plate reduced the long packing cycle by introducing a squeeze medium in to the center of the membrane squeeze plate. This allows the membranes to flex against the cake, compressing and packing it. Filtration cycle are shorter, dry solids are increased, and waste volume is reduced.
This membrane are designed to dewater the most difficult sludge and protect the plates against potential cake less chambers. The high pressure membranes were developed for difficult filtration processes. Extreme squeeze pressure are possible due to the combination of the special feed inlet design and selected special materials.
Membrane filter press main features,

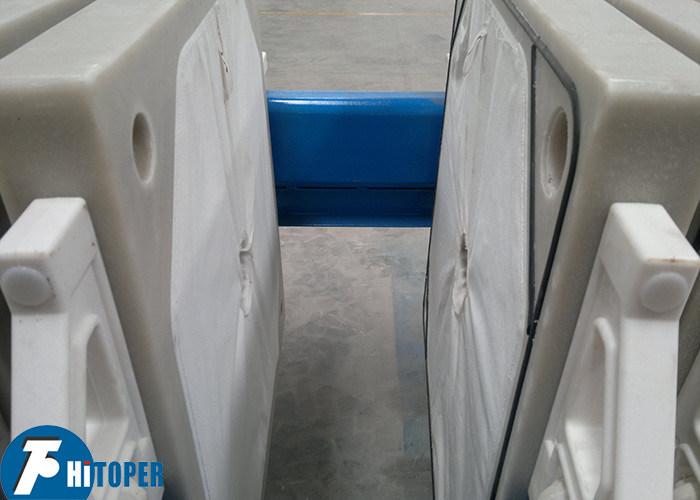

1. The edge of the embedded filter press filter plate is sewn into the seal ring, which is embedded in the filter plate during installation, which can effectively prevent the capillary leakage. The filter material is pushed from the feed hole into the filter chamber between the adjacent filter plates. The filtrate in the material passes through the filter cloth on both sides of the filter plate or filter frame and is discharged along the channel between the filter cloth and the uneven surface of the filter plate Filter press, filter residue was trapped and pressed into a cake to stay in the filter room, play a filter separation effect.
2. Membrane Filter Press technology is gaining increased acceptance because it reduces subsequent processing or disposal costs for filter cake. In many applications the membrane Filter Press significantly reduces residual moisture content, making this technology attractive for new plants and for upgrading existing facilities. In both cases the careful selection of plate and membrane materials is essential to the successful performance of the process.
3. Membrane Filter Press Plates have a chamber below the drainage surface that can be inflated. The common method used is water pressure, which is generated by pumping into the squeeze cavity to inflate the face of the plate against the filter cake. Membrane Plates are used to reduce the cake moisture content & shorten the filtration cycle time.
Membrane filter press application,
Best for Dry fractination of Palmolein, ETP-Plants, Granites, Marble & Ceramic Industries, Gypsum, Bentoite, Crystalline Salts, Pigments, Dry precipitates, Sludges generated from Galvanizing Plants containing Chromium, Zinc, Aluminium, Copper, Nickel or Cadmium, ... and many more.
All technical data of our membrane filter press:
Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness(mm) | Filter chamber volume(L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H)(mm) |
XG30/870-30U | 30 | 870×870 | 30 | 427 | 23 | 0.6 | 4.0 | 2680 | 3490×1250×1300 |
XG40/870-30U | 40 | 534 | 29 | 3050 | 3880×1250×1300 | ||||
XG50/870-30U | 50 | 676 | 37 | 3465 | 4400×1250×1300 | ||||
XG60/870-30U | 60 | 818 | 45 | 4003 | 4920×1250×1300 | ||||
XG70/870-30U | 70 | 960 | 53 | 4584 | 5240×1250×1300 | ||||
XG80/870-30U | 80 | 1103 | 61 | 5082 | 5760×1250×1300 | ||||
XG50/1000-30U | 50 | 1000×1000 | 665 | 27 | 0.6 | 4.0 | 4352 | 4270×1500×1400 | |
XG60/1000-30U | 60 | 808 | 33 | 4480 | 4770×1500×1400 | ||||
XG70/1000-30U | 70 | 950 | 39 | 5263 | 5130×1500×1400 | ||||
XG80/1000-30U | 80 | 1093 | 45 | 5719 | 5560×1500×1400 | ||||
XG100/1000-30U | 100 | 1378 | 57 | 6555 | 6410×1500×1400 | ||||
XG120/1000-30U | 120 | 1663 | 69 | 7466 | 7260×1500×1400 |
