|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||20-30 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||500 sets per month for this membrane filter press|
|Filtration Area:||80m2||Chamber And Membrane Plate Dimension:||870*870mm|
|Filtration Chamber Volume:||1103L||Chamber And Membrane All Number:||61pcs|
|Filtrating Pressure:||0.6Mpa||Motor Power:||4.0kw|
sludge dewatering equipment,
sludge filter press

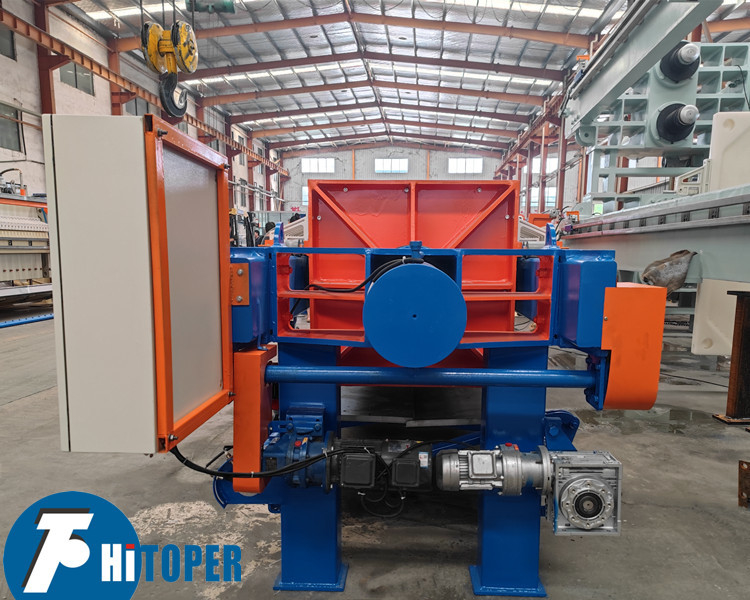

High Pressure Industrial Membrane Filter Press Filtering Machine 0.6Mpa Filtrating Pressure
We manufacture membrane filter press matching international standards and quality.
The membrane squeeze plate is offered to suit up to 12 bar squeezing pressure.
Due to additional liquid extraction during the squeeze cycle, solid percentages increases.
Filtration cycle time are reduced compared to the conventional recess chamber plate(Plate and frame) filter press, resulting in Benefits of membrane plates v/s chamber plates. Conventional type filter presses are limited to using feed pump discharge pressure to produce dry solids, resulting in longer cycle times. The membrane squeeze plate reduced the long packing cycle by introducing a squeeze medium in to the center of the membrane squeeze plate. This allows the membranes to flex against the cake, compressing and packing it. Filtration cycle are shorter, dry solids are increased, and waste volume is reduced.
This membrane are designed to dewater the most difficult sludge and protect the plates against potential cake less chambers. The high pressure membranes were developed for difficult filtration processes. Extreme squeeze pressure are possible due to the combination of the special feed inlet design and selected special materials.
Hot usage of this membrane filter press,
Waste Stream Remediation.
Precious Metal Recovery.
Biodiesel Dry Wash Separation.
Ore Sludge Processing.
Metal concentrates (copper, zinc, lead, nickel, platinum group metals, iron ore, chrome, other).
Metallurgical (refineries, leach residues, precipitates, gypsum, other).
Effluents (tailings, scrubber slurry, hydroxide precipitates).
Shorter cycle time.
Increased dry solids.
Reduced filtration time.
Reduced cake washing time.
Lesser wash water consumption.
Lower waste disposal cost.
Lower operating cost.
Excellent cake discharge.
Higher quality and valued end product.
Pressure: upto 12 bar.
Controls: Fully Automatic/ Manual.
All technical data of our membrane filter press:
|Filter area(m2)||Filter plate size(mm)||Filter cake thickness(mm)||Filter chamber volume(L)||
Filter plate number
|Filter plate size(mm)||
Filter cake thickness
Filter chamber volume
Filter plate number
Why choose us,
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 5 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have ISO 9001:2008, CE certificate, also they will be tested before delivery.
3. Our superiority,
We are one of the Top 3 in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
