|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||Best factory price|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||20-30 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||500 sets per month for this membrane filter press|
|Filter Area:||60m2||Filter Plate Size:||870*870mm|
|Filter Chamber Volume:||818L||Filter Number:||45pcs|
|Filtrating Pressure:||0.6Mpa||Motor Power:||4.0kw|
|Nice Function:||Second Squeeze Function To Give A Lower Cake Moisture.||Color:||As You Need.|

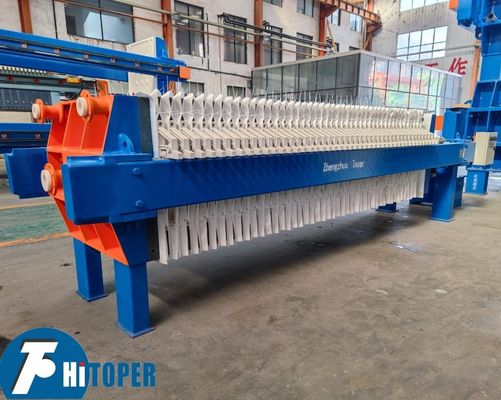

Filtration technologies on membrane filter press for maple syrup filtration with high mesh filter cloth
Filter press equipment is one kind Intermittent work separation equipment .The function of the filter press is to get solid -liquid separation , low moisture content ,dry filter cake .The filter press consist of chamber filter plate and diaphragm filter plate , hydraulic power pack , filter cloth .According to customers need , we can also supply closing and opening the filter plate automatically,belt conveyors,automatic washing system , filtrate collecting system, filter cloth shaking system etc. It is high efficiency in separation filed ,easy and simple to operate .The filter press can be controlled by the button on electric control cabinet. Save labor and improve efficiency.
Membrane filter press plate by the diaphragm plate and the chamber arrangement of the composition filter chamber, the conveying pump slurry under pressure to enter the filter chamber through the filter media (filter cloth) in the slurry of solid and liquid separation, when the slurry in solid form after the cake, again through the diaphragm into the air, the filter press room full of solid, lower moisture content. Filter for viscous materials require higher moisture content and for users of this machine have their unique characteristics. Plate with enhanced molded polypropylene, polypropylene plate with diaphragm mounted together, sturdy, secure, not easy fall off, long service life.
Working principle of filter press
1. Closing the filter plate under the hydraulic pressure , make the filter plate formed filter chamber
2. Feeding slurry into the filter chamber
3. The liquid through filter cloth , flow out ,the solid left in the filter chamber
4. Stop feeding slurry when then filter chamber is full with solid , the solid formed filter cake
5. Filling water or air into membrane filter plate to squeeze the filter cake and make second squeezing . Lower the moisture content of filter cake
6. Release the pressure , opening the filter plate ,Discharge the filter cake , one cycle is finished
Application of this membrane fitler press,
1.BEVERAGE / BREWING INDUSTRY.
Fruit and vegetable juices. Wine or Beer dewatering.
2.CHEMISTRY / BIOTECHNOLOGY
Production of vitamins. VC natrium. Calcium phosphate. Saleratus. Heavy alkai. Polyacrylonitrile. Pigments. Solvents. Algae (food, cosmetics). Fermentation broths (industrial biotechnology)
3.CHINESE TRADITIONAL MEDICINE
Raw Material washing. Effective ingredient extraction
Wool degrease. Textile dewatering
5.FATS / OILS / BIOFUELS
Fish oil. Animal fats. Olive oil. Avocado oil. Palm oil. Coconut oil
All technical data of our membrane filter press:
Also we can supply smaller model, like 10m2 model XG10/870-30U, 15m2 model XG15/870-30U and 20m2 model XG20/870-30U.
|Filter area(m2)||Filter plate size(mm)||Filter cake thickness(mm)||Filter chamber volume(L)||
Filter plate number
|Filter plate size(mm)||
Filter cake thickness
Filter chamber volume
Filter plate number
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
