| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | PD800 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this platform centrifuge |
| Drum Diameter: | 800mm | Drum Volume: | 115L |
|---|---|---|---|
| Drum Load Limit: | 155kgs | Drum Rotate Speed: | 1500r/min |
| Separation: | 1008G | Motor: | 7.5kw |
| Weight: | 1800kgs | Dimension: | 1800*1050*1140mm |
| Filter Medium: | Filter Bag | Discharge Type: | Upper Bag Hoist Discharge |
| Function: | Solid-liquid Separation | Application: | Food,environmental Proteciton,medicine,chemical,metrallurgy |
| Certificate: | CE | Conditon: | New |
| Highlight: | industrial scale centrifuge,high speed centrifuge |
||

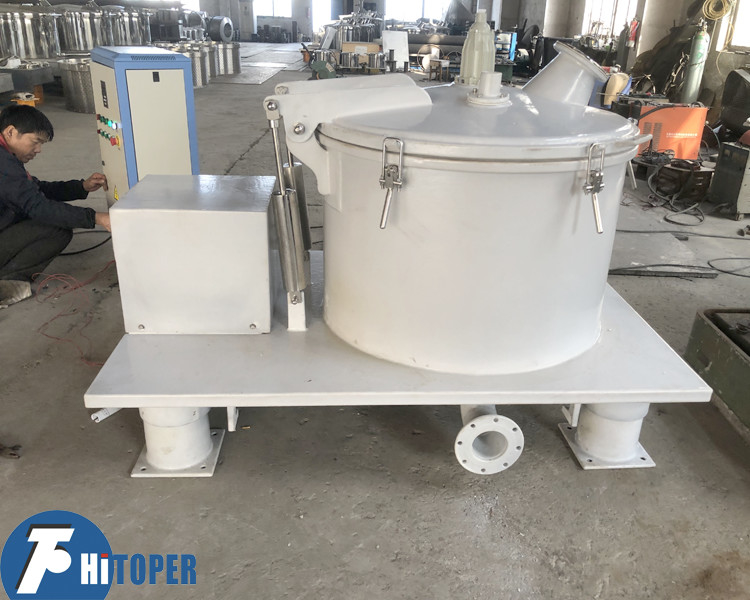

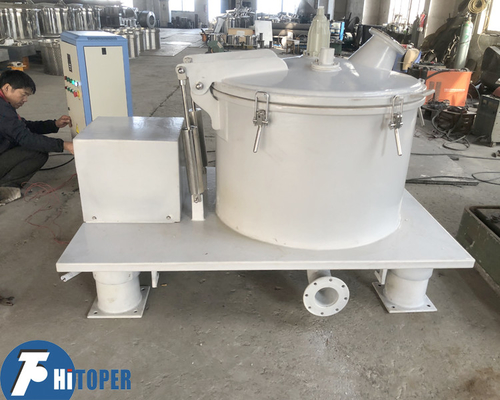

Automatic Bag hoist top discharge basket centrifuge of stainless steel material for oil filtering
PD type centrifuge are filter equipment with hermetic closure produre task, intermittent operation and hanging bag off-site discharge.
1. Compare with other three-foot centrifuge, this four-foot centrifuge adopts flat-plate counterweight and high viscosity damping shock absorber, don’t need concrete foundation.
2.As all parts is stainless steel 304 or 316L, this centrifuge has the better performance of acid resistant, corrosion
resistant.
3. Automatic discharge, after a cycle finish, a lifting device will help to discharge automatically.
This PD type automatic centrifuge is the modified product of SS
three-foot centrifuge, with the advantages of SS three
foot ones, also it reduces labor intensity, discharge fast, easy to wash the bags and improve production efficiency. It is suitable for solid phase separation with loose high, moderate size. Easy compression, require washing.
Liquid is ofviscosity and smaller suspension.
Working principle of the Automatic Bag hoist top discharge basket centrifuge of stainless steel material for oil filtering

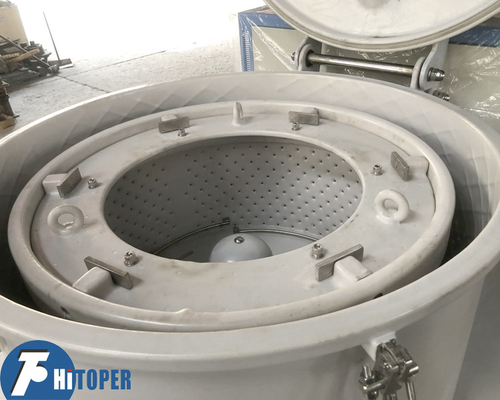

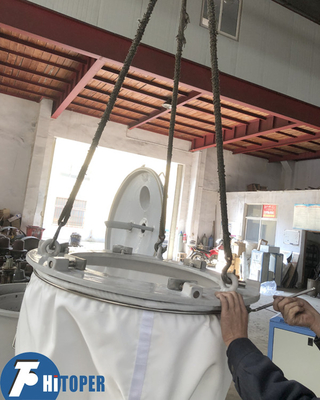

The drum runs with high-speed by motor, materials enter the drum from top feed pipe ,then run forward to the shell of the drum by centrifugal force, in this case liquor pass through the sieve pore and sieve pore of the shell, then be discharged. Then solid be hold in the drum. After the separation open the machine, loosen the lock blocks on lip ring, and suspend the lip ring together with the filter bags containing cake to discharge. Loosen the grip, make sure the filter bag open, then the filter cake will automatic drop down.
Structure and features of the Automatic Bag hoist top discharge basket centrifuge of stainless steel material for oil filtering :
1. It has the characteristics of smooth start-up, adjustable separation factor, large capacity, high efficiency, simple operation, quick unloading, good safety performance, clean environment, and low labor intensity.
2. It cancels the traditional hanging machine legs, adopts flat counterweights and high-viscosity damping isolators to absorb vibration, and is installed without foundation.
3. Fully open large flap, quick-open hanging bag unloading, with motor overheating, overload, overcurrent protection and other interlocking protection.
Application of Automatic Bag hoist top discharge basket centrifuge of stainless steel material for oil filtering:
It is applicable to the separation of suspension containing solid-phase granules with the diameter greater than 0.01mm. And it is especially applicable to the filtering of toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. For example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
Technical parameters of this platform centrifuge:
| Type | Drum |
Separation factor |
Motor power |
Weight (kg) |
Dimension (mm) |
|||
|
Dia. (mm) |
Volum (L) |
Load limit (kg) |
Rotation speed (r/min) |
|||||
| PD800 | 800 | 115 | 155 | 1500 | 1008 | 7.5 | 1800 | 1800X1050X1140 |
| PD1000 | 1000 | 170 | 230 | 1200 | 806 | 11 | 2800 | 2030X1300X1220 |
| PD1250 | 1250 | 280 | 400 | 950 | 631 | 18.5 | 4200 | 2350×1500×1370 |
| PD1500 | 1500 | 500 | 650 | 850 | 607 | 30 | 5200 | 2900X1900X1570 |
