| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | PS450 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this platform centrifuge |
| Drum Diameter: | 450mm | Drum Volume: | 20L |
|---|---|---|---|
| Drum Load Limit: | 25kgs | Drum Rotate Speed: | 1900r/min |
| Separation: | 910 | Motor: | 1.5kw |
| Weight: | 250kgs | Dimension: | 980*650*870mm |
| Color: | Silver | Material: | SS304 Or 316L |
| Warranty: | 12 Months | Condition: | New |
| Voltage: | 220V/380V | Product Type: | Solid Liquid Separator |
| Operation: | Semi-automatic | Discharge: | Top Discharge |

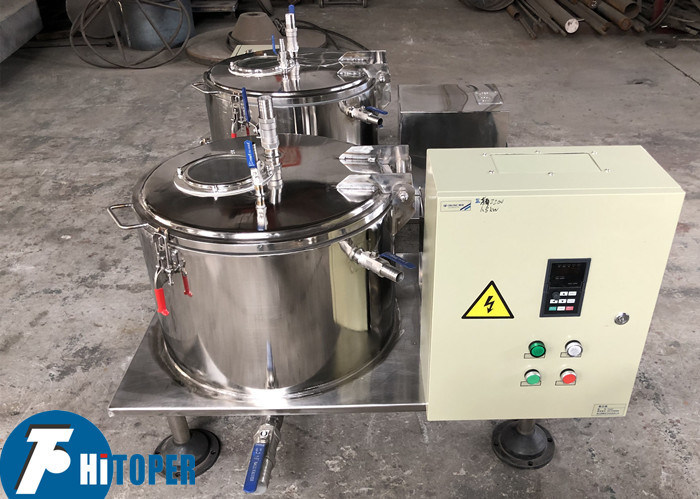

450mm Drum Basket Separation Platform Base Centrifuge With PP Material Filter Bag
It is top discharging closed type and intermittent operation filter euipment.
The machine looks, compact and flexible, can be placed directly on the table to operate, with material contact parts can be used for production of various materials or spray, in order to meet the needs of the experiment. Its working principle is by accelerating the centrifugal force, so that the particle sedimentation rate significantly faster, and through the filter media, such as cloth and other separation work.
Design features of this platform centrifuge:
1. Structure designed to effectively eliminate a health corner, the structure transition is smooth, the surface has been polished, outside structure parts, fasteners, and drum are not stainless steel, shell clamshell, can centrifuge drum shell and mezzanine space for thorough cleaning.
2. Shell flip, set the feed pipe, wash pipe, mirrors, lighting hole. Automatic online cleaning system(sprinkler system), the centrifuge shell wall, inside and outside surface of the drum, set the liquid pool surface is not visible centrifuge parts cleaning Ensure the cleanliness requirements, meet the GMP standard.
3. Simple structure, easy operation and maintenance.
4. Versatility for a wide range. Both for the solid phase for the separation of granular suspensions can also be used for the separation of fibrous materials.
5. Inverter can be started, start a smooth, adjustable separation factor; non-contact power brake system. anti-static belt drive; body enclosed structure, seals silicone rubber of fluorine rubber, anti-explosion requirements for toxic and flammable and explosive applications.
6. Nitrogen protection system to ensure that the centrifuge chamber and the outside air.
7. Grain is not easy to break.
Technical Parameters Of This Platform Centrifuge:
| Type | Drum |
Separation factor |
Motor power |
Weight (kg) |
Dimension (mm) |
|||
|
Dia. (mm) |
Volum (L) |
Load limit (kg) |
Rotation speed (r/min) |
|||||
| PS300 | 300 | 5 | 10 | 2500 | 1050 | 1.1 | 180 | 890×600×500 |
| PS450 | 450 | 20 | 25 | 1900 | 910 | 1.5 | 250 | 980×650×870 |
| PS600 | 600 | 40 | 50 | 1500 | 756 | 3.0 | 800 | 1300×880×900 |
| PS800 | 800 | 100 | 135 | 1200 | 645 | 5.5 | 1300 | 1800×1200×1140 |
| PS1000 | 1000 | 150 | 200 | 1000 | 560 | 7.5 | 2000 | 2050×1500×1400 |
| PS1200 | 1200 | 250 | 300 | 800 | 431 | 11 | 2500 | 2350×1650×1370 |
