|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||10-15 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||60 sets per month for this tubular centrifuge|
|Drum Diameter:||75mm||Drum Volume:||2.7L|
|Drum Rotate Speed:||21000r/min||Separation Factor:||22500|
|Water Flow Capacity:||500kg/h||Power:||1.5kw|
|Inner Dia.:||75mm||Motor:||380V,50hz Or As Require|
|Material:||Stainless Steel||Drum Height:||450mm|
liquid solid separation centrifuge,
high speed centrifuge machine

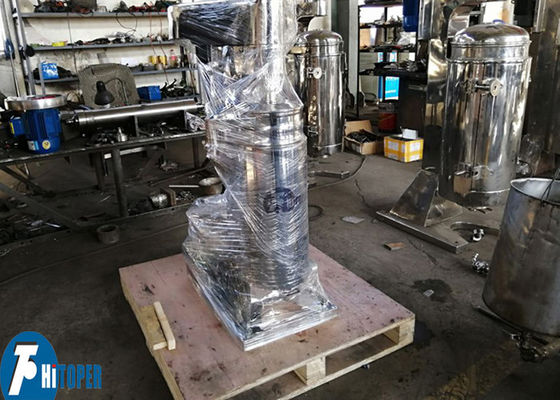

21000r/min High Speed 3 Phase Tubular Centrifuge Separator Food Degree Stainless Steel Material Made
GF series tubular centrifuge: it is mainly used for various industrial suspension very difficulty to separate, especially suitable for liquid-liquid suspension with small specific gravity difference between solid phase and liquid phase, and liquid-liquid-solid separation with few impurities. liquid with larger Density deposit on the outer wall of the drum. liquid with smaller Density deposit on the inner wall of the drum. Both of them get to the upper part of the drum to discharge. solid particles deposit on the drum wall to be artificially discharged after downtime.
When works, the mixed solution is sprayed onto the bowl from the inlet on the bottom, with the strong centrifugal force, allowing the milk flow upper along the wall of the bowl, together with different gravity of the oil and water, heavy liquid(water) forms outer ring and light liquid(oil) forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little particle is settled on the wall of the bowl and discharged manually after the machine stops. GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.
It also can be used in separating blood plasma of biological leechdom, extracting blood plasma from animal’s blood; refining soaking placenta, multi-phenol tea, and concentrated phosphatide from soybeans; purifying ejiao; separating oil and handling sewage, various kinds of medicine, etc
Productivity(water flow) (kg/h)
1. Long-term warranty of 1 years.
2. Provide best necessary spare parts at low price.
3. Provide best service and technical support within 24 hours.
4. Solve all kinds of specilized confuse.
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
