|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||40 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||30 sets per month for this decanter centrifuge|
|Drum Dia.:||400mm||Drum Length:||1800mm|
|Secondary Motor:||7.5kw||Drive Type:||Double Motor And Frequency Conversion|
|Main Material:||Stainless Steel||Function:||Solid-liuqid And Solid-liuqid-liquid Separation|
|Woriking Principle:||Centrifugal Force||Discharge Method:||Automatic|
sludge decanter centrifuge,
decanter centrifuge for sludge dewatering

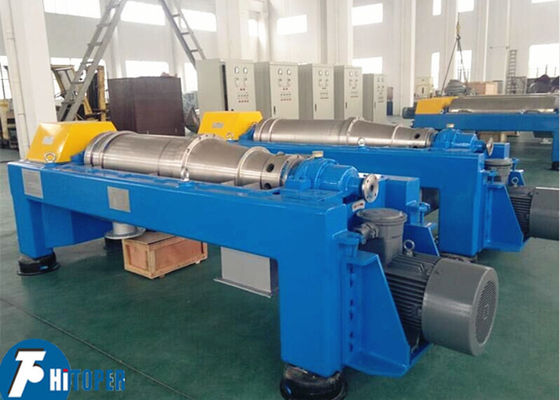

Auto Discharge Industrial Decanter Centrifuge Soybean Protein Isolation Treatment Use
In the production of soybean protein isolate technology, acid precipitation process is the most commonly used recently , the main process is: crushing, extraction, separation of slag milk, acid precipitation, curd separation, neutralize aging, sterilization drying, inspection and packaging processes. The soybeans used in the production of edible protein foodstuffs are pretreated, the oil is extracted, the defatted soybean meal and the soybean powder are extracted, and then the soybean protein is dissolved out from the soybean powder in the alkaline solution, finally acid is added to separate the protein agglutination precipitate.
Of which,the most critical is slag liquid separation process, the current widely used high-speed decanter centrifuge to improve protein recovery, the bean dregs and soya-bean milk can be directly separated from the extraction solution via decanter centrifuge , according to process conditions this process can alse be divided into primary separation and secondary separation.
The purpose of curd separation is to separate and remove the soluble fraction of whey, carbohydrates, salts and the like in the curd mixture liquid to purify the protein quality, and finally to enter the water washing process.
According to the different separation requirements to choose the suitable centrifuge machine ,including solid-phase concentration&dehydration, liquid clarification decanter centrifuge, our corporation supplied variety kinds of decanter centrifuge, selectivity, according to the specific production processing capacity Choose different model.
The entire feeding, separation, discharge are automatic, continuous, closed state to complete.
Brief introduction of the decanter centrifuge :
Lw series decanter centrifuge is the mechanical equipment used for continuously separation the materials in the suspension with density difference, by the principle of centrifugal settling.The basic principle is the drum and the spiral feeder rotate in the same direction but with a certain speed difference; The material is led into the feeding spiral inner cylinder via the feeding pipe and after speeding up, enters the drum; Under the action of the centrifuge force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; The solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and after dehydration in the drying area, is discharged under full-speed running. It enjoys such features as compact structure, continuous operation, smooth running, strong adaptability to the separation material, large handling capacity, convenient maintenance, etc.
1. Participate in the drum suspension liquid layer constituting the ring in the centripetal force, during which the solid particles settle to the drum wall to form sediment. Clear liquid overflow port or through the drum pipette discharged, said parting liquid. When parting ended with manual or mechanical methods discharged sediment.
2. Solid particles in the drum wall settlement process, but also with the axial movement of the liquid stream, the feed is too large, the activity with the liquid to overflow port, but did not settle into fine particles in the drum wall with the parting liquid discharge drum, so that the parting was cloudy.
3. Solid-liquid phase density difference is small, small solid particles or liquid viscosity of the suspension should be selected hard parting parting factor high sedimentation centrifuge drum extending the suspension stay in the moment (for example, reducing the amount of feed or use long drum, etc.), can ensure the parting was clarified.
All technical parameters:
|Model||Structure type||Rotating drum||Rotating speed (r/min)||Separation factor||Processing capacity of admixtures (m3/h)||Motor power (KW)||
|Dia. (mm)||Length-to-diameter ratio|
|LW220||Counter flow type||930||4.22||4800||2835||0-1||7.5||1500|
|LW300||Counter flow type||1200-1350||4-4.5||4200||3000||1-3||11||1500-1800|
|LW355||Counter flow type||1250-1600||2.42-4.51||3800||3200||2-8||15||1800-2000|
|LW400||Counter flow type||1200-1800||3-4.5||3400||3000||5-10||30||2000-2800|
|LW450||Counter flow type||1350-2000||3-4.5||3400||3000||10-20||30||2800-3500|
|LW530||Counter flow type||2280||4||2700||2150||20-30||45||3500-4000|
1. We have professional person on line to advise you the most suitable type of machie for according to your requirement.
2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3. Arrange the schedule if you pay a visit to our factory.
Package and Delivery
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
More details information about our corporation --Toper
1. About Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider
of filter and separation equipment.
2. Global service
Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas
excluding China mainland.
Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey,
Uzbekistan and Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli,
Palestinian, Oman, Bahrain, Iran; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland,
Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina,
Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.
Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the
world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.
Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.
