| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | LW300X1200 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this decanter centrifuge |
| Drum Dia.: | 300mm | Drum Length: | 1200mm |
|---|---|---|---|
| Speed: | 4000r/min | Main Motor Power: | 11kw |
| Separation Factor: | 2550w2r/g | Function: | Extraction,concentration,purification,clarify,separation |
| Woriking Principle: | Centrifugal Force | Discharge Method: | Automatic |
| Feeding Method: | Pump Feeding Or Other | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
| Main Material: | Stainless Steel | Certificate: | CE |
| Color: | Green,white Or Customized | Condition: | New |
| Highlight: | sludge decanter centrifuge,decanter centrifuge for sludge dewatering |
||

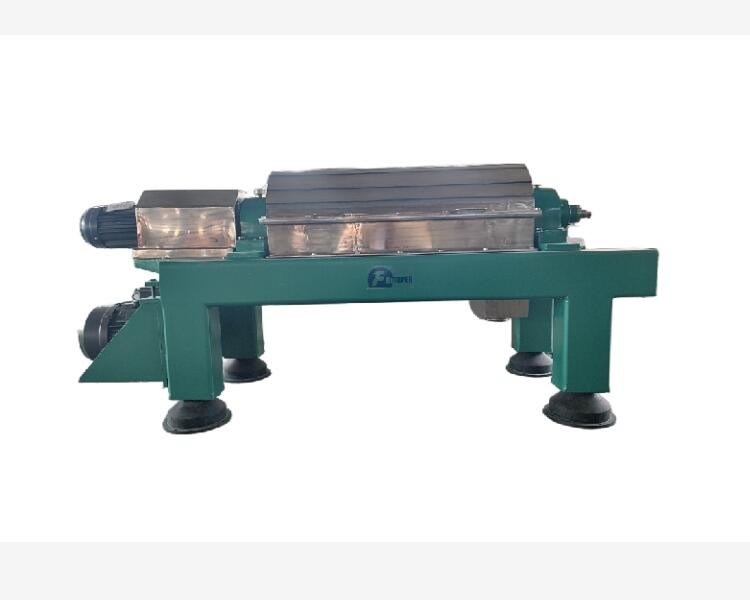

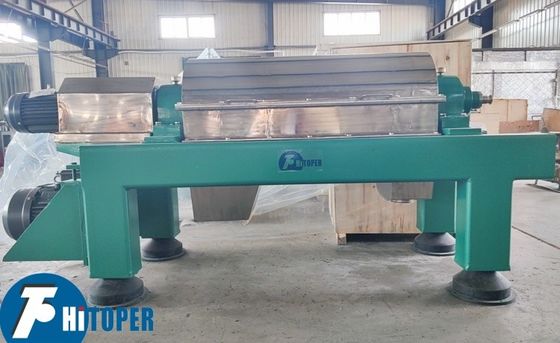

Stainless Steel Continuous Operation Industrial Decanter Centrifuge Humic Acid Dehydration
1. Lw series decanter centrifuge is the mechanical equipment used for continuously separation the materials in the suspension with density difference, by the principle of centrifugal settling.
It is used in the suspension(in 0.0005~2mm, concentration 2-40%) solid-and-liquid separation, size classification, liquid clarification .Especially ,it issuitable for the suspension separation that with difficult in filter cloth recycling, and the material with large concentration and big size range.
2.It enjoys such features as compact structure, continuous operation, smooth running, strong adaptability to the separation material, large handling capacity, convenient maintenance, etc.
Working principle:
There is spiral which is the feeding spiral which is has the same axis with the drum.The spiral and the drum rotate in different speed but in the same direction.The rotate difference is caused by the differential.The suspension enters the spiral through the feeding pump in the centre, when it starts to speed up the material goes into the drum.Under the effect of the centrifuge force, the relatively heavy solidoid sediments into slag blanket on the surface of the drum wall, then the spiral push the slag blanket to the drum cone section for further dehydration, latter it will be discharged from the small section slag hole.While the relatively light liquicdoid forms the inner liquid cycle, and it will be discharged from the large end overflow gate.
Advantages of the decanter centrifuge :
1. Screw propeller made and Bowl made of SS304 material, bearing adopt SKF.
2. Electric element adopt SIMENS or Schneider.
3. Painting: Heavy anti-corrosion paint adopt national, Fine polish.
4. Electronic Motor is from SIMENS or ABB motor.
5. Electronic control system is from Top brand explosion - proof electronic switch.
Basic technical parameters:
| Model | Structure type | Rotating drum | Rotating speed (r/min) | Separation factor | Processing capacity of admixtures (m3/h) | Motor power (KW) |
Total weight (kg) |
|
| Dia. (mm) | Length-to-diameter ratio | |||||||
| LW220 | Counter flow type | 930 | 4.22 | 4800 | 2835 | 0-1 | 7.5 | 1500 |
| LW300 | Counter flow type | 1200-1350 | 4-4.5 | 4200 | 3000 | 1-3 | 11 | 1500-1800 |
| LW355 | Counter flow type | 1250-1600 | 2.42-4.51 | 3800 | 3200 | 2-8 | 15 | 1800-2000 |
| LW400 | Counter flow type | 1200-1800 | 3-4.5 | 3400 | 3000 | 5-10 | 30 | 2000-2800 |
| LW450 | Counter flow type | 1350-2000 | 3-4.5 | 3400 | 3000 | 10-20 | 30 | 2800-3500 |
| LW530 | Counter flow type | 2280 | 4 | 2700 | 2150 | 20-30 | 45 |
3500-4000 |
