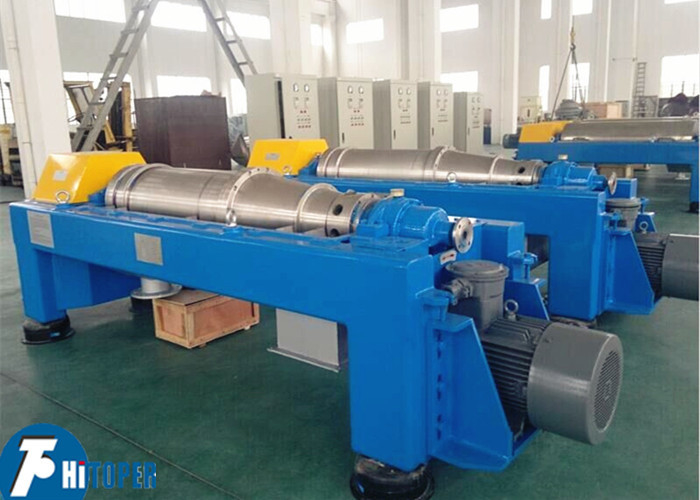

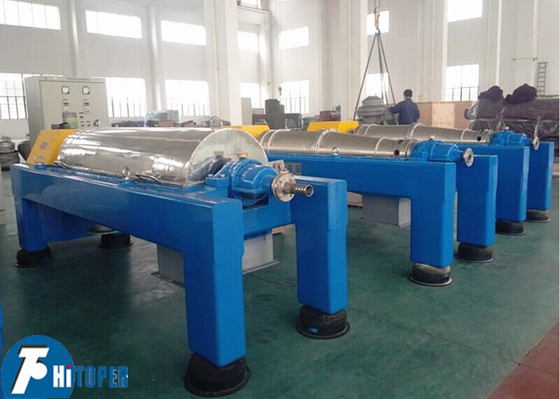

22KW Auto Discharge Industrial Decanter Centrifuge for Soybean Protein Separation

22KW Auto Discharge Industrial Decanter Centrifuge for Soybean Protein Separation





In the production of soybean protein isolate technology, acid precipitation process is the most commonly used recently , the main process is: crushing, extraction, separation of slag milk, acid precipitation, curd separation, neutralize aging, sterilization drying, inspection and packaging processes. The soybeans used in the production of edible protein foodstuffs are pretreated, the oil is extracted, the defatted soybean meal and the soybean powder are extracted, and then the soybean protein is dissolved out from the soybean powder in the alkaline solution, finally acid is added to separate the protein agglutination precipitate.



Of which,the most critical is slag liquid separation process, the current widely used high-speed decanter centrifuge to improve protein recovery, the bean dregs and soya-bean milk can be directly separated from the extraction solution via decanter centrifuge , according to process conditions this process can alse be divided into primary separation and secondary separation.



The purpose of curd separation is to separate and remove the soluble fraction of whey, carbohydrates, salts and the like in the curd mixture liquid to purify the protein quality, and finally to enter the water washing process.



According to the different separation requirements to choose the suitable centrifuge machine ,including solid-phase concentration&dehydration, liquid clarification decanter centrifuge, our corporation supplied variety kinds of decanter centrifuge, selectivity, according to the specific production processing capacity Choose different model.

The entire feeding, separation, discharge are automatic, continuous, closed state to complete.





Brief introduction of the decanter centrifuge :



Lw series decanter centrifuge is the mechanical equipment used for continuously separation the materials in the suspension with density difference, by the principle of centrifugal settling.The basic principle is the drum and the spiral feeder rotate in the same direction but with a certain speed difference;

The material is led into the feeding spiral inner cylinder via the feeding pipe and after speeding up, enters the drum; Under the action of the centrifuge force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; The solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and after dehydration in the drying area, is discharged under full-speed running.

It enjoys such features as compact structure, continuous operation, smooth running, strong adaptability to the separation material, large handling capacity, convenient maintenance, etc.





Working principle:



1. Participate in the drum suspension liquid layer constituting the ring in the centripetal force, during which the solid particles settle to the drum wall to form sediment. Clear liquid overflow port or through the drum pipette discharged, said parting liquid. When parting ended with manual or mechanical methods discharged sediment.



2. Solid particles in the drum wall settlement process, but also with the axial movement of the liquid stream, the feed is too large, the activity with the liquid to overflow port, but did not settle into fine particles in the drum wall with the parting liquid discharge drum, so that the parting was cloudy.



3. Solid-liquid phase density difference is small, small solid particles or liquid viscosity of the suspension should be selected hard parting parting factor high sedimentation centrifuge drum extending the suspension stay in the moment (for example, reducing the amount of feed or use long drum, etc.), can ensure the parting was clarified.





Basic technical parameters:

Model	Drum Dia. (mm)	Drum length (mm)	Length-Dia. Ratio	Rotation speed(r/min)	Separation factor(w2r/g)	Capacity (m3/h)	Motor power (Kw)	Weight (kg)	Dimension (mm)
LW220x930	220	930	4.2	5000	2835	0.5-5	7.5	1200	2420x700x1010
LW300x1200	300	1200	4.0	4000	2550	1-5	7.5-11	1500	2680x830x1280
LW355x1600	355	1600	4.5	3800	2868	1-20	15-18.5	1850	3490x860x1200
LW400X1800	400	1800	4.5	3650	3000	2-25	15-22	2500	3890x1020x1205
LW450x2000	450	2400	4.4	3450	3000	3-35	22-37	3000	4297X1080X1385
LW500X2000	500	2000	4.0	3000	2500	5-45	30-37	3800	4330X1140X1470
LW530X2280	530	2280	4.3	2900	2500	15-65	45-55	5000	4924X1170X1540
LW580X2500	580	2500	4.3	2780	2500	20-80	55-75	6500	5205X1270X1540
LW650X2800	650	2800	4.3	2500	2270	20-110	75-90	7000	4300X1900X1350
LW760X3040	760	3040	4.0	2250	2150	30-150	90-132	8500	5000X2500X1500





Toper's service:



1. We have professional person on line to advise you the most suitable type of machie for according to your requirement.

2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

3. Arrange the schedule if you pay a visit to our factory.





Package and Delivery



We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
