| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | LW355x1250 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this decanter centrifuge |
| Drum Dia.: | 355mm | Drum Length: | 1250mm |
|---|---|---|---|
| Speed: | 4000r/min | Main Motor: | 15kw |
| Secondary Motor: | 5.5kw | Noise: | 85db(A) |
| Spiral Differential Speed: | 3-25r/min | Separtion Principle: | Centrifugal Force |
| Function: | Separation,dehydration,purification,concentration | Drive Type: | Double Motor And Frequency Conversion |
| Color: | Blue,green,white Or Customized | Feeding Method: | Pump Feeding |
| Discharge Type: | Automatic | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
| Voltage: | 380V/220V /400-450V/Customized | Conditon: | New |
| Highlight: | sludge decanter centrifuge,decanter centrifuge for sludge dewatering |
||

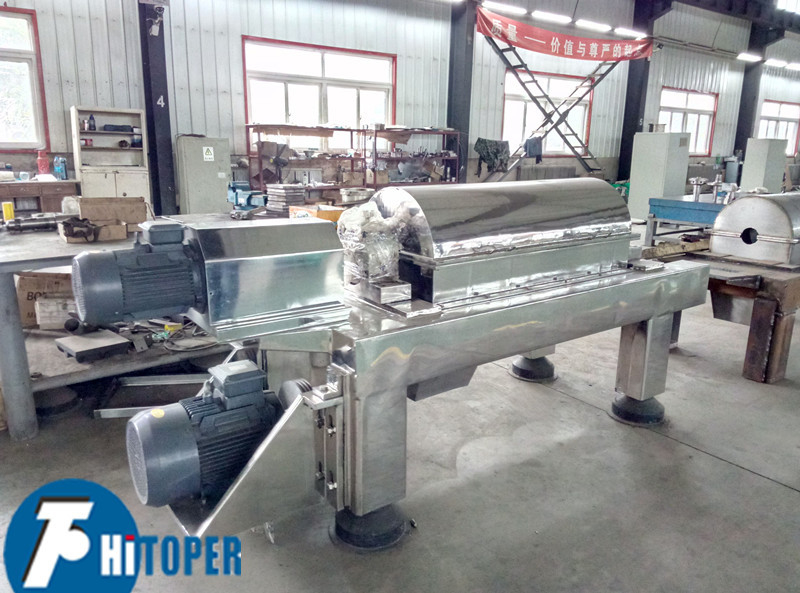

Food Industry Blueberry Processing 15KW Energy Saving Industrial Decanter Centrifuge Stainless Steel Material
The industrial stainless steel decanter centrifuge machine make use of the principle of sedimentation to separate suspension of solid - liquid continuously.The solid phase discharing by the spiral contiunously.
This machine is a continuous and efficient solid - liquid separation equipment, has the following technical features:
1. Design Optimization :
The host structure throughout the finite element simulation of parametric design, strength and stiffness for rotating parts, strength and vibration resistance for the base, overall strength and vibration absorption stands to optimize the design, so that the mechanical structure and parameters to optimize
2. Manufacturing:
All self-manufactured components are made on CNC machinery and quality inspection through advanced detection mechanisms to ensure parts quality, accuracy and interchangeability.
3. Electrical Configuration:
All electrical components are used domestic well-known brands, while meeting the requirements of protection class to ensure that products in the harsh environment of long-term trouble-free operation
4. Energy savings:
Dual Frequency conjugate DC busbar technology, making the electric power generated by auxiliary motor back to the state of the main circuit, effectively save energy consumption.
5. Dynamic balancing Technology
All rotating parts are high-precision dynamic balance at full speed, and using the latest micro-machine whole machine full-speed dynamic balancing instrument for the decanter centrifuge’s dynamic balancing . Better than G2.5 balancing grade level.
This technology ensures reduced machine vibration and noise, improve the servicing life of the centrifuge.
Working principle of the decanter centrifuge :
There is spiral which is the feeding spiral which is has the same axis with the drum.The spiral and the drum rotate in different speed but in the same direction.The rotate difference is caused by the differential.The suspension enters the spiral through the feeding pump in the centre, when it starts to speed up the material goes into the drum.Under the effect of the centrifuge force, the relatively heavy solidoid sediments into slag blanket on the surface of the drum wall, then the spiral push the slag blanket to the drum cone section for further dehydration, latter it will be discharged from the small section slag hole.While the relatively light liquicdoid forms the inner liquid cycle, and it will be discharged from the large end overflow gate.
Application of the industrial stainless steel decanter centrifuge:
Because of good adaptation to the material ,it can be widely used in chemical industry, light industry, food, paper, mining and other industrial sectors for the suspension of solid phase weight concentration of ≤10% (or 24 hours after free-falling volume concentration of ≤50%), solid particle equivalent diameter of the liquid-solid ≥0.005 ~ 2mm ,severe difference ≥0.05 g / cm3 suspension of liquid-solid separation.Such as calcium carbonate, calcium sulfate, chloride, lees, bean dregs, soybean protein, paper pulp, vegetable oil, kaolin, lime mud, and environmental protection industries sludge sedimentation and centrifugation suitable for all kinds of chemical products and other materials can be effectively dehydration.
Basic technical parameters:
| Model |
Drum Dia. (mm) |
Drum length (mm) |
Length-Dia. Ratio |
Rotation speed (r/min) |
Separation factor(w2r/g) |
Capacity (m3/h) |
Motor power (Kw) |
Weight (kg) |
Dimension (mm) |
| LW220x930 | 220 | 930 | 4.2 | 5000 | 2835 | 0.5-5 | 7.5 | 1200 | 2420x700x1010 |
| LW300x1200 | 300 | 1200 | 4.0 | 4000 | 2550 | 1-5 | 7.5-11 | 1500 | 2680x830x1280 |
| LW355x1600 | 355 | 1600 | 4.5 | 3800 | 2868 | 1-20 | 15-18.5 | 1850 | 3490x860x1200 |
| LW400X1800 | 400 | 1800 | 4.5 | 3650 | 3000 | 2-25 | 15-22 | 2500 | 3890x1020x1205 |
| LW450x2000 | 450 | 2400 | 4.4 | 3450 | 3000 | 3-35 | 22-37 | 3000 | 4297X1080X1385 |
| LW500X2000 | 500 | 2000 | 4.0 | 3000 | 2500 | 5-45 | 30-37 | 3800 | 4330X1140X1470 |
| LW530X2280 | 530 | 2280 | 4.3 | 2900 | 2500 | 15-65 | 45-55 | 5000 | 4924X1170X1540 |
| LW580X2500 | 580 | 2500 | 4.3 | 2780 | 2500 | 20-80 | 55-75 | 6500 | 5205X1270X1540 |
| LW650X2800 | 650 | 2800 | 4.3 | 2500 | 2270 | 20-110 | 75-90 | 7000 | 4300X1900X1350 |
| LW760X3040 | 760 | 3040 | 4.0 | 2250 | 2150 | 30-150 | 90-132 | 8500 | 5000X2500X1500 |
Packaging and Shipping
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
Toper's service:
Pre-Sales Service
1. Product consulting and design service.
2. Professional production team.
3. Modernize Factory.
Sale Service
1. Quality Control Service.
2. Report, video data of the production
3. Inspection process to our customer
4. To ensure the delivery time.
After-Sales Service
1. Engineer Technical support.
2. Regular spot visit.
Last, besides decanter centrifuge, also we have various centrifuge, like SS/PS centrifuge, SD/PSD centrifuge, SGZ/PGZ centrifuge, tubular centrifuge, disc centrifuge and so on, any need also you can write to me.
