Granite Cutting Wastewater Dewatering Hydraulic Cylinder Pressing Industrial Filter Press

Granite Cutting Wastewater Dewatering Hydraulic Cylinder Pressing Industrial Filter Press





Industrial filter press can be divided into plate and frame type and chamber type. it is one kind of intermittent filter equipment. It is used for solid-liquid separation of various suspensending liquid. Filter plate are pressed by pressing system, and then suspension is pumped into the filter chamber. solid particles and liquid is separated through gilter cloth. This automatic fitler press is simple in structure, but in good separation effects. conventient in use, and widely used in the below industries:



1. Chemicals Industry Dewatering - Pigments, Organic Polymers, Silica Gel, Organic Dyes, Carbon Fines, Brine Sludge, Ethanol Slops, Phosphoric Acid, Explosives Wastes, Paint Sludge, Latex, Pesticide Wastes.

2. Electronics Industry Dewatering - Metal Hydroxide Sludge, R.O. Sludge.

3. Food Industry Dewatering - Brewery Mash, Sugar Carbonation Sludge, Wine Lees, Yeast, Apple Juice Polishing, Meat Packaging Wastes, Scrap Candy, Palm Oil.

4. Hazardous Waste Remediation - Soil Washing, Landfill Leachate, Heavy Metals Precipitation, Metals, Metalworking, Transportation Industries Dewatering - Steel Rolling Mill Waste, Foundry Sludge, Plating Wastes, Paint Spray Booth Waste, Oily Waste.

5. Mining Industry Dewatering - Titanium Dioxide, Clay, Copper, Zinc, Lead, Gold , Mineral Tailings, Coal Tailings, Acid Mine Drainage, Ready Mix Washout.

6. Municipal Waste Dewatering - Primary, Secondary Raw and Digested Sludge, Teritary Lime Sludge.

7. Pulp & Paper Filtration - Recausticizing Wastes, Biological Waste Treatment Sludge, Secondary Fiber, De-inking Waste Recovery, granite or other ores cutting waste water.

8. Oil & Petrochemical Recovery - Drilling & Completion Fluids, Slop Oil Recovery.

9. Pharmaceuticals, Toiletries, Cosmetics Filtration- Biological Treatment Sludge.

10. Power Industry Dewatering - Cooling Tower Sludge, Scrubber Sludge, Fly Ash, Coal Pile Runoff.

11. Water Supply Dewatering - Alum, Ferric, Polymer and Softening Sludge, Dy Wash Suspension Filtration.

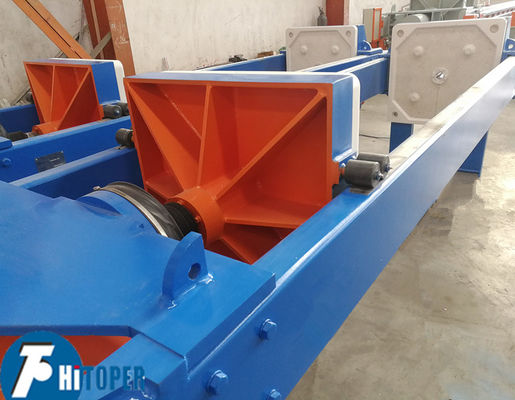

Environmentally Friendly Industrial Filter Press For Granite Cutting Wastewater Dewatering consists of beam, filte plate, hydraulic system(hydraulic unit), filter cloths, control cabinet.



1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance. here with honey used, to satisfy food industry used we can covered with the beam with stainless steel.

2. Filter plate,material is glass fiber polypropylene with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength. also with the glass fiber poplypropylene material, it can bear about 1.5Mpa pressure, which common filter press material of polypropylene is about 0.6Mpa.

3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.

4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection

5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.





Technical parameter:



Type	Filter area (m2)	Filter plate size (mm)	Filter cake thickness (mm)	Filter chamber volume (L)	Filter plate number (PCS)	Filtrating pressure (MPa)	Motor power (KW)	Weight (Kg)	Dimension (mm) (L×W×H)
XY4/450-30U	4	450×450	30	60	9	0.6	2.2	860	1950×700×900
XY6/450-30U	6			91	14			910	2200×700×900
XY8/450-30U	8			121	19			960	2450×700×900
XY10/450-30U	10			151	24			1010	2700×700×900
XY12/450-30U	12			182	29			1060	2950×700×900
XY15/450-30U	15			225	36			1130	3300×700×900
XY16/450-30U	16			243	39			1160	3450×700×900
XY15/630-30U	15	630×630		226	18			1725	2640×900×1100
XY20/630-30U	20			297	24			1993	3940×900×1100
XY30/630-30U	30			452	37			2360	3590×900×1100
XY40/630-30U	40			595	49			2788	4300×900×1100
XY30/800-30U	30	800×800		460	23			2170	3700×1400×1300
XY40/800-30U	40			595	30			2450	4300×1400×1300
XY50/800-30U	50			748	38			2700	4840×1400×1300
XY60/800-30U	60			902	46			2980	5440×1400×1300
XY70/800-30U	70			1056	54			3250	6040×1400×1300
XY30/870-30U	30	870×870		460	23			2580	3180×1200×1300
XY40/870-30U	40			595	30			2925	3570×1200×1300
XY50/870-30U	50			748	38			3318	4110×1200×1300
XY60/870-30U	60			902	46			3712	4550×1200×1300
XY70/870-30U	70			1056	54			4106	4990×1200×1300
XY80/870-30U	80			1210	62			4561	5430×1200×1300





About our company:



Our Zhengzhou Toper company is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. from the year 2006, we have exported to more than 100 countries, and accuralated lots of practice experience. so we can give you our best products advise and after-sales service.

Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!





All of our products as below:



1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB, SB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter plate

29. Filter cloth

30. Vacuum disc filter
