| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XQ3/320-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 500 sets per month for this industrial filter press |
| Filtration Area: | 3m2 | Chamber And Membrane Plate Dimension: | 320*320mm |
|---|---|---|---|
| Filtration Chamber Volume: | 46L | Chamber And Membrane All Number: | 14pcs |
| Filtrating Pressure: | 0.6Mpa | Cake Discharge Type: | Manually |
| Filter Medium: | Filter Cloth | Condition: | New |
| Function: | Solid-liquid Separation | ||
| Highlight: | filter presses for sludge treatment,filter press machine |
||

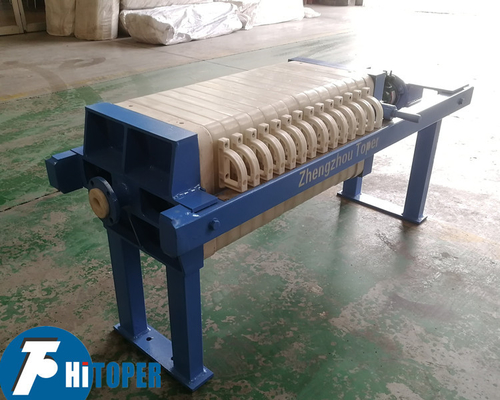

3m2 Small Jack Screw Manual Compress Industrial Filter Press Equipment Used In Smelt Field
This Manual operation/jack screw filter press is widely used in oil, chemical industry, dye, metallurgy, pharmacy, food, paper making and sewage treatment, and other solid-liquid separation fields
1. A screw jack as the pressing device, don’t need power.
2. Filter area ranges from 1m2 to 40m2, smaller than hydraulic or automatic filter press, better for beginner start production one.
3. Chamber type and plate & frame type for your choosing.

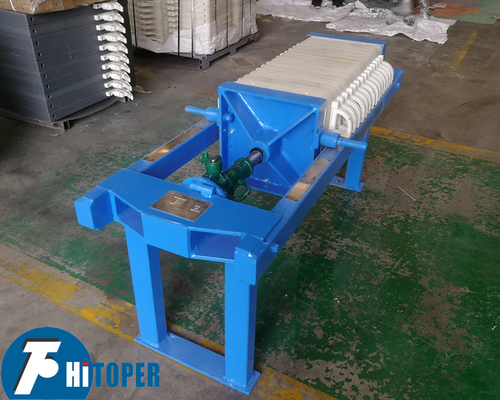

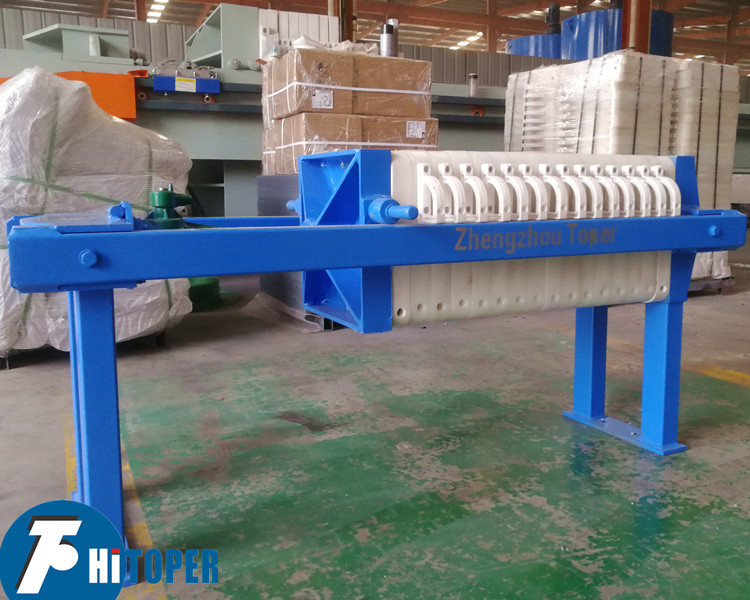

This Manual operation/jack screw filter press is the simplest type one, it consists of screw jack, beam, filter plate and filter cloth.
Operation process
1. Press. Sort filter cloth to be flat and no folding, then put the strength adding rod into the jack of screw jack. Adjust the direction valve, rotate the screw jack in clockwise, until one man’s strength is use up.
2. Return. Put the strength adding rod into the jack of screw jack, adjust the direction valve, rotate out the screw jack in counterclockwise.
3. In the process of press or return, if the slippage situation comes out, it shows your direction valve’s direction is wrong. Change to another direction is ok.
4. The press strength is ok with one man’s strength. If there is leakage, add the press strength.
5. After the filtration process, return the head plate, pull the filter plates one by one to discharge the cake, then sort the filter plate and cloth, to start another cycle.
Basic technical data of our jack filter press:
| Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (PCS) | Filtrating pressure(MPa) | Weight (kg) |
Dimensions (mm) (L×W×H) |
| XQ1/320-30U | 1 | 320 x 320 | 30 | 15 | 4 | 0.6 | 490 | 1070×570×660 |
| XQ2/320-30U | 2 | 31 | 9 | 528 | 1295×570×660 | |||
| XQ3/320-30U | 3 | 46 | 14 | 550 | 1520×570×660 | |||
| XQ4/450-30U | 4 | 450 x 450 | 60 | 9 | 0.6 | 780 | 1630×800×900 | |
| XQ6/450-30U | 6 | 91 | 14 | 830 | 1880×800×900 | |||
| XQ8/450-30U | 8 | 121 | 19 | 880 | 2130×800×900 | |||
| XQ10/450-30U | 10 | 151 | 24 | 930 | 2380×800×900 | |||
| XQ12/450-30U | 12 | 182 | 29 | 980 | 2630×800×900 | |||
| XQ15/450-30U | 15 | 225 | 36 | 1030 | 2980×800×900 | |||
| XQ16/450-30U | 16 | 243 | 39 | 1050 | 3130×800×900 | |||
| XQ15/630-30U | 15 | 630 x 630 | 226 | 18 | 0.6 | 1257 | 2370×1080×1060 | |
| XQ20/630-30U | 20 | 297 | 24 | 1347 | 2670×1080×1060 | |||
| XQ30/630-30U | 30 | 452 | 37 | 1693 | 3320×1080×1060 | |||
| XQ40/630-30U | 40 | 595 | 49 | 2193 | 4020×1080×1060 |
