Simple Laboratory Membrane Filter Press System For Solid Liquid Separation

Manual Hydraulic Operation Lab Scale Filter Press Equipment For Solid Liquid Separation

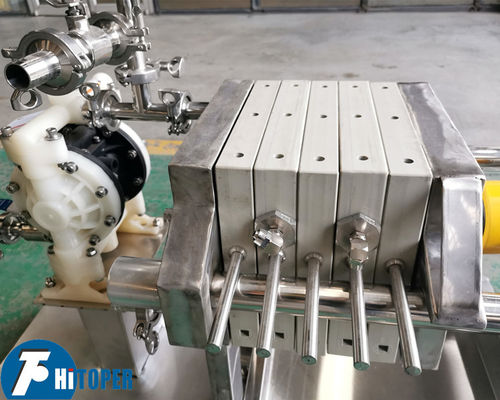

This laboratory membrane filter press system includes, manual cylinders, pressure gauges, hydraulic jacks, diaphragm pumps, pipes, valves, accessory tray, platform, etc.



This small laboratory membrane filter press system is simple, resistant to acid and alkali, corrosion resistant, temperature 70 degrees, a variety of materials can be achieved filter - washing - filtration, laboratory and amplification production to obtain all kinds of data necessary Filtration equipment, the advantages of diaphragm pressing is complete filtration, solid-liquid separation completely, the filtered solids moisture content is low, high efficiency, the maximum out of the liquid rate and the minimum moisture content of solid material is an alternative to other filter equipment.





Advantage:



1. shorten the filter operation time.

2. with a very short time to complete this process, greatly improve the production efficiency.

3. save the power consumption of the operation, in the late filtration, the flow of small, high pressure.

4. the diaphragm press function, in a very short period of time to complete this process, saving power consumption.

5. to enhance the mud cake dryness, reduce the rate of mud cake, the diaphragm press the static filter after the end of the filter cake for the second press, so that the structure of the filter cake rearrangement, increased density, which replaced a part of the water, degree.

6. strong corrosion resistance, basically applicable to all solid-liquid separation operations.

7. diaphragm filter plate with anti-fatigue, anti-aging, sealing performance and so on.





Our standard membrane filter press technical parameters:



Type	Filter area(m2)	Filter plate size(mm)	Filter cake thickness(mm)	Filter chamber volume(L)	Filter plate number (pcs)	Filtrating pressure (Mpa)	Motor power (kw)	Weight (kg)	Dimension (L×W×H)(mm)
XG30/870-30U	30	870×870	30	427	23	0.6	4.0	2680	3490×1250×1300
XG40/870-30U	40			534	29			3050	3880×1250×1300
XG50/870-30U	50			676	37			3465	4400×1250×1300
XG60/870-30U	60			818	45			4003	4920×1250×1300
XG70/870-30U	70			960	53			4584	5240×1250×1300
XG80/870-30U	80			1103	61			5082	5760×1250×1300
XG50/1000-30U	50	1000×1000		665	27	0.6	4.0	4352	4270×1500×1400
XG60/1000-30U	60			808	33			4480	4770×1500×1400
XG70/1000-30U	70			950	39			5263	5130×1500×1400
XG80/1000-30U	80			1093	45			5719	5560×1500×1400
XG100/1000-30U	100			1378	57			6555	6410×1500×1400
XG120/1000-30U	120			1663	69			7466	7260×1500×1400



Type	Filter area (m2)	Filter plate size(mm)	Filter cake thickness (mm)	Filter chamber volume (L)	Filter plate number (pcs)	Filtrating pressure (Mpa)	Motor power (kw)	Weight (kg)	Dimension (L×W×H) (mm)
XGZY80/1250-35U	80	1250×1250	35	1364	29	0.6	4.0	10900	4830×1800×1600
XGZY100/1250-35U	100			1680	37			11750	5440×1800×1600
XGZY120/1250-35U	120			2092	45			12600	6060×1800×1600
XGZY150/1250-35U	150			2547	55			13620	6820×1800×1600
XGZY160/1250-35U	160			2729	59			14470	7130×1800×1600
XGZY200/1250-35U	200			3457	73			15320	8200×1800×1600
XGZY240/1250-35U	240			4093	89			16170	9420×1800×1600
XGZY250/1250-35U	250			4276	91			17020	9570×1800×1600
XGZY200/1500-35U	200	1500×1500		3922	49		7.5	26120	7140×2200×2000
XGZY250/1500-35U	250			4463	61			26930	7730×2200×2000
XGZY300/1500-35U	300			5274	73			28160	8720×2000×1820
XGZY350/1500-35U	350			6221	85			29600	10110×2000×1820
XGZY400/1500-35U	400			7032	99			31500	11260×2000×1820
XGZY450/1500-35U	450			7844	111			33400	12250×2000×1820
XGZY500/1500-35U	500			8791	123			33380	13240×2000×1820
XGZY600/2000-40U	600	2000×2000	40	12000	85			54164	13030×3520×2500
XGZY700/2000-40U	700			14000	99			58300	14390×3000×2500
XGZY800/2000-40U	800			16000	107			624460	15770×3000×2500
XGZY900/2000-40U	900			18000	127			66620	17150×3000×2500
XGZY1000/2000-40U	1000			20000	141			70780	18530×3000×2500
