Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | XG1/320-30U |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 20-30 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 500 sets per month for this membrane filter press |
Filter Area: | 1m2 | Filter Plate Size: | 250*250mm |
---|---|---|---|
Filter Chamber Volume: | 15L | Filter Number: | 11pcs |
Filtrating Pressure: | 6Bar | Motor Power: | 2.2kw |
Filter Plate: | Chamber Filter Plate | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
Function: | Separation,concentration,extract,refine,clarify Etc. | Pressing Type: | Manual Hydraulic Compress |
Feeding Method: | Pump Feeding | ||
Highlight: | sludge dewatering equipment,sludge filter press |
Manual Hydraulic Operation Lab Scale Filter Press Equipment For Solid Liquid Separation

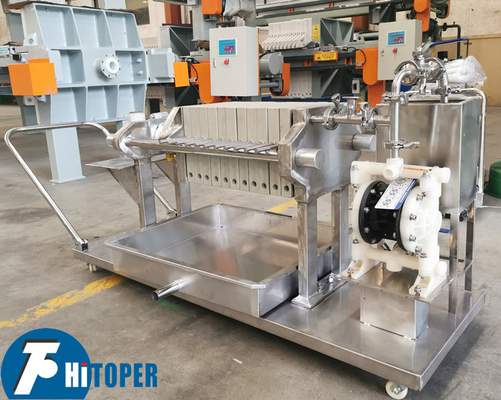

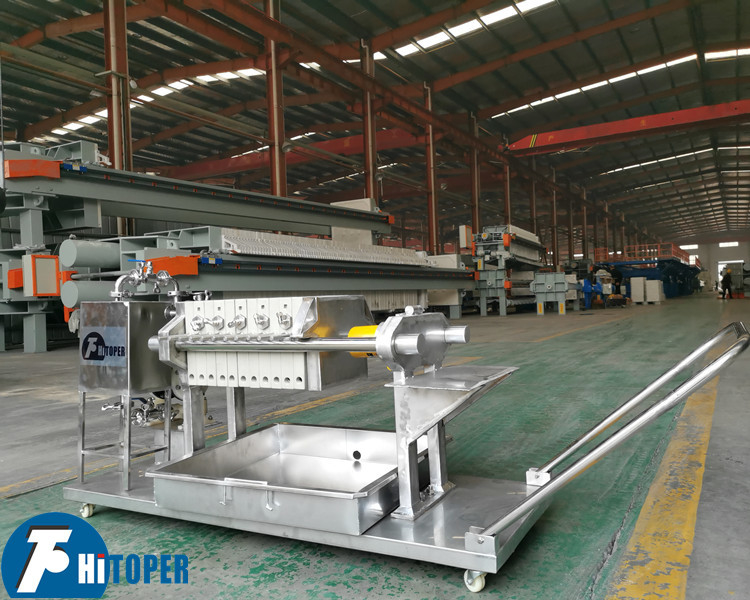

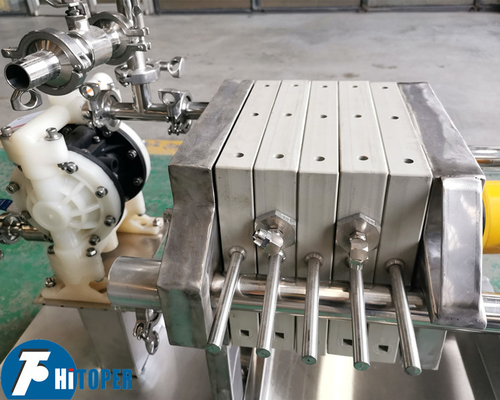

This laboratory membrane filter press system includes, manual cylinders, pressure gauges, hydraulic jacks, diaphragm pumps, pipes, valves, accessory tray, platform, etc.
This small laboratory membrane filter press system is simple, resistant to acid and alkali, corrosion resistant, temperature 70 degrees, a variety of materials can be achieved filter - washing - filtration, laboratory and amplification production to obtain all kinds of data necessary Filtration equipment, the advantages of diaphragm pressing is complete filtration, solid-liquid separation completely, the filtered solids moisture content is low, high efficiency, the maximum out of the liquid rate and the minimum moisture content of solid material is an alternative to other filter equipment.
Advantage:
1. shorten the filter operation time.
2. with a very short time to complete this process, greatly improve the production efficiency.
3. save the power consumption of the operation, in the late filtration, the flow of small, high pressure.
4. the diaphragm press function, in a very short period of time to complete this process, saving power consumption.
5. to enhance the mud cake dryness, reduce the rate of mud cake, the diaphragm press the static filter after the end of the filter cake for the second press, so that the structure of the filter cake rearrangement, increased density, which replaced a part of the water, degree.
6. strong corrosion resistance, basically applicable to all solid-liquid separation operations.
7. diaphragm filter plate with anti-fatigue, anti-aging, sealing performance and so on.
Our standard membrane filter press technical parameters:
Type |
Filter area(m2) | Filter plate size(mm) | Filter cake thickness(mm) | Filter chamber volume(L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H)(mm) |
XG30/870-30U | 30 | 870×870 | 30 | 427 | 23 | 0.6 | 4.0 | 2680 | 3490×1250×1300 |
XG40/870-30U | 40 | 534 | 29 | 3050 | 3880×1250×1300 | ||||
XG50/870-30U | 50 | 676 | 37 | 3465 | 4400×1250×1300 | ||||
XG60/870-30U | 60 | 818 | 45 | 4003 | 4920×1250×1300 | ||||
XG70/870-30U | 70 | 960 | 53 | 4584 | 5240×1250×1300 | ||||
XG80/870-30U | 80 | 1103 | 61 | 5082 | 5760×1250×1300 | ||||
XG50/1000-30U | 50 | 1000×1000 | 665 | 27 | 0.6 | 4.0 | 4352 | 4270×1500×1400 | |
XG60/1000-30U | 60 | 808 | 33 | 4480 | 4770×1500×1400 | ||||
XG70/1000-30U | 70 | 950 | 39 | 5263 | 5130×1500×1400 | ||||
XG80/1000-30U | 80 | 1093 | 45 | 5719 | 5560×1500×1400 | ||||
XG100/1000-30U | 100 | 1378 | 57 | 6555 | 6410×1500×1400 | ||||
XG120/1000-30U | 120 | 1663 | 69 | 7466 | 7260×1500×1400 |
Type |
Filter area (m2) |
Filter plate size(mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H) (mm) |
XGZY80/1250-35U | 80 | 1250×1250 | 35 | 1364 | 29 | 0.6 | 4.0 | 10900 | 4830×1800×1600 |
XGZY100/1250-35U | 100 | 1680 | 37 | 11750 | 5440×1800×1600 | ||||
XGZY120/1250-35U | 120 | 2092 | 45 | 12600 | 6060×1800×1600 | ||||
XGZY150/1250-35U | 150 | 2547 | 55 | 13620 | 6820×1800×1600 | ||||
XGZY160/1250-35U | 160 | 2729 | 59 | 14470 | 7130×1800×1600 | ||||
XGZY200/1250-35U | 200 | 3457 | 73 | 15320 | 8200×1800×1600 | ||||
XGZY240/1250-35U | 240 | 4093 | 89 | 16170 | 9420×1800×1600 | ||||
XGZY250/1250-35U | 250 | 4276 | 91 | 17020 | 9570×1800×1600 | ||||
XGZY200/1500-35U | 200 | 1500×1500 | 3922 | 49 | 7.5 | 26120 | 7140×2200×2000 | ||
XGZY250/1500-35U | 250 | 4463 | 61 | 26930 | 7730×2200×2000 | ||||
XGZY300/1500-35U | 300 | 5274 | 73 | 28160 | 8720×2000×1820 | ||||
XGZY350/1500-35U | 350 | 6221 | 85 | 29600 | 10110×2000×1820 | ||||
XGZY400/1500-35U | 400 | 7032 | 99 | 31500 | 11260×2000×1820 | ||||
XGZY450/1500-35U | 450 | 7844 | 111 | 33400 | 12250×2000×1820 | ||||
XGZY500/1500-35U | 500 | 8791 | 123 | 33380 | 13240×2000×1820 | ||||
XGZY600/2000-40U | 600 | 2000×2000 | 40 | 12000 | 85 | 54164 | 13030×3520×2500 | ||
XGZY700/2000-40U | 700 | 14000 | 99 | 58300 | 14390×3000×2500 | ||||
XGZY800/2000-40U | 800 | 16000 | 107 | 624460 | 15770×3000×2500 | ||||
XGZY900/2000-40U | 900 | 18000 | 127 | 66620 | 17150×3000×2500 | ||||
XGZY1000/2000-40U | 1000 | 20000 | 141 | 70780 | 18530×3000×2500 |
About our company:
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type. All of our products as below:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter pres
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter plate
29. Filter cloth
30. Vacuum disc filter
How to order filter press
1. According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XZ30/870-30U, xz100/1000-30U or others.
2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.
3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
