Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | XGY10/870-30U |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 20-30 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 500 sets per month for this membrane filter press |
Filter Area: | 10m2 | Filter Plate Size: | 870*870mm |
---|---|---|---|
Filter Chamber Volume: | 150L | Filter Number: | 9pcs |
Filtrating Pressure: | 0.6Mpa | Motor Power: | 4.0kw |
Nice Function: | Second Squeeze Function To Give A Lower Cake Moisture. | Color: | As You Need. |
Voltage: | 380V/220V /400-450V/Customized | Function: | Dehydration,separaiton And Concentration |
Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. | Filter Medium: | Filter Cloth |
Feeding Type: | Center Feeding | Filter Cake Discharge Method: | Manual |
Liquid Discharge Type: | Open Flow Or Close Flow | Certificate: | CE |
Conditon: | New | ||
Highlight: | sludge filter press,filter press machine |

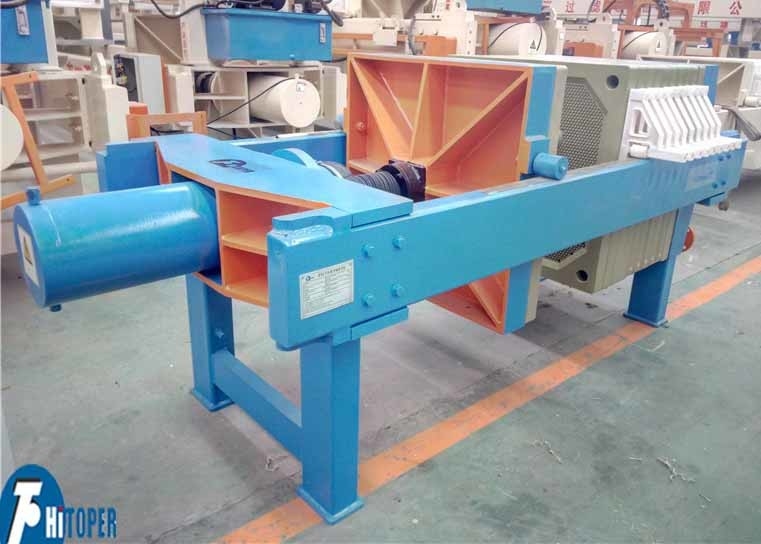

Diaphragm Plate Industrial Filter Press Wastewater Treatment Equipment
Technical parameters of this membrane fitler press model XGY10/870-30U:(customized model)
1. Filter area: 10m2
2. Filter plate size: 870*870mm
3. Filter cake thickness: 30mm
4. Filter chamber volume: 150L
5. Filter plate number: 9pcs
6. Filtration pressure: 0.6Mpa

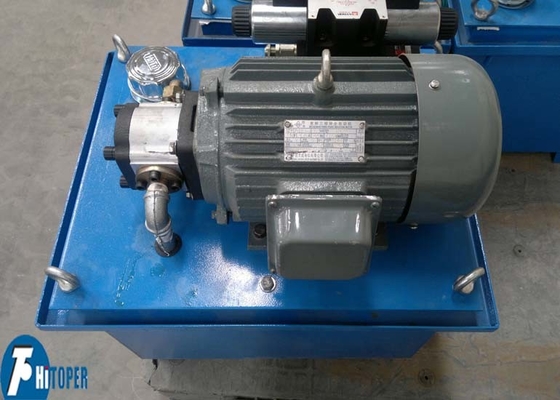

7. Motor power: 4kw
8. Weight: 1500kg
9. Dimension: 2080*1250*1300mm
Our company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. And membrance filter press has received a very good reputation. and they are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
PP plate membrane filter press is achieved by compressed air or water twice press to further reduce the moisture content of the cake, the cake moisture content for use on the strict requirements of the situation, and the need for drying the cake through the membrane filter press secondary crushing machine to minimize cake moisture content, thereby reducing energy consumption.
PP plate membrane filter press consists of membrane plate and filter chamber made of ordered filter plates. The slurry materials are sent to filter chamber by the pressure of feeding pump and then go into filtrating media(filter cloth) to separate solid and liquid in slurry material.When solid in slurry material becomes cake shape, air is sent to membrane to fully squeeze the solid to reduce moisture content. If users have high requirement about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the need.
Membrane plates are constructed in the same basic method as the recessed chamber plates. The drainage surface of the plates, however, are flexible. After filtration, when the chambers are filled with solids and while the filter press is stilled, air pressure is exerted behind the flexible drainage of the plate. The membrane in turn inflates to exert pressure on the filter cake which have been formed. The cakes are then squeezed to reduce the amount of remaining moisture prior to cake discharge. however, can be stopped at the most efficient point in its cycle. By applying pressure to the membrane built into the filter plate, the cake is squeezed to achieve final solids content in a significantly reduced cycle time.
Application of this membrane fitler press,
Effluent treatment plants: Textile, Paper, Leather, Jute, Sewages, Industrial and municipal waste water.
Ceramics: Clay, Porcelain, Fine earth, Marble and Granite.
Metallurgy: Electroplating and Electro Polishing, Steel Mill Waste, Nickel, Copper, Zinc Lead, Silver.
Pharma Industries: Antibiotic, Syrup, Intermediates and Bulk Drugs.
Chemical Industries: Basic Chemicals, Organic and Inorganic, Resins
Starch, Enzymes, Pesticides, Activated Clay, Phosphoric compounds, Marine Chemicals.
Dye Stuffs: Pigments, Dyes, Intermediates.
Food Industries: Vegetable Oils, Cane Juice, Food Colors Soups, Distilleries, Dairies and Hotels.
All technical data of our membrane filter press:
Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thicknes s(mm) |
Filter chamber volume(L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H)(mm) |
XG30/870-30U | 30 | 870×870 | 30 | 427 | 23 | 0.6 | 4.0 | 2680 | 3490×1250×1300 |
XG40/870-30U | 40 | 534 | 29 | 3050 | 3880×1250×1300 | ||||
XG50/870-30U | 50 | 676 | 37 | 3465 | 4400×1250×1300 | ||||
XG60/870-30U | 60 | 818 | 45 | 4003 | 4920×1250×1300 | ||||
XG70/870-30U | 70 | 960 | 53 | 4584 | 5240×1250×1300 | ||||
XG80/870-30U | 80 | 1103 | 61 | 5082 | 5760×1250×1300 | ||||
XG50/1000-30U | 50 | 1000×1000 | 665 | 27 | 0.6 | 4.0 | 4352 | 4270×1500×1400 | |
XG60/1000-30U | 60 | 808 | 33 | 4480 | 4770×1500×1400 | ||||
XG70/1000-30U | 70 | 950 | 39 | 5263 | 5130×1500×1400 | ||||
XG80/1000-30U | 80 | 1093 | 45 | 5719 | 5560×1500×1400 | ||||
XG100/1000-30U | 100 | 1378 | 57 | 6555 | 6410×1500×1400 | ||||
XG120/1000-30U | 120 | 1663 | 69 | 7466 | 7260×1500×1400 |
Type |
Filter area (m2) |
Filter plate size(mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (pcs) |
Filtrating pressure (Mpa) |
Motor power (kw) |
Weight (kg) |
Dimension (L×W×H) (mm) |
XGZY80/1250-35U | 80 | 1250×1250 | 35 | 1364 | 29 | 0.6 | 4.0 | 10900 | 4830×1800×1600 |
XGZY100/1250-35U | 100 | 1680 | 37 | 11750 | 5440×1800×1600 | ||||
XGZY120/1250-35U | 120 | 2092 | 45 | 12600 | 6060×1800×1600 | ||||
XGZY150/1250-35U | 150 | 2547 | 55 | 13620 | 6820×1800×1600 | ||||
XGZY160/1250-35U | 160 | 2729 | 59 | 14470 | 7130×1800×1600 | ||||
XGZY200/1250-35U | 200 | 3457 | 73 | 15320 | 8200×1800×1600 | ||||
XGZY240/1250-35U | 240 | 4093 | 89 | 16170 | 9420×1800×1600 | ||||
XGZY250/1250-35U | 250 | 4276 | 91 | 17020 | 9570×1800×1600 | ||||
XGZY200/1500-35U | 200 | 1500×1500 | 3922 | 49 | 7.5 | 26120 | 7140×2200×2000 | ||
XGZY250/1500-35U | 250 | 4463 | 61 | 26930 | 7730×2200×2000 | ||||
XGZY300/1500-35U | 300 | 5274 | 73 | 28160 | 8720×2000×1820 | ||||
XGZY350/1500-35U | 350 | 6221 | 85 | 29600 | 10110×2000×1820 | ||||
XGZY400/1500-35U | 400 | 7032 | 99 | 31500 | 11260×2000×1820 | ||||
XGZY450/1500-35U | 450 | 7844 | 111 | 33400 | 12250×2000×1820 | ||||
XGZY500/1500-35U | 500 | 8791 | 123 | 33380 | 13240×2000×1820 | ||||
XGZY600/2000-40U | 600 | 2000×2000 | 40 | 12000 | 85 | 54164 | 13030×3520×2500 | ||
XGZY700/2000-40U | 700 | 14000 | 99 | 58300 | 14390×3000×2500 | ||||
XGZY800/2000-40U | 800 | 16000 | 107 | 624460 | 15770×3000×2500 | ||||
XGZY900/2000-40U | 900 | 18000 | 127 | 66620 | 17150×3000×2500 | ||||
XGZY1000/2000-40U | 1000 | 20000 | 141 | 70780 | 18530×3000×2500 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
